IEC Three-Phase Electric Motor Tefc (IP54) - Cast Iron Frame

Name: IEC Three-Phase Electric Motor Tefc (IP54) - Cast Iron Frame
Brand: all-electronics-online.com
SKU: 700519172
Availability: InStock
Rating: 4.6 (44 reviews)

Price:	US $ 95-97/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Yinda
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	0.12kw- 200kw
Voltage:	230/460V (60Hz); 380-415V (50Hz)
Frame Material:	Aluminum (63 up to 132m), Cast Iron (80 up to 315)
Mounting Position:	B3
Cooling Method:	IC411
Protection Class:	IP54
Insulation Grade:	F
Continuous Working Duty:	S1
Winding Protections:	PTC, PT100 and Kty84-130 as Option
Warranty:	12 Months
Application:	Power Tools
Operating Speed:	Low Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Certification:	CE
Brand:	Weg

Product Description

General purpose Electric Motor
Three-Phase : IEC Tru-Metric - TEFC (IP55) - Cast Iron Frame

Applications:

Blowers
Compressors
Pumps
Conveyor
Textiles
Marine duty

Standard Features:

Three-phase, 60/50Hz
Voltage: 230/460V (60Hz); 380-415V (50Hz)
Frame Material: Aluminum (63 up to 132M), Cast Iron (80 up to 315),
Squirrel cage rotor / Aluminum die cast
Totally Enclosed Fan Cooled TEFC (IP55)
Oil Seal on both end shields
Class "F" insulation
Service Factor: 1.15 in 60Hz, 1.0 in 50Hz
Temperature rise: Class "B" (80ºC)
Continuous duty (S1)
104ºF (40ºC) ambient temperature
Altitude: 3300 ft (1000 m)
Color: Gentian blue (RAL 5010)

Optional Features:

Flanges
Taconite labyrinth seal
Cable glands
Double shaft end
Thermistors
Special painting

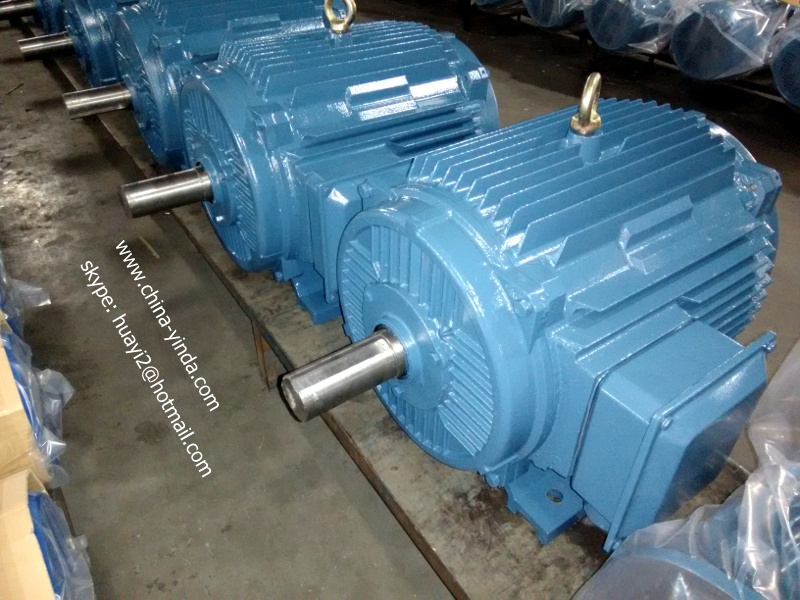

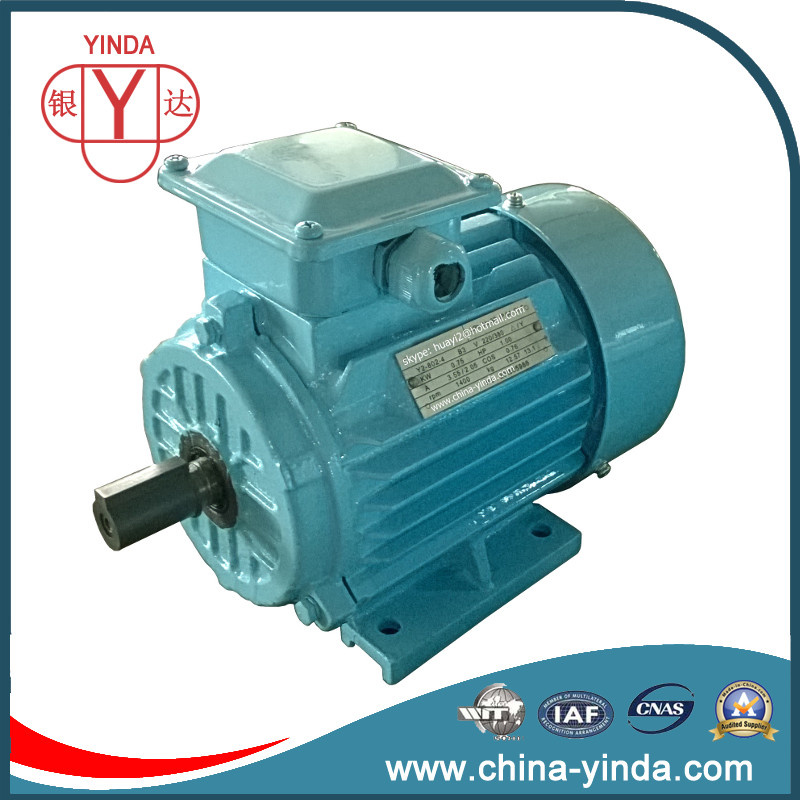

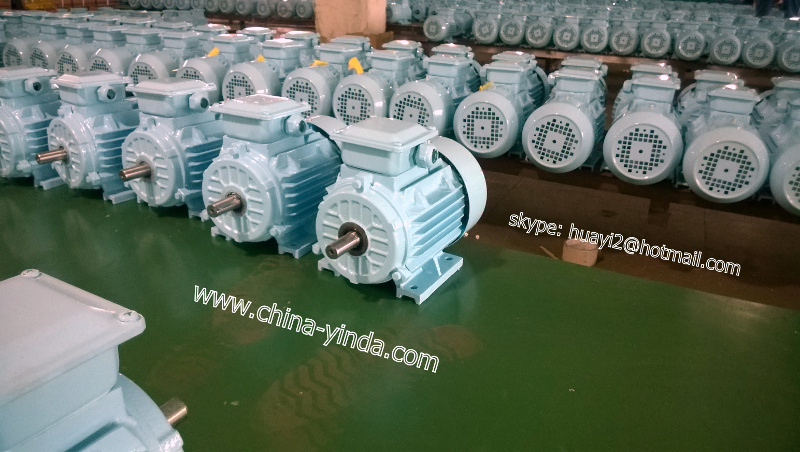

Photos:

Technical Data

Type	Rated Output		Voltage	Frequency	Speed	Efficiency	Power factor	In	Is	Ts	Tmax	Nosie
Type	Kw	HP	V	Hz	r/min	%	CosΦ	A	In	Tn	Tn	Lw dB(A)
631-2	0.18	0.3	380	50	2800	65	0.8	0.5	6	2.2	2.2	61
632-2	0.25	0.3	380	50	2800	68	0.81	0.7	6	2.2	2.2	61
711-2	0.37	0.5	380	50	2800	70	0.81	1	6	2.2	2.2	64
712-2	0.55	0.8	380	50	2800	73	0.82	1.4	6	2.2	2.3	64
801-2	0.75	1	380	50	2825	75	0.83	1.8	6	2.2	2.3	67
802-2	1.1	1.5	380	50	2825	76.2	0.84	2.6	7	2.2	2.3	67
90S-2	1.5	2	380	50	2840	78.5	0.84	3.34	7	2.2	2.3	72
90L-2	2.2	3	380	50	2840	81	0.85	4.69	7	2.2	2.3	72
100L-2	3	4	380	50	2880	82.6	0.87	6.14	8	2.2	2.3	76
112M-2	4	5.5	380	50	2890	84.2	0.88	7.83	8	2.2	2.3	77
132S1-2	5.5	7.5	380	50	2900	85.7	0.88	10.7	8	2.2	2.3	80
132S2-2	7.5	10	380	50	2900	87	0.88	14.2	8	2.2	2.3	80
160M1-2	11	15	380	50	2930	88.4	0.89	20.9	8	2.2	2.3	86
160M-2	15	20	380	50	2930	89.4	0.89	27.9	8	2.2	2.3	86
160L-2	18.5	25	380	50	2930	90	0.9	33.9	8	2.2	2.3	86
180M-2	22	30	380	50	2940	90.5	0.9	40.5	8	2	2.3	89
200L1-2	30	40	380	50	2950	91.4	0.9	54.8	8	2	2.3	92
200L2-2	37	50	380	50	2950	92	0.9	66.6	8	2	2.3	92
225M-2	45	60	380	50	2970	92.5	0.9	81	8	2	2.3	92
250M-2	55	75	380	50	2970	93	0.9	99.6	8	2	2.3	93
280S-2	75	100	380	50	2970	93.6	0.9	133	8	2	2.3	94
280M-2	90	120	380	50	2970	93.9	0.91	158	8	2	2.3	94
315S-2	110	150	380	50	2980	94	0.91	195	7	1.8	2.2	96
315M-2	132	180	380	50	2980	94.5	0.91	232	7	1.8	2.2	96
315L1-2	160	220	380	50	2980	94.6	0.92	280	7	1.8	2.2	99
315L2-2	200	270	380	50	2980	94.8	0.92	348	7	1.8	2.2	99
631-4	0.12	0.2	380	50	1400	57	0.72	0.4	4	2.1	2.2	52
632-4	0.18	0.3	380	50	1400	60	0.73	0.6	4	2.1	2.2	52
711-4	0.25	0.3	380	50	1400	65	0.74	0.8	5	2.1	2.2	55
712-4	0.37	0.5	380	50	1400	67	0.75	1.1	5	2.1	2.2	55
801-4	0.55	0.8	380	50	1390	71	0.75	1.6	5	2.4	2.3	58
802-4	0.75	1	380	50	1390	73	0.76	2	6	2.3	2.3	58
90S-4	1.1	1.5	380	50	1400	76.2	0.77	2.8	6	2.3	2.3	61
90L-4	1.5	2	380	50	1400	78.5	0.79	3.65	6	2.3	2.3	61
100L1-4	2.2	3	380	50	1420	81	0.81	5.05	7	2.3	2.3	64
100L2-4	3	4	380	50	1420	82.6	0.82	6.64	7	2.3	2.3	64
112M-4	4	5.5	380	50	1440	84.2	0.82	8.62	7	2.3	2.3	65
132S-4	5.5	7.5	380	50	1440	85.7	0.83	11.5	7	2.3	2.3	71
132M-4	7.5	10	380	50	1440	87	0.84	15.3	7	2.3	2.3	71
160M-4	11	15	380	50	1460	88.4	0.84	22.2	7	2.2	2.3	75
160L-4	15	20	380	50	1460	89.4	0.85	29.8	8	2.2	2.3	75
180M-4	18.5	25	380	50	1470	90	0.86	36.1	8	2.2	2.3	76
180L-4	22	30	380	50	1470	90.5	0.86	42.6	8	2.2	2.3	76
200L-4	30	40	380	50	1480	91.4	0.86	57.2	7	2.2	2.3	79
225S-4	37	50	380	50	1480	92	0.87	69.6	7	2.2	2.3	81
225M-4	45	60	380	50	1480	92.5	0.87	84	7	2.2	2.3	81
250M-4	55	75	380	50	1480	93	0.87	103	7	2.2	2.3	83
280S-4	75	100	380	50	1480	93.6	0.87	138	7	2.2	2.3	86
280M-4	90	120	380	50	1485	93.9	0.87	166	7	2.2	2.3	86
315S-4	110	150	380	50	1485	94.5	0.88	200	7	2.1	2.2	93
315M-4	132	180	380	50	1485	94.8	0.88	239	7	2.1	2.2	93
315L1-4	160	220	380	50	1485	94.9	0.89	288	7	2.1	2.2	97
315L2-4	200	270	380	50	1485	94.9	0.89	359	7	2.1	2.2	97
711-6	0.18	0.3	380	50	900	56	0.66	0.8	4	1.9	2	52
712-6	0.25	0.3	380	50	900	59	0.68	0.9	4	1.9	2	52
801-6	0.37	0.5	380	50	900	62	0.7	1.3	5	1.9	2	54
802-6	0.55	0.8	380	50	900	65	0.72	1.8	5	1.9	2.1	54
90S-6	0.75	1	380	50	910	69	0.72	2.3	6	2	2.1	57
90L-6	1.1	1.5	380	50	910	72	0.73	3.2	6	2	2.1	57
100L-6	1.5	2	380	50	940	76	0.75	3.9	6	2	2.1	61
112M-6	2.2	3	380	50	940	79	0.76	5.6	7	2	2.1	65
132S-6	3	4	380	50	960	81	0.76	7.4	7	2.1	2.1	69
132M1-6	4	5.5	380	50	960	82	0.76	9.9	7	2.1	2.1	69
132M2-6	5.5	7.5	380	50	960	84	0.77	12.9	7	2.1	2.1	69
160M-6	7.5	10	380	50	970	86	0.77	16.9	7	2	2.1	73
160L-6	11	15	380	50	970	87.5	0.78	24	7	2	2.1	73
180L-6	15	20	380	50	970	89	0.81	32	7	2	2.1	73
200L1-6	18	25	380	50	970	90	0.81	39	7	2.1	2.1	76
200L2-6	22	30	380	50	970	90	0.83	45	7	2.1	2.1	76
225M-6	30	40	380	50	980	91.5	0.84	59	7	2	2.1	76
250M-6	37	50	380	50	980	92	0.86	71	7	2.1	2.1	78
280S-6	45	60	380	50	980	92.5	0.86	86	7	2.1	2	80
280M-6	55	75	380	50	980	92.8	0.86	105	7	2.1	2	80
315S-6	75	100	380	50	980	93.5	0.86	142	7	2	2	85
315M-6	90	120	380	50	985	93.8	0.86	170	7	2	2	85
315L1-6	110	150	380	50	985	94	0.86	207	7	2	2	85
315L2-6	132	180	380	50	985	94.2	0.87	245	7	2	2	85
801-8	0.18	0.3	380	50	690	51	0.61	0.9	3	1.8	1.9	52
802-8	0.25	0.3	380	50	690	54	0.61	1.2	3	1.8	1.9	52
90S-8	0.37	0.5	380	50	690	62	0.61	1.5	4	1.8	1.9	56
90L-8	0.55	0.8	380	50	690	63	0.61	2.2	4	1.8	2	56
100L1-8	0.75	1	380	50	700	71	0.67	2.4	4	1.8	2	59
100L2-8	1.1	1.5	380	50	700	73	0.69	3.3	5	1.8	2	59
112M-8	1.5	2	380	50	700	75	0.69	4.4	5	1.8	2	61
132S-8	2.2	3	380	50	710	78	0.71	6	6	1.8	2	64
132M-8	3	4	380	50	710	79	0.73	7.9	6	1.8	2	64
160M1-8	4	5.5	380	50	720	81	0.73	10.3	6	2	2	68
160M2-8	5.5	7.5	380	50	720	83	0.74	13.6	6	2	2	68
160L-8	7.5	10	380	50	720	85.5	0.75	17.8	6	2	2	68
180L-8	11	15	380	50	720	87.5	0.76	24.9	7	2	2	70
200L-8	15	20	380	50	730	88	0.76	34	7	2	2	73
225S-8	18.5	25	380	50	730	90	0.76	41	7	1.9	2	73
225M-8	22	30	380	50	730	90.5	0.78	47	7	1.9	2	73
250M-8	30	40	380	50	730	91	0.79	63	7	1.9	2	75
280S-8	37	50	380	50	730	91.5	0.79	78	7	1.9	2	76
280M-8	45	60	380	50	740	92	0.79	94	7	1.9	2	76
315S-8	55	75	380	50	740	92.8	0.81	111	7	1.8	2	82
315M-8	75	100	380	50	740	93	0.81	151	7	1.8	2	82
315L1-8	90	120	380	50	740	93.8	0.82	178	7	1.8	2	82
315L2-8	110	150	380	50	740	94	0.82	217	6	1.8	2	82

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
