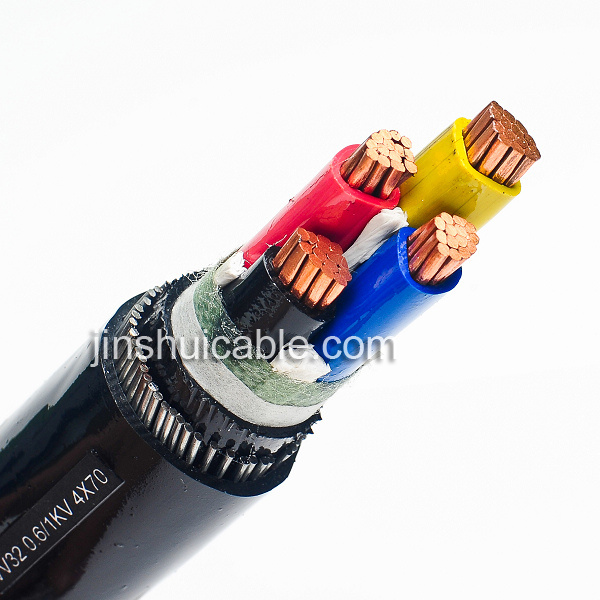

IEC Underground Multicore PVC Power Cable

IEC Underground Multicore PVC Power Cable
Price: US $ 1/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Meter
Pay Type: L/C,T/T,D/P,Western Union,Money Gram
Prod Model: VV VLV VV22 VLV22 VV32 VLV32
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Sectional Area: 1.5-800mm2
Number Of Cores: 1 - 5 Cores
Armor: Sta or Swa
Rate Voltage: 0.6/1kv
Experience: 20 Years
Application: Power Station
Voltage: Low and Medium Voltage Cable
Current: DC Cable
Insulation Material: PVC
Certification: VDE
Wire Core Material: Cooper and Aluminum
Model: VV Vlv VV22 Vlv22 VV32 Vlv32
Brand: Jinshui

Product Description

High quality--Copper/Aluminum conductor PVC Insulated PVC outer sheath Power Cable


--------Application:
This product is used for AC 35kV and below power distribution circuit, especially for the important places havin high requiremet for cables flame retardancy, like railway, tunnel, power station, petroleum, chemical industry and high building.
Description:
1.Conductor:Copper or aluminum.
2.Both armored and non-armored type power cables are available.
3.Voltage rating:0.6/1kV
4.Insulation:PVC
5.Outer sheath:PVC or PE
6.Number of cable cores:One core (Single core), two core(Double cores), three cores, our cores(Fours equal-section-area cores and one smaller section area neutral core)7.Standards:IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc.Or other special characteristics as customers request.


---------Characteristics of Cable
1.Max Long-time operating temperature of PVC insulated cable is 70° C
2.Installing temperature of cable should not be less than 0° C
3.Max short-circuit temperature is:PVC not exceed 160° C, Not more than5 Sec.
4.Permitting bending radius cable:Not less than 10 D times (D:External diameter of cable)
5.Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.


----------Name & Application
TypeDescriptionApplication
VVCopper ( Al) PVC insulation PVC sheath power cableCan be laid in indoor tunnels and pipelines, can't bear external mechanical force.
VV22Copper (Al) steel tape armored PVC insulation / sheath power cableCan be laid in indoor tunnels and pipelines, can't bear external mechanical force.
VV32Copper (Al) thin steel wire armored PVC insulation / sheath power cableCan be laid in indoor tunnels and pipelines, can't bear external mechanical force.
VV42Copper (Al) thick steel wire armored PVC insulation / sheath power cableCan be laid in indoor tunnels and pipelines, can't bear external mechanical force.
YJVCopper ( Al) XLPE insulation PVC sheath power cableCan be laid indoor, outdoor, tunnels, reinforced concrete pipelines or loose soil.Cable can't bear outer mechanical force, but can bear a certain traction force.
YJV22Copper (Al) steel tape armored XLPE insulation PVC sheath power cableLaid underground, cable be bear outer mechanical force, but should not bear a large traction force.
YJV32Copper (Al) thin steel wire armored XLPE insulation PVC sheath power cableLaid indoor, tunnel or mines.Cable can bear outer mechanical force and fairly large traction force.
YJV42Copper (Al) thick steel wire armored XLPE insulation PVC sheath power cableCan be laid in vertical section, indoor, tunnels or mines.Cable can bear outer mechanical force and very large traction force.

-----------Specification
TypeVoltageSectionCore Number
VVYJV0.6/1kV1.5-800mm21
VV22 VV32YJV22 YJV322.5-400mm2
VV42YJV4210-400mm2
VVYJV0.6/1kV1.5-400mm22
VV22 VV32YJV22 YJV322.5-400mm2
VV42YJV424-400mm2
VVYJV0.6/1kV1.5-400mm23
VV22 VV32YJV22 YJV322.5-400mm2
VV42YJV424-400mm2
VV VV22YJV0.6/1kV4-400mm24,3+1,5,
4+1, 3+2
VV32 VV42YJV22 YJV324-400mm2


-------------Top Ranking Manufacture Equipment for HV/MV/LV of Power cables from Professional Suppliers
NameTypeOriginApplication
35KV Cable production lineCCVMaillefer FinlandProduction of medium voltage insulation wire core
35KV Cable production lineCCVTROESTER GermanyProduction of medium voltage insulation wire core
110KV Cable production lineCCVTROESTER GermanyProduction of high voltage insulation wire core
500KV Cable production lineVCVMaillefer FinlandProduction of high voltage insulation wire core
500KV Cable production lineVCVTROESTER GermanyProduction of high voltage insulation wire core
35KV rubber cable  production lineCCVTROESTER GermanyProduction of medium voltage rubber cables
630 Frame type stranding machine1+6+12+18+24+30Pourtier FranceProduction for blocks of large section conductor
3600 Drum-twister for milliken conductorDPTC3600Pourtier FranceProduction for blocks of large section conductor
High voltage cable out-sheath Product LineΦ150+90Germany (Shanghai) TROESTER Machinery Co., Ltd.Production for EHV cable double sheath

Welcome your kind enquiry!


Jinshui Wire & Cable Group is located in the national class Zhengzhou high and new technology industries development zone in Zhengzhou, which is full of famous enterprises with a graceful and elegant environment. With abundant human resources, expedite transportation network, widespread scientific research institutions, sophisticated technical support and superior geographic location which is richly endowed by nature. Jinshui Wire & Cable group have subsidiary companies: Jinshui Industry and commerce Co., Ltd., Huibang wire and cable Co., Ltd and a horizontally combined manufacture plant, namely Zhengzhou Cable Factory. The group mainly engage in the export of wire and cable including cable accessories. Through eight years' unremitting effort and endeavors, we have achieved sound cooperation and widely compliments from the clients all over the world by superior quality, reasonable price and sincere services.

Jinshui Wire & Cable Group is also a key company of high and new technology industry on state level in China. With strong capabilities of R&D and innovation Jinshui Wire & Cable Group has owned a number of exclusive essential manufacture technologies and has passed the certification of ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Heath Management System, ISO10012 Measurement Management System and others from China and abroad.

Outfitted with the latest generation of technologies. Facilities and equipments. Jinshui Wire & Cable Group can produce more than 1400 types of cables and wires in scores of categories. We mainly have the following quality products with strong international competitiveness: Aluminum rod for electrical purpose, hard drawn copper conductor, all aluminum conductors (AAC), aluminum conductors steel reinforcement (ACSR), all aluminum alloy conductors (AAAC), aerial bundled cables up to 1kV (ABC), PVC insulated wire and flexible wire, welding cable, control cable, rubber insulated cable, rubber insulated flexible wire, PVC insulated power cable, XLPE insulated power cable up to 220kV and cable accessories. Our products can conform to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS and so on. Also we can produce based on customers' requirements and specifications. Our products have already been verified to conform to the certification of China Compulsory Product Certification (CCC), PCCC, CQC Mark Certification, MA and others from China and abroad.

With the strong and comprehensive sales and marketing network, Jinshui Wire & Cable Group has been making every effort to develop and expand the domestic and international market. Especially, our international market share is growing rapidly. Zhengzhou Jinshui Industry & Commerce Co., Ltd. Specializing in the international market in Jinshui Wire & Cable Group, has established sound business relationship with clients all over the world, exported products to the clients from Europe, Australia, Middle East, Africa, South Asia, North America, and South America, and obtained the clients' trust and compliment.

With the internationalization of Jinshui Wire & Cable Group, we have established long term strategic relationship with hundreds of large scale companies from America, Australia, Philippines, Malaysia, Korea and etc, and lay solid foundation for our further development.
