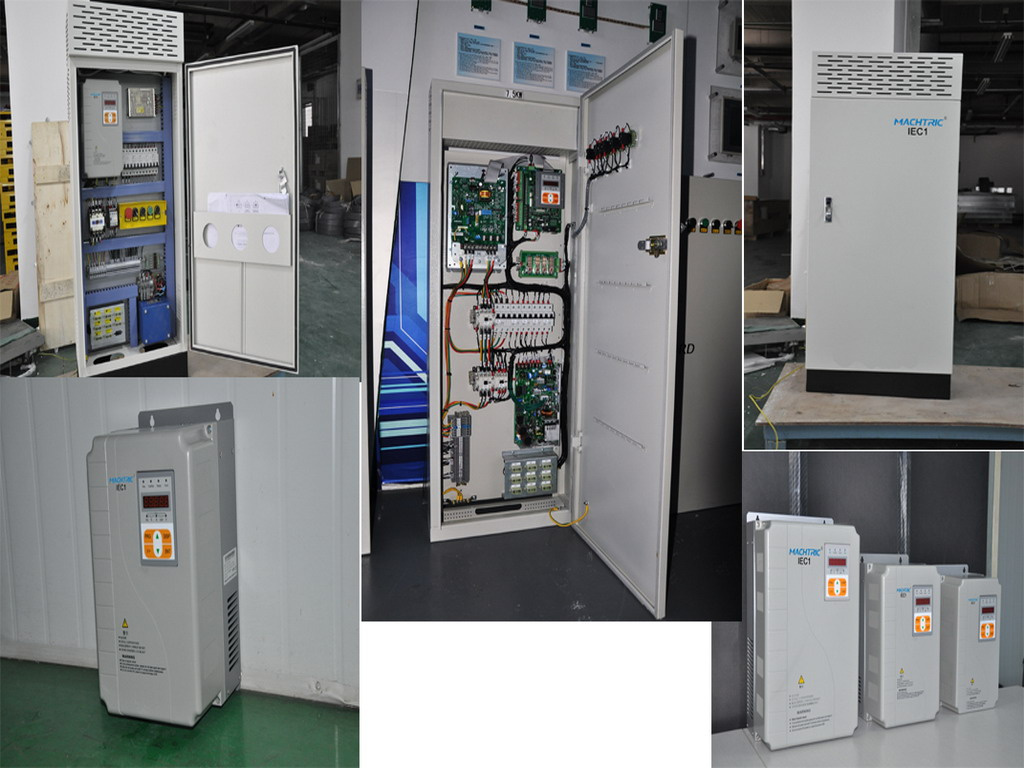

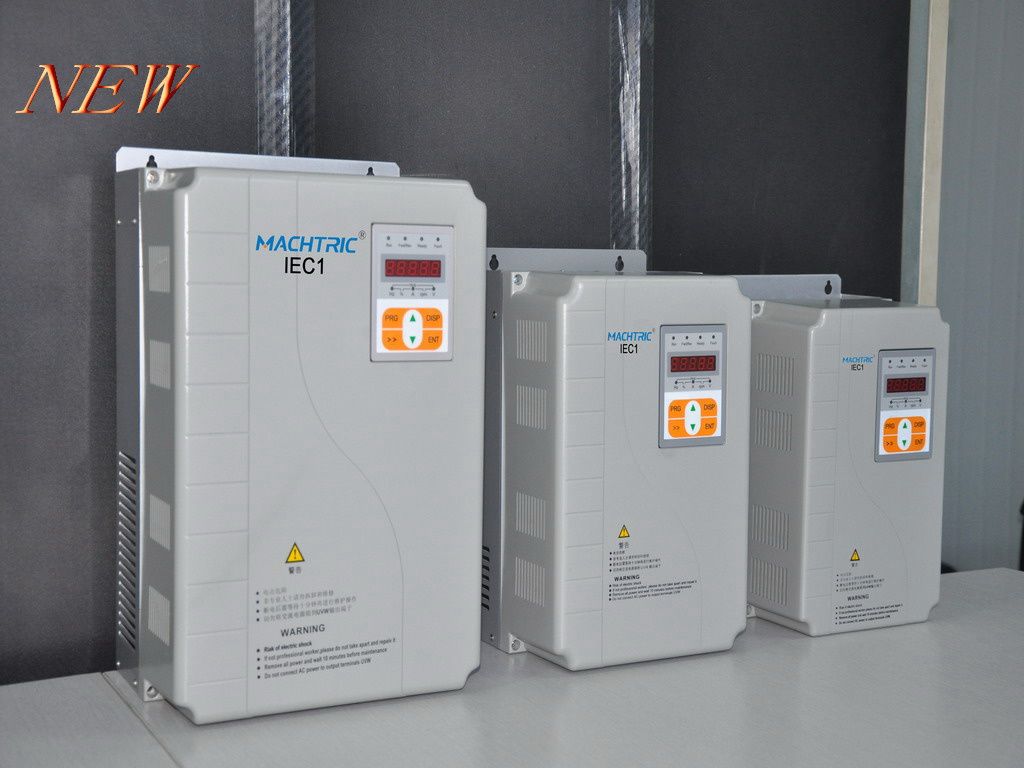

IEC1 Integrated Controller System for Lift/Elevator Max 64floors

Name: IEC1 Integrated Controller System for Lift/Elevator Max 64floors
Brand: all-electronics-online.com
SKU: 726948275
Availability: InStock
Rating: 5 (31 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	IEC1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	7.5kw-315kw
Input Voltage:	380-460V
Output Voltage:	380-460V
Type:	AC-DC-AC
Output Frequency:	0.1-400Hz
Output Current:	18-605A
Three Phase:	High Power .
Application:	Three Phase Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PAM Control
Main Circuit Type:	AC-DC-AC

Product Description

Features
1.A perfect combination of control and drive
l The control board integrates elevator control and motor control.
l The elevator control chip and motor control chip exchange data by high-speed, double-interface RAM with the max delay time of 100ns.
l The hardware of elevator control chip and motor control chip could inter-diagnose.

2.Safety circuit can cut off the IGB output directly
l Stopping the IGBT output immediately when the safety circuit is disconnected.
l Thoroughly avoid the arc damage caused by operating contactor being disconnected when the elevator stops in emergency.
l It meets high class safety requirement and satisfies the latest safety standard.

3.Ultrathin design
l The thickness of controller with 400V42A could be less than 125mm, which meets most of the installation requirements in well and build-in wall.
l Perfect air channel design guarantees the stability of all devices.

4.No weighing torque compensation control
l  Start torque compensation without any weighing sensor.
l  Precise torque compensating regardless of load changing.

5.Generates operation curve automatically
l Calculate operation curve of the remaining route on real-time during operation.
l Change the aim floor during operation.
l Realize direct leveling stop perfectly without any crawling process.
l Stop the car in high-efficiency

6.Motor parameter auto-tuning and magnetic poles position estimated in static

l No need of removing the load and opening brake when in AM and PM parameters self-tuning.
l Decreasing the working force greatly and reducing the risk on-job-site.
l It can learn any kinds of motors by self-adjusting.

7.Re-leveling function when door is open
l Due to the wire rope extension, the car will move up and down a large distance when the load is changed greatly.This function is designed to realize sensitive leveling, which helps passengers in and out.

8.Group controller can control 4 elevators meanwhile
l The group controller could identify any elevator error automatically
l The group controller will not be affected when any elevator is being cut off.
l It will enter single lift operation when group controller has malfunction.
l The controller with Ethernet monitor interface can monitor 4 elevators in low cost.

9.Optimized UPS operation mode
l The system detects the power failure automatically.
l The elevator will go to the nearest service floor at emergency speed and open door when UPS powers.

10.Remote monitoring based on Ethernet
l It could support LAN and internet based on Ethernet.
l Professional data statistic and data analysis tool can help users to make full use of elevator.

11.Pre-opening door function
l In order to improve operation efficiency, the elevator could short the door lock return circuit by external pre-open module ( optional ) to pre-open the door function.

12.High Voltage Input
l 3-line high voltage input interface, which lowers the system cost for users.
l DC110V/AC110V 3-line input (Standard)
l DC220V/AC220V 3-line input (Non-standard)
l 12-line high voltage input at most(Non-standard)

13.High Overload
l The inverter output current could reach 180% of rated current for 5 seconds.

14.High reliability
l Through protective functions of output inter-phase short circuit,output circuit short to ground and through protection.

15.The input signal level could select
l High level effective.
l Low level effective.

Category Company	A Company	B Company	C Company	Machtric
Category Company	A Company	B Company	C Company	Machtric
Installation way	Standard	Standard	Standard	Nude/seminude/Ultrathin
High Voltage Input	Not Available	Available		3 lines
Top Car Door Integrated Controller	Not Available	Not Available	Not Available	Available
Car control mode	Top car	Car inside	Car inside	Top car or car inside
Overload Characteristics	200% 1 s	160% 5 s		200% 1 minutes
Group Control and Ethernet Monitor Control	Unavailable	Unavailable	Unavailable	Available
I/O Quantity	24 Input 6 Output	20 Input 7 Output		25 Input 8 Output
Input level	High level	Low level/High level	Low level	Low level/High level
AntiShort Circuit of Loading	Unavailable	Available	Unavailable	Available
Stopping Directly	With Creeping	With Creeping	With Creeping	Available
Thickness	18.5kw/307mm	18.5kw/192MM	18.5Kw/220MM	18.5Kw/125MM
DDS	Unavailable	Available	Unavailable	Available
Accessory socket	Square	Flat	Square	Square/Flat
Car call and hall call communication	car call CAN/hall call 485	CAN	CAN	CAN
Encoder Interface	Order declare			Synchronous Standard Configuration/Asynchronous optional
Input Output Definition	Available	Unavailable	Unavailable	Available
AntiShort Circuit of Loading	Unavailable	Unavailable	Unavailable	Available
Villa elevator use	Noise, uncomfortable	Noise, uncomfortable	Noise,uncomfortable	Noise, uncomfortable

Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.

Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.

We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.

At present, our manufacturing capacity is over 100 thousand devices per annum.

This includes products such as:

A/C Frequency Inverters (INVERTER)

Thyristor power controller

Circular knitting machine

Intelligent Control Instruments

Peripheral equipment for Industrial Process Control (IPC)

Microcomputer Controllers for various applications and many others.

In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.

SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.

SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.

SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.

Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
