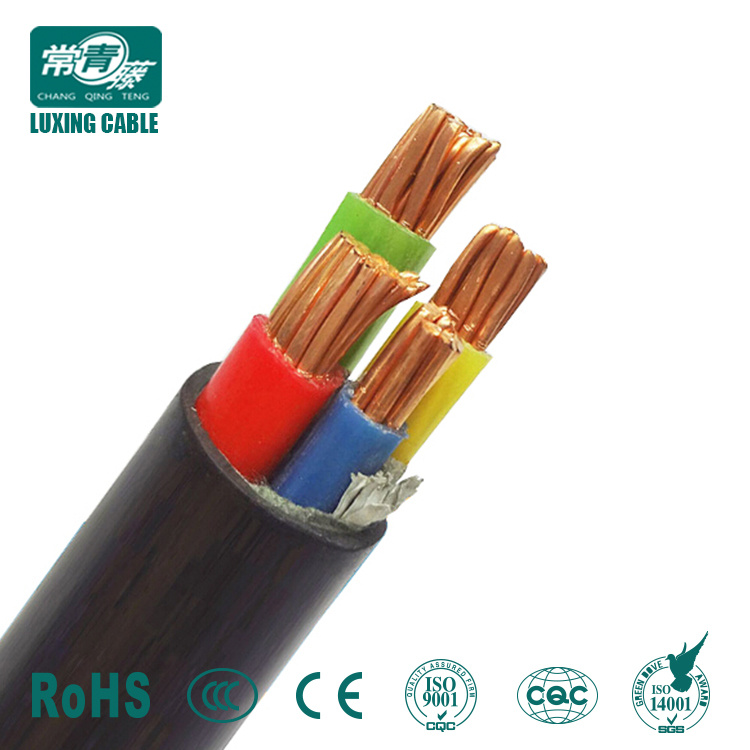

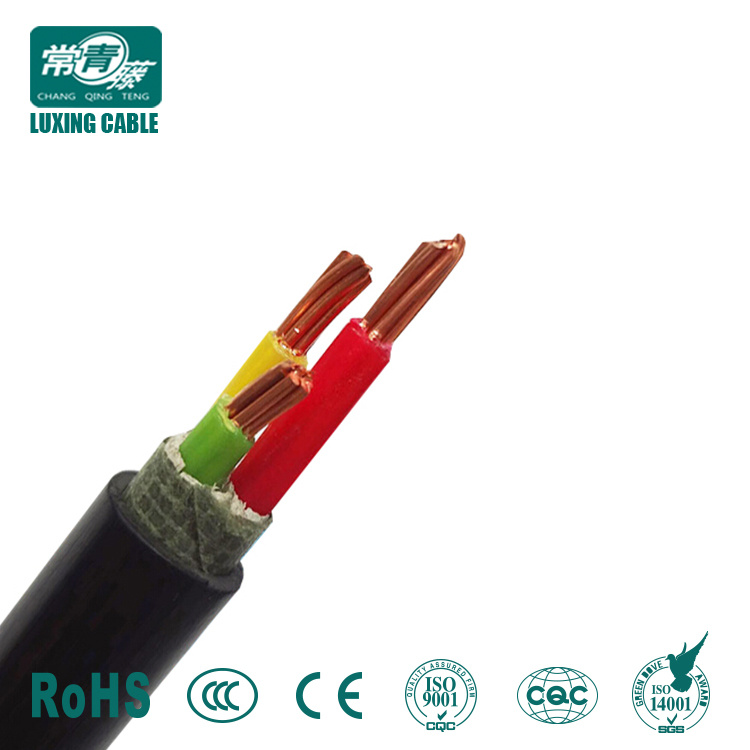

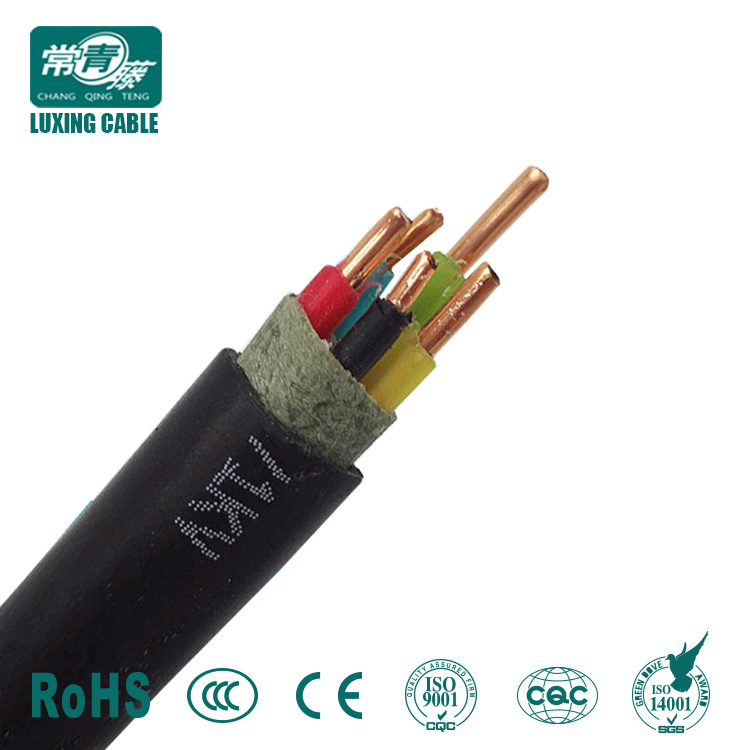

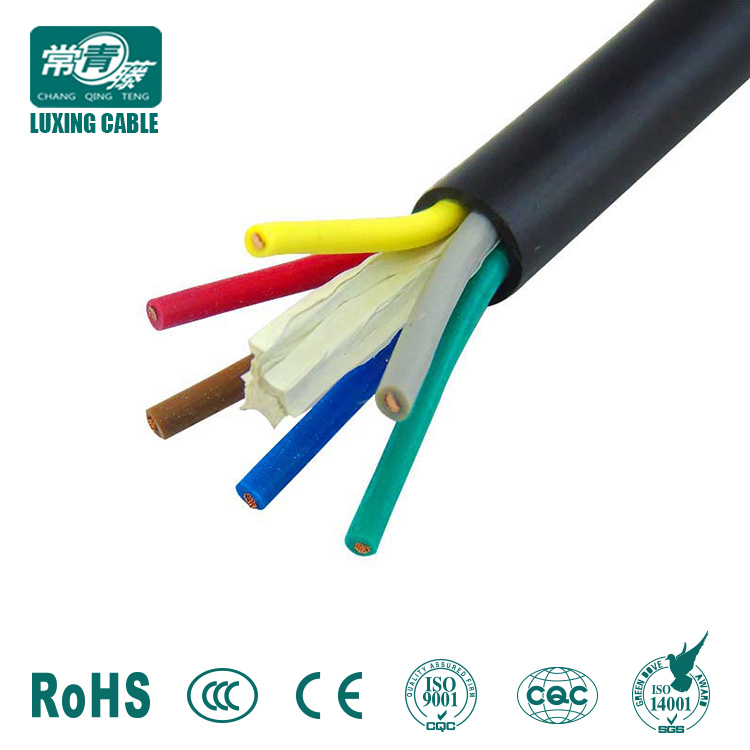

IEC60502 PVC Insulated Low Voltage Cables
Price: |
US $ 0.3-1/Meter |
Min Order: |
100/Meter |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
IEC60502 PVC insulated Low Voltage Cables |
Section Area: |
1.5-800mm2 |
Armoured: |
Steel Tape Armoured, Steel Wire Armoured |
Application: |
Power Station |
Voltage: |
Low and Medium Voltage Cable |
Current: |
DC & AC |
Insulation Material: |
PVC |
Certification: |
RoHS |
Model: |
VV,VV22,VV32 |
Brand: |
Luxing Cable |
Product Description
IEC60502 PVC insulated Low Voltage Cables
1.ApplicationsThese cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors,
in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants,
where there is no risk of mechanical damage.
2.Construction
-ConductorsThe conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy,
or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.-InsulationPVC Insulation material and thickness shall be as per IEC 60502-1, PVC material shall be Type A as per IEC 60502-1.-Colour Code Colour Code (1)1 Core | Red or Black |
2 Cores | Red, Black |
3 Cores | Red, Yellow, Blue |
4 Cores | Red, Yellow, Blue, Black |
5 Cores | Red, Yellow, Blue, Black, Green |
Above 5 Cores | Black Cores with White numerals |
Colour Code (2)
1 Core | Brown or Blue |
2 Cores | Brown, Blue |
3 Cores | Brown, Black, Grey |
4 Cores | Blue, Brown, Black, Grey |
5 Cores | Green/Yellow, Blue, Brown, Black, Grey |
Above 5 Cores | Black Cores with White numerals |
Other colours can be manufactured upon request.-Assembly / Inner Covering
The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores,
a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled.
A suitable binder is permitted before application of an extruded inner covering.
The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the
insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.-Armour
Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1,
or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.
-Outer Sheath
Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8,
Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.
-Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22,
IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.3.Parameters
Single core(unarmoured) Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
mm^2 | mm | mm | mm | mm |
1x4 | 2.3 | 1 | 1.4 | 7.1 |
1x6 | 2.8 | 1 | 1.4 | 7.6 |
1x10 | 3.6 | 1 | 1.4 | 8.4 |
1x16 | 4.5 | 1 | 1.4 | 9.3 |
1x25 | 5.6 | 1.2 | 1.4 | 10.8 |
1x35 | 6.7 | 1.2 | 1.4 | 11.9 |
1x50 | 8 | 1.4 | 1.4 | 13.6 |
1x70 | 9.4 | 1.4 | 1.4 | 15.1 |
1x95 | 11 | 1.6 | 1.5 | 17.2 |
1x120 | 12.4 | 1.6 | 1.5 | 18.7 |
1x150 | 13.8 | 1.8 | 1.6 | 20.6 |
1x185 | 15.3 | 2 | 1.7 | 22.7 |
1x240 | 17.5 | 2.2 | 1.8 | 25.4 |
1x300 | 19.5 | 2.4 | 1.9 | 28.0 |
1x400 | 22.6 | 2.6 | 2.0 | 31.7 |
1x500 | 25.2 | 2.8 | 2.1 | 35.0 |
1x630 | 28.3 | 2.8 | 2.2 | 38.3 |
Two cores(unarmoured)Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
mm^2 | mm | mm | mm | mm |
2x1.5 | 1.4 | 0.8 | 1.8 | 9.6 |
2x2.5 | 1.8 | 0.8 | 1.8 | 10.4 |
2x4 | 2.3 | 1 | 1.8 | 12.2 |
2x6 | 2.8 | 1 | 1.8 | 13.2 |
2x10 | 3.6 | 1 | 1.8 | 14.8 |
2x16 | 4.5 | 1 | 1.8 | 16.6 |
2x25 | 5.6 | 1.2 | 1.8 | 19.6 |
2x35 | 6.7 | 1.2 | 1.8 | 21.8 |
2x50 | 8 | 1.4 | 1.8 | 25.2 |
2x70 | 9.4 | 1.4 | 1.9 | 28.1 |
2x95 | 11 | 1.6 | 2.0 | 32.4 |
2x120 | 12.4 | 1.6 | 2.1 | 35.4 |
2x150 | 13.8 | 1.8 | 2.2 | 39.2 |
2x185 | 15.3 | 2 | 2.4 | 43.3 |
2x240 | 17.5 | 2.2 | 2.5 | 48.9 |
2x300 | 19.5 | 2.4 | 2.7 | 54.0 |
2x400 | 22.6 | 2.6 | 2.9 | 61.5 |
Three cores(unarmoured) |
Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
mm^2 | mm | mm | mm | mm |
3x1.5 | 1.4 | 0.8 | 1.8 | 10.1 |
3x2.5 | 1.8 | 0.8 | 1.8 | 10.9 |
3x4 | 2.3 | 1 | 1.8 | 12.9 |
3x6 | 2.8 | 1 | 1.8 | 13.9 |
3x10 | 3.6 | 1 | 1.8 | 15.7 |
3x16 | 4.5 | 1 | 1.8 | 17.6 |
3x25 | 5.6 | 1.2 | 1.8 | 20.8 |
3x35 | 6.7 | 1.2 | 1.8 | 23.2 |
3x50 | 8 | 1.4 | 1.8 | 26.9 |
3x70 | 9.4 | 1.4 | 1.9 | 30.1 |
3x95 | 11 | 1.6 | 2.1 | 34.7 |
3x120 | 12.4 | 1.6 | 2.2 | 38.0 |
3x150 | 13.8 | 1.8 | 2.3 | 42.1 |
3x185 | 15.3 | 2 | 2.5 | 46.5 |
3x240 | 17.5 | 2.2 | 2.7 | 52.5 |
3x300 | 19.5 | 2.4 | 2.8 | 58.0 |
3x400 | 22.6 | 2.6 | 3.1 | 66.1 |
Three cores+1(unarmoured)Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
mm^2 | (3)mm | (1)mm | (3)mm | (1)mm | mm | mm |
3x 16/10 | 4.5 | 3.6 | 1 | 1 | 1.8 | 19.0 |
3x 25/16 | 5.6 | 4.5 | 1.2 | 1 | 1.8 | 22.6 |
3x 35/16 | 6.7 | 4.5 | 1.2 | 1 | 1.8 | 25.3 |
3x 50/25 | 8.0 | 5.6 | 1.4 | 1.2 | 1.9 | 29.6 |
3x 70/35 | 9.4 | 6.7 | 1.4 | 1.2 | 2.0 | 33.2 |
3x 95/50 | 11.0 | 8.0 | 1.6 | 1.4 | 2.2 | 38.4 |
3x120/70 | 12.4 | 9.4 | 1.6 | 1.4 | 2.3 | 42.0 |
3x150/70 | 13.8 | 9.4 | 1.8 | 1.4 | 2.5 | 46.6 |
3x185/95 | 15.3 | 11.0 | 2 | 1.6 | 2.6 | 51.6 |
3x240/120 | 17.5 | 12.4 | 2.2 | 1.6 | 2.9 | 58.3 |
3x300/150 | 19.5 | 13.8 | 2.4 | 1.8 | 3.1 | 64.5 |
3x400/185 | 22.6 | 15.3 | 2.6 | 2 | 3.3 | 73 |
Four cores(unarmored)Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
mm^2 | mm | mm | mm | mm |
4x1.5 | 1.4 | 0.8 | 1.8 | 10.8 |
4x2.5 | 1.8 | 0.8 | 1.8 | 11.8 |
4x4 | 2.3 | 1 | 1.8 | 14.0 |
4x6 | 2.8 | 1 | 1.8 | 15.2 |
4x10 | 3.6 | 1 | 1.8 | 17.1 |
4x16 | 4.5 | 1 | 1.8 | 19.3 |
4x25 | 5.6 | 1.2 | 1.8 | 22.9 |
4x35 | 6.7 | 1.2 | 1.8 | 25.6 |
4x50 | 8 | 1.4 | 1.9 | 29.9 |
4x70 | 9.4 | 1.4 | 2.0 | 33.5 |
4x95 | 11 | 1.6 | 2.2 | 38.7 |
4x120 | 12.4 | 1.6 | 2.3 | 42.3 |
4x150 | 13.8 | 1.8 | 2.5 | 46.9 |
4x185 | 15.3 | 2 | 2.6 | 51.9 |
4x240 | 17.5 | 2.2 | 2.9 | 58.6 |
4x300 | 19.5 | 2.4 | 3.1 | 64.8 |
4x400 | 22.6 | 2.6 | 3.3 | 73.8 |
Multi-cores(unarmoured)Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
mm^2 | mm | mm | mm | mm |
5x1.5 | 1.4 | 0.8 | 1.8 | 11.7 |
7x1.5 | 1.4 | 0.8 | 1.8 | 12.6 |
10x1.5 | 1.4 | 0.8 | 1.8 | 15.6 |
12x1.5 | 1.4 | 0.8 | 1.8 | 16.1 |
14x1.5 | 1.4 | 0.8 | 1.8 | 16.8 |
19x1.5 | 1.4 | 0.8 | 1.8 | 18.6 |
21x1.5 | 1.4 | 0.8 | 1.8 | 19.5 |
24x1.5 | 1.4 | 0.8 | 1.8 | 21.6 |
30x1.5 | 1.4 | 0.8 | 1.8 | 22.8 |
40x1.5 | 1.4 | 0.8 | 1.8 | 27.7 |
48x1.5 | 1.4 | 0.8 | 1.9 | 28.2 |
61x1.5 | 1.4 | 0.8 | 1.9 | 30.9 |
5x2.5 | 1.8 | 0.8 | 1.8 | 12.8 |
7x2.5 | 1.8 | 0.8 | 1.8 | 13.8 |
10x2.5 | 1.8 | 0.8 | 1.8 | 17.2 |
12x2.5 | 1.8 | 0.8 | 1.8 | 17.7 |
14x2.5 | 1.8 | 0.8 | 1.8 | 18.6 |
19x2.5 | 1.8 | 0.8 | 1.8 | 20.6 |
21x2.5 | 1.8 | 0.8 | 1.8 | 21.6 |
24x2.5 | 1.8 | 0.8 | 1.8 | 24.0 |
30x2.5 | 1.8 | 0.8 | 1.8 | 25.4 |
40x2.5 | 1.8 | 0.8 | 2.0 | 31.1 |
48x2.5 | 1.8 | 0.8 | 2.0 | 31.7 |
61x2.5 | 1.8 | 0.8 | 2.1 | 34.7 |
Single core( aluminum wire armoured)Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation thickness | Nominal Inner Covering thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Overall Diameter (Approx.) |
mm^2 | mm | mm | mm | mm | mm | mm |
1x4 | 2.3 | 1 | 1.0 | 0.8 | 1.8 | 11.5 |
1x6 | 2.8 | 1 | 1.0 | 0.8 | 1.8 | 12.0 |
1x10 | 3.6 | 1 | 1.0 | 0.8 | 1.8 | 12.8 |
1x16 | 4.5 | 1 | 1.0 | 0.8 | 1.8 | 13.7 |
1x25 | 5.6 | 1.2 | 1.0 | 0.8 | 1.8 | 15.2 |
1x35 | 6.7 | 1.2 | 1.0 | 1.25 | 1.8 | 17.2 |
1x50 | 8.0 | 1.4 | 1.0 | 1.25 | 1.8 | 18.9 |
1x70 | 9.4 | 1.4 | 1.0 | 1.25 | 1.8 | 20.3 |
1x95 | 11.0 | 1.6 | 1.0 | 1.6 | 1.8 | 23.0 |
1x120 | 12.4 | 1.6 | 1.0 | 1.6 | 1.8 | 24.4 |
1x150 | 13.8 | 1.8 | 1.0 | 1.6 | 1.8 | 26.2 |
1x185 | 15.3 | 2 | 1.0 | 1.6 | 1.9 | 28.2 |
1x240 | 17.5 | 2.2 | 1.0 | 1.6 | 1.9 | 31.0 |
1x300 | 19.5 | 2.4 | 1.0 | 2.0 | 2.1 | 34.4 |
1x400 | 22.6 | 2.6 | 1.2 | 2.0 | 2.2 | 38.6 |
1x500 | 25.2 | 2.8 | 1.2 | 2.0 | 2.3 | 41.8 |
1x630 | 28.3 | 2.8 | 1.2 | 2.5 | 2.4 | 46.2 |
Two cores(Galvanized steel wire armoured)Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation thickness | Nominal Inner Covering thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Overall Diameter (Approx.) |
mm^2 | mm | mm | mm | mm | mm | mm |
2x2.5 | 1.8 | 0.8 | 1.0 | 0.8 | 1.8 | 14.0 |
2x4 | 2.3 | 1 | 1.0 | 1.25 | 1.8 | 16.7 |
2x6 | 2.8 | 1 | 1.0 | 1.25 | 1.8 | 17.7 |
2x10 | 3.6 | 1 | 1.0 | 1.25 | 1.8 | 19.3 |
2x16 | 4.5 | 1 | 1.0 | 1.25 | 1.8 | 21.1 |
2x25 | 5.6 | 1.2 | 1.0 | 1.6 | 1.8 | 24.8 |
2x35 | 6.7 | 1.2 | 1.0 | 1.6 | 1.8 | 27.0 |
2x50 | 8 | 1.4 | 1.0 | 1.6 | 1.9 | 30.7 |
2x70 | 9.4 | 1.4 | 1.0 | 2.0 | 2.1 | 34.5 |
2x95 | 11 | 1.6 | 1.2 | 2.0 | 2.2 | 39.2 |
2x120 | 12.4 | 1.6 | 1.2 | 2.0 | 2.3 | 42.2 |
2x150 | 13.8 | 1.8 | 1.2 | 2.5 | 2.5 | 47.2 |
2x185 | 15.3 | 2 | 1.4 | 2.5 | 2.6 | 51.6 |
2x240 | 17.5 | 2.2 | 1.4 | 2.5 | 2.8 | 57.2 |
2x300 | 19.5 | 2.4 | 1.6 | 2.5 | 3.0 | 62.8 |
2x400 | 22.6 | 2.6 | 1.6 | 2.5 | 3.2 | 70.3 |
Thr cores(Galvanized steel wire armoured)Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation thickness | Nominal Inner Covering thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Overall Diameter (Approx.) |
mm^2 | mm | mm | mm | mm | mm | mm |
3x2.5 | 1.8 | 0.8 | 1.0 | 0.8 | 1.8 | 14.5 |
3x4 | 2.3 | 1 | 1.0 | 1.25 | 1.8 | 17.4 |
3x6 | 2.8 | 1 | 1.0 | 1.25 | 1.8 | 18.4 |
3x10 | 3.6 | 1 | 1.0 | 1.25 | 1.8 | 20.2 |
3x16 | 4.5 | 1 | 1.0 | 1.6 | 1.8 | 22.8 |
3x25 | 5.6 | 1.2 | 1.0 | 1.6 | 1.8 | 26.0 |
3x35 | 6.7 | 1.2 | 1.0 | 1.6 | 1.9 | 28.5 |
3x50 | 8.0 | 1.4 | 1.0 | 2 | 2.0 | 33.3 |
3x70 | 9.4 | 1.4 | 1.2 | 2 | 2.1 | 37.0 |
3x95 | 11.0 | 1.6 | 1.2 | 2 | 2.3 | 41.6 |
3x120 | 12.4 | 1.6 | 1.2 | 2.5 | 2.4 | 45.9 |
3x150 | 13.8 | 1.8 | 1.4 | 2.5 | 2.6 | 50.4 |
3x185 | 15.3 | 2 | 1.4 | 2.5 | 2.7 | 54.8 |
3x240 | 17.5 | 2.2 | 1.5 | 2.5 | 2.9 | 61.2 |
3x300 | 19.5 | 2.4 | 1.6 | 2.5 | 3.1 | 66.8 |
3x400 | 22.6 | 2.8 | 1.6 | 3.15 | 3.4 | 76.7 |
3x500 | 25.2 | 2.8 | 1.8 | 3.15 | 3.7 | 83.6 |
Three cores+1(Galvanized steel wire armoured)Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation thickness | Nominal Inner Covering thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Overall Diameter (Approx.) |
mm^2 | mm | mm | mm | mm | mm | mm | mm | mm |
3x10/6 | 3.6 | 2.8 | 1 | 1 | 1 | 1.25 | 1.8 | 21.9 |
3x16/10 | 4.5 | 3.6 | 1 | 1 | 1 | 1.6 | 1.8 | 24.2 |
3x25/16 | 5.6 | 4.5 | 1.2 | 1 | 1 | 1.6 | 1.8 | 27.9 |
3x35/16 | 6.7 | 4.5 | 1.2 | 1 | 1 | 1.6 | 1.9 | 30.8 |
3x50/25 | 8.0 | 5.6 | 1.4 | 1.2 | 1 | 2.0 | 2.0 | 36.4 |
3x70/35 | 9.4 | 6.7 | 1.4 | 1.2 | 1.2 | 2.0 | 2.1 | 40.1 |
3x95/50 | 11.0 | 8.0 | 1.6 | 1.4 | 1.2 | 2.5 | 2.3 | 46.3 |
3x120/70 | 12.4 | 9.4 | 1.6 | 1.4 | 1.4 | 2.5 | 2.4 | 50.3 |
3x150/70 | 13.8 | 9.4 | 1.8 | 1.4 | 1.4 | 2.5 | 2.6 | 55.0 |
3x185/95 | 15.3 | 11.0 | 2 | 1.6 | 1.4 | 2.5 | 2.7 | 60.3 |
3x240/120 | 17.5 | 12.4 | 2.2 | 1.6 | 1.6 | 2.5 | 2.9 | 67.0 |
3x300/150 | 19.5 | 13.8 | 2.4 | 1.8 | 1.6 | 3.15 | 3.1 | 74.6 |
3x400/185 | 22.6 | 15.3 | 2.6 | 2 | 1.8 | 3.15 | 3.4 | 84.1 |
3x500/240 | 25.2 | 17.5 | 2.8 | 2.2 | 2 | 3.15 | 3.7 | 91 |
Four cores(Galvanized steel wire armoured)Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation thickness | Nominal Inner Covering thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Overall Diameter (Approx.) |
mm^2 | mm | mm | mm | mm | mm | mm |
4x4 | 2.3 | 1 | 1 | 1.25 | 1.8 | 18.5 |
4x6 | 2.8 | 1 | 1 | 1.25 | 1.8 | 19.7 |
4x10 | 3.6 | 1 | 1 | 1.25 | 1.8 | 22.3 |
4x16 | 4.5 | 1 | 1 | 1.6 | 1.8 | 24.5 |
4x25 | 5.6 | 1.2 | 1 | 1.6 | 1.9 | 28.2 |
4x35 | 6.7 | 1.2 | 1 | 1.6 | 2.0 | 31.1 |
4x50 | 8.0 | 1.4 | 1 | 2.0 | 2.1 | 36.7 |
4x70 | 9.4 | 1.4 | 1.2 | 2.0 | 2.3 | 40.4 |
4x95 | 11.0 | 1.6 | 1.2 | 2.5 | 2.5 | 46.6 |
4x120 | 12.4 | 1.6 | 1.4 | 2.5 | 2.6 | 50.6 |
4x150 | 13.8 | 1.8 | 1.4 | 2.5 | 2.7 | 55.3 |
4x185 | 15.3 | 2 | 1.4 | 2.5 | 2.9 | 60.6 |
4x240 | 17.5 | 2.2 | 1.6 | 2.5 | 3.1 | 67.3 |
4x300 | 19.5 | 2.4 | 1.6 | 3.15 | 3.4 | 74.9 |
4x400 | 22.6 | 2.6 | 1.8 | 3.15 | 3.7 | 84.4 |
4x500 | 25.2 | 2.8 | 2 | 3.15 | 3.9 | 92.1 |
1) About Luxing Cable Factory:
-Shandong New Luxing Cable Co., Ltd established in the year of 1999.
-The headquarter is located in Jinan City, the capital of Shandong province, China.
-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.
-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.
-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.
2)Why Choose Luxing Cable Factory?
-Luxing cable, the designated supplier of China's national grid construction.
-We provid high-quality cables for our clients for more than 18 years.
-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.
-Serve you any time.
3)The Product of Luxing Cable Factory
-300/500V 450/750V electrical wire
-600/1000V PVC insulated cable
-600/1000V XLPE insulated cable
-1.8/3KV to 26/35KV power cable
-Armored underground cable
-Control cable and instrumentation cables
-ABC cable
-AAC conductor
-AAAC conductor
-ACSR conductor
-OPGW
-Rubber cable
4)Product application
-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.
-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.
5)Production Market
-Supply power cables & electrical wire to
South America(Brazil...),
East Asia(Korea...),
Africa(Uganda, South Africa, Zimbabwe...),
Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),
Europe(Czech Republic...) to global market.
-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.
6)Our service
-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.
-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
