| Prod Model: |
EKM1-40N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DC Voltage Range: |
127VDC to 800VDC |
| Use Area: |
PV System |
| Voltage: |
220V |
| Amperes: |
63A |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Insert |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
CCC |

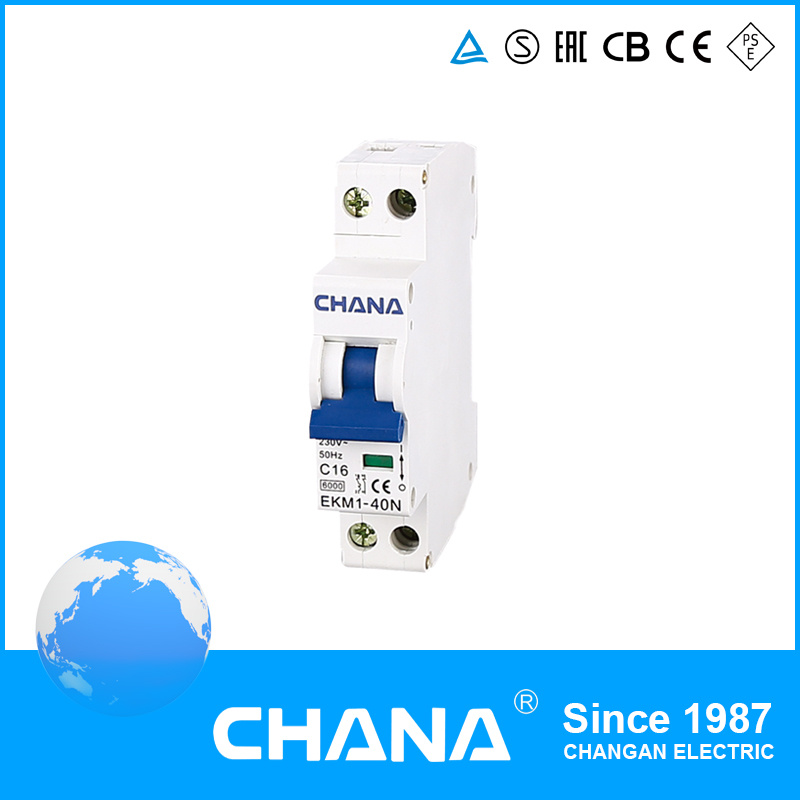

Product Description
Electrical Features of DPN Circuit Breaker.
Rated current In :6,10,16,20,25,32,40A
Poles:1P+N
Rated voltage Ue:240/415V
Insulation voltage Ui :500V
Rated frequency:50/60Hz
Rated breaking capacity :4500A 6000A
Energy limiting class:3
Rated impulse withstand voltage(1.2/50) Uimp:4,000V
Dielectric test voltage at ind. Freq. for 1 min:2kV
Pollution degree of DPN:2
Thermo-magnetic release characteristic: B,C
Mechanical Features of the mini circuit breaker
Electrical life:3,000
Mechanical life:6,000
Protection degree:IP20
Reference temperature for setting of thermal element:30?
Ambient temperature (with daily average?35?): -5?...+40?
Storage temperation: -25?...+70?
Installation
Terminal size top/bottom for cable: 10mm2
Terminal size top/bottom for busbar:10mm2
Tightening torque 1.2 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Combination with accessories
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes
| Items | Poles | Ampers | Voltage | Electrical Life | Mechanical life | Protection Degree | Breaking capacity |
| EKM1-40N | 1P+N | 10 | 240/415V | 3000 | 6000 | 2 | 3000 |
| EKM1-40N | 1P+N | 16 | 240/415V | 3000 | 6000 | 2 | 3000 |
| EKM1-40N | 1P+N | 32 | 240/415V | 3000 | 6000 | 2 | 3000 |
How to Order?1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed,PI will be sent for payment.
4. After get your Deposit,production will be arranged within one day.
5. When goods ready,all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable
Shipping:1. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
4. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable
Warranty:1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
Company Profile:Changan Group Co., Ltd,Establised in 1987,Comprising more than 62 factories with over 2500 employees and the whole corporaion occupies 82000m2 ground during past 30years.we manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,Contactor,Relay,Switch,Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia,Turkey,Europe,south america,Mid-east and Africa Market.

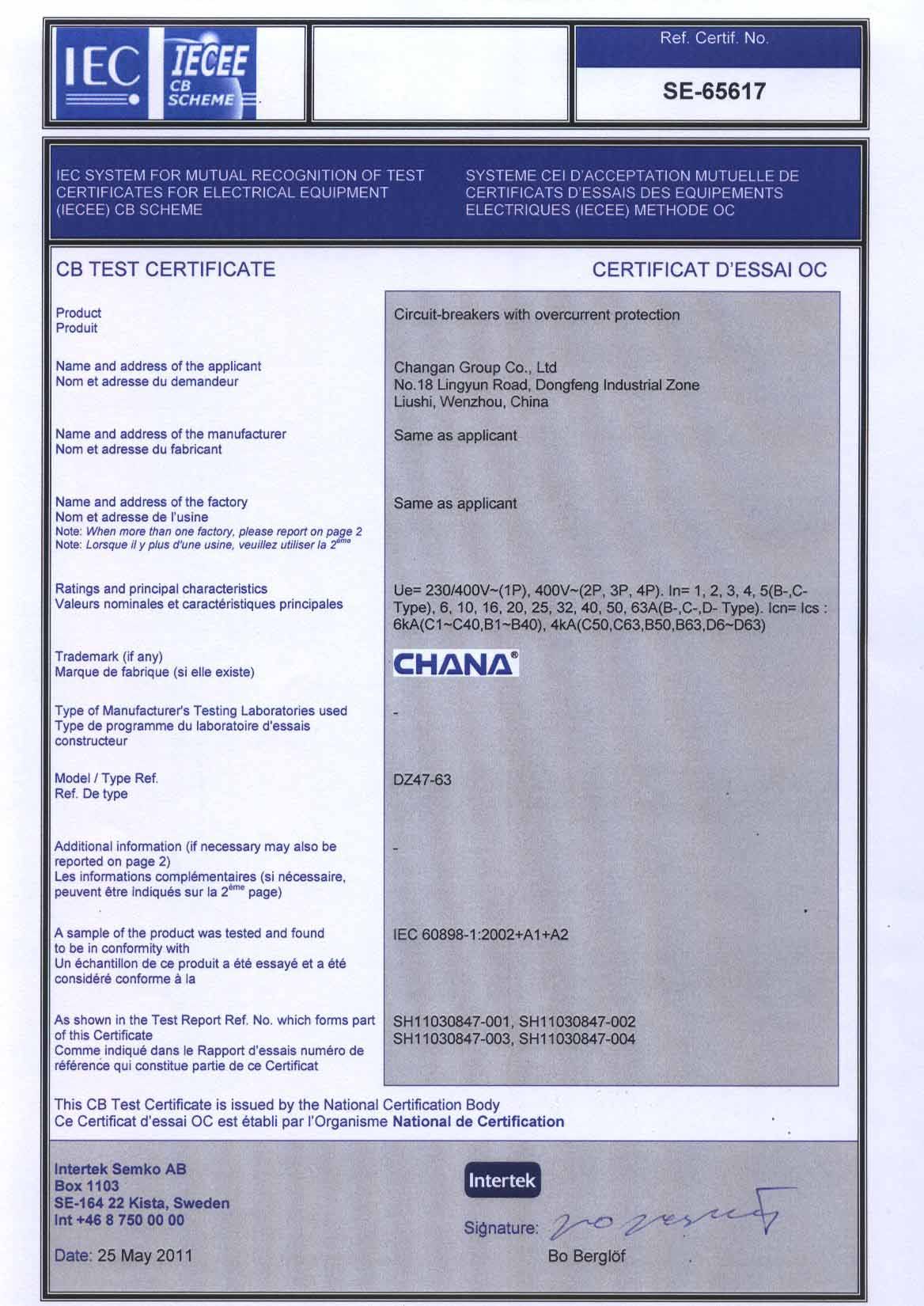

Certificates:
