| Prod Model: |
CAH2-125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Poles: |
1p |
| Rated Voltage: |
240V |
| Current: |
25A |
| Pole: |
1p |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Insert |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
CCC |
Product Description

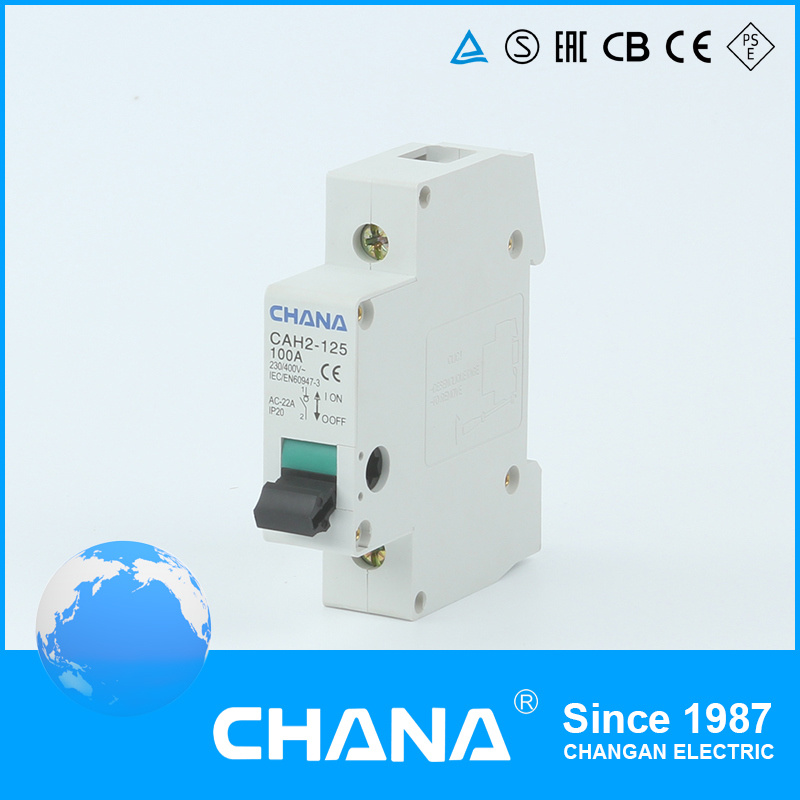

Product Description of isolation switch
Electrical Features for the isolation switch
Rated voltage Ue: 240/415V
Rated current le: 32, 40, 50, 63, 80, 100, 125A
Poles: 1P, 2P, 3P, 4P
Isolation switch Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4, 000V
Rated short-time withstand current lcw: 12le, 1s
Isolation switch Rated making and breaking capacity: 3le, 1.05Ue, cos Φ =0.65
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. For 1min: 2.5kV
Insulation voltage Ui: 500V
Isolation switch Pollution degree: 2
Uilization category: AC-22A
Mechanical Features
Electrical life: 1, 500
Mechanical life: 8, 500
Protection degree: I P20
Ambient temperature (with daily average35): -5º C...+40
º CStorage temperation: -25º C...+70º C
Installation of isolation switch
Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 50mm2
Terminal size top/bottom for busbar: 50mm2
Tightening torque 2.5 N*m
Connection: From top and bottom
About US:
Changan Group Co., Ltd specializing in the R&D, manufacture and sale of low voltage electric applicants, such as MCB, MCCB, RCCB, Indicators, AC contactors and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
1. We already get the certificate of ISO9001, CE, SGS.
2. We have 27 years of manufacture and 17 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Bengal, Thailand, south American, Mid-east market and so on.
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We usually use T/T
2.30% deposit and 70% before shipping
3. L/C also acceptable
Warranty:
1. We provide 1.5 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
Sequence
NO . | Release | Test
current I/In | Start state | Tripping
time | Expected
restlt |
| 1 | c | 1.13In | Cold state | t≤1h | Not tripping |
| 2 | c | 1.45In | Start right after
the serial NO .
1 test | t<1h | Tripping |
| 3 | c | 2.55In | Cold state | 1s| Tripping | |
| 4 | c | 5In | Cold state | t≤0.1s | Not tripping |
| 5 | c | 10In | Cold state | t<0.1s | Tripping |
| Frame class | 63A |
| Rated working voltage | 240V/415V |
| Rated frequency | 50/60Hz |
| Rated working current | 6,10,16,20,25,32,40,50,63A |
| Making and breaking capacity | 10000A |
| Release type | C |
| Poles | 1,2,3,4P |
| Mechanical life | 10000 |
| Electric life | 4000
|
