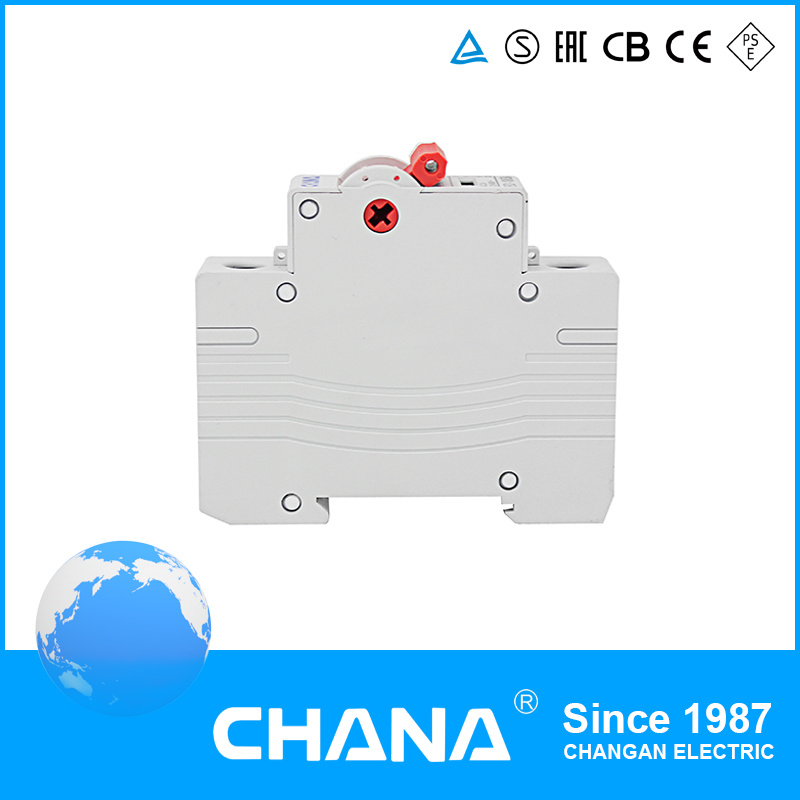

IEC60947-3 and RoHS Approval Low-Voltage Isolation Switch Ekd1-100

Name: IEC60947-3 and RoHS Approval Low-Voltage Isolation Switch Ekd1-100
Brand: all-electronics-online.com
SKU: 746296985
Availability: InStock
Rating: 4.6 (31 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKD1-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Frequency:	50/60Hz
Brand Name:	Chana
Packing Type:	Box
Export Market:	Global
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	TUV
Poles Number:	1 2 3 4

Product Description

Electrical Features
Rated voltage Ue: 240/415V
Rated current le: 32, 40, 50, 63, 80, 100A
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Rated short-time withstand current lcw: 12le, 1s
Rated making and breaking capacity: 3le, 1.05Ue, cosφ =0.65
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. For 1min: 2.5kV
Insulation voltage Ui: 500V
Pollution degree: 2
Uilization category: AC-22A
Mechanical Features
Electrical life: 1, 500
Mechanical life: 8, 500
Protection degree: I P20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 50mm2 18-1/0AWG
Terminal size top/bottom for busbar: 50mm2 18-1/0AWG
Tightening torque 2.5 N*m 22In-Ibs.
Connection: From top and bottom

Product Description

Free samples can be provided for test !!!!!!!!!

Electrical Features
Rated voltage Ue: 240/415V
Rated current le: 32, 40, 50, 63, 80, 100A
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Rated short-time withstand current lcw: 12le, 1s
Rated making and breaking capacity: 3le, 1.05Ue, cosφ=0.65
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. for 1min: 2.5kV
Insulation voltage Ui: 500V
Pollution degree: 2
Uilization category: AC-22A
Mechanical Features
Electrical life:1,500
Mechanical life:8,500
Protection degree: I P20
Ambient temperature (with daily average≤35ºC):-5ºC...+40ºC
Storage temperation: -25ºC...+70ºC
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 50mm2 18-1/0AWG
Terminal size top/bottom for busbar: 50mm2 18-1/0AWG
Tightening torque 2.5 N*m 22In-Ibs.
Connection: From top and bottom
Dimensions(mm)

ln 1P	Code	QTY/CTN
32A	1D1032	180
40A	1D1040	180
50A	1D1050	180
63A	1D1063	180
80A	1D1080	180
100A	1D1100	180
ln 2P	Code
32A	1D2032	90
40A	1D2040	90
50A	1D2050	90
63A	1D2063	90
80A	1D2080	90
100A	1D2100	90
ln 3P	Code
32A	1D3032	60
40A	1D3040	60
50A	1D3050	60
63A	1D3063	60
80A	1D3080	60
100A	1D3100	60
ln 4P	Code
32A	1D4032	45
40A	1D4040	45
50A	1D4050	45
63A	1D4063	45
80A	1D4080	45
100A	1D4100	45
