| Prod Model: |
EKD1-100 |
| Protection Degree: |
IP20 |
| Export Market: |
Global |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
TUV |
Product Description

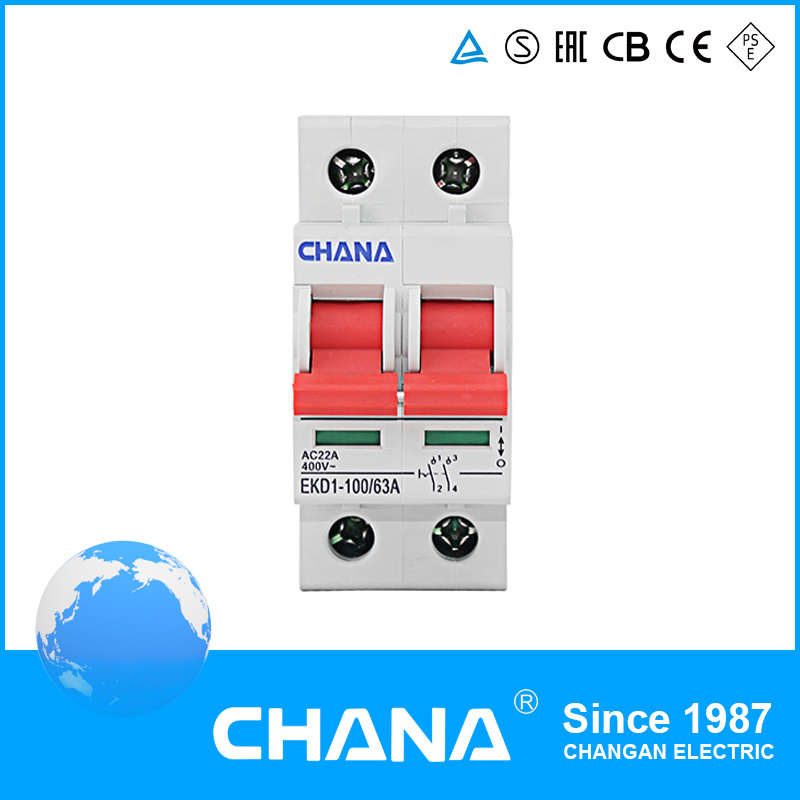

IEC60947-3 standard 1P 63A Isolation Switch
Product Description
Free samples can be provided for test !!!!!!!!!
Electrical Features
Rated voltage Ue: 240/415V
Rated current le: 32, 40, 50, 63, 80, 100A
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Rated short-time withstand current lcw: 12le, 1s
Rated making and breaking capacity: 3le, 1.05Ue, cosφ=0.65
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. for 1min: 2.5kV
Insulation voltage Ui: 500V
Pollution degree: 2
Uilization category: AC-22A
Mechanical Features
Electrical life:1,500
Mechanical life:8,500
Protection degree: I P20
Ambient temperature (with daily average≤35ºC):-5ºC...+40ºC
Storage temperation: -25ºC...+70ºC
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 50mm2 18-1/0AWG
Terminal size top/bottom for busbar: 50mm2 18-1/0AWG
Tightening torque 2.5 N*m 22In-Ibs.
Connection: From top and bottom
ln 1P | Code | QTY/CTN |
| 32A | 1D1032 | 180 |
| 40A | 1D1040 | 180 |
| 50A | 1D1050 | 180 |
| 63A | 1D1063 | 180 |
| 80A | 1D1080 | 180 |
| 100A | 1D1100 | 180 |
| ln 2P | Code | |
| 32A | 1D2032 | 90 |
| 40A | 1D2040 | 90 |
| 50A | 1D2050 | 90 |
| 63A | 1D2063 | 90 |
| 80A | 1D2080 | 90 |
| 100A | 1D2100 | 90 |
| ln 3P | Code | |
| 32A | 1D3032 | 60 |
| 40A | 1D3040 | 60 |
| 50A | 1D3050 | 60 |
| 63A | 1D3063 | 60 |
| 80A | 1D3080 | 60 |
| 100A | 1D3100 | 60 |
| ln 4P | Code | |
| 32A | 1D4032 | 45 |
| 40A | 1D4040 | 45 |
| 50A | 1D4050 | 45 |
| 63A | 1D4063 | 45 |
| 80A | 1D4080 | 45 |
| 100A | 1D4100 | 45 |

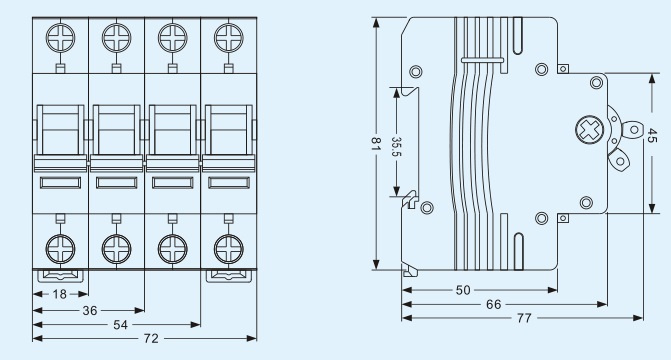

Dimensions (mm)
