| Prod Model: |
BB-IFR26650/3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Bb |
| Battery Type: |
Inr26650 3.2V 3000mAh |
| Dimension: |
26*65mm |
| Weight: |
80g |
| Usage: |
Battery Pack |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
| Type: |
LiFePO4 |
| Nominal Voltage: |
3.2V |
| Electrolyte: |
LiFePO4 |
Product Description

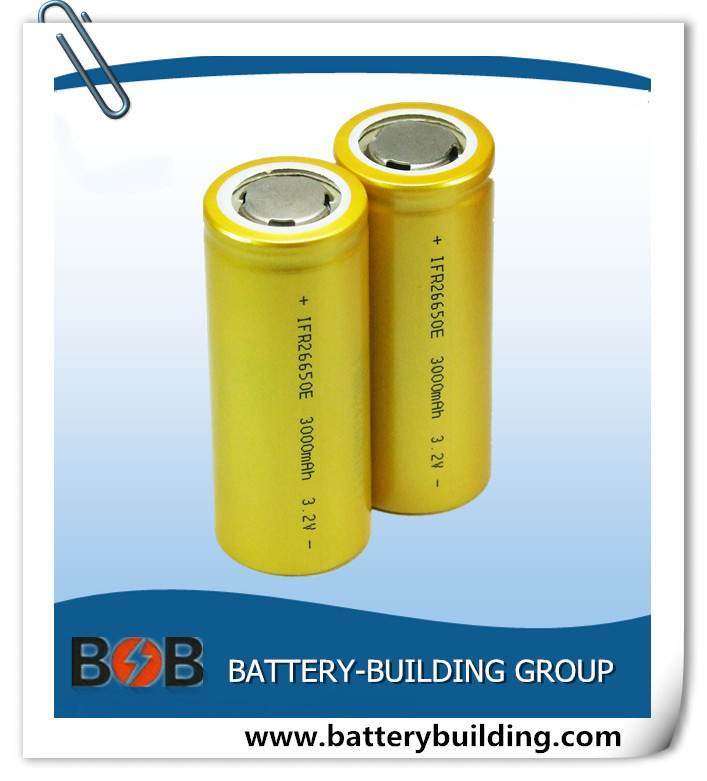

IFR26650 3000mAh lithium ion cell energy cell
Details:
1) 26650 LiFePO4 cell
2) Nomianl Voltage:3.2V
3) Nomianl Capacity:3000
4) Size:26*65mm(Diameter*Height)
Standard charge: 675mA, 3.65V CC/CV
Standard discharge: 30,000mA, 2.0V CC
Nominal capacity: 3,000mAh CC/CV, 0.5C5mA
Minimum capacity: 2,950mAh CC/CV, 0.5C5mA
Internal resistance: ≤60mΩ AC, 1 kHz
Nominal voltage: 3.2V
Charge cut-off voltage: 3.65±0.05V
Charge cut-off current: 20mA constant voltage
Discharge cut-off voltage: 2.0V
Charging time: 2.5hrs 0.5C
weight: 85±2g
Standard charging method: 0.5C 2.5hrs(CC/CV)
Quick charging method: 3C 25min(CC/CV)
Maximum continuous discharge rate: 3C
If battery surface temperature has not reached 80°C, discharging rate could be higher
Pulse discharging: 8 seconds 5C
Cycle life: ≥2,000times
Charging temperature: 0 to 45°C
Environment temperature, battery surface temperature must be less than 65°C
Discharging temperature: -20 to 60°C
Recommended long-term storage temperature: 0 to 35°C
Storage life: one year
Appearance: no deformations, stains, corrosion or electrolyte leakages
Advantages:
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price& High quality
9, Good consistency, low self discharge
10, Light weight, small size
Features:
1, Longer storage life than NiMH Batteries
2, Light weight and higher energy density than any rechargeable battery
3, Installed IC chip will prevent the battery pack from over charge and over discharge.
It helps protect battery chemistry integrity and prolongs battery life.
4, Installed polyswitch will cut off power if battery discharge current more than 6.6Ah
5, Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power
6, Supply which requires compact size and lighter weight
7, The battery module is wrap by PVC
Others:
1, OEM orders are available
2, Superior quality and cost-performance ratio
3, Tags, plugs and connectors are available
4, We could design and produce the battery pack with plastic shell and assembly procession for customized configurations is available (we could design and develop Li-ion battery according to your product work performance & structure apprearance)
Other models:
| Model. | Description | Weight(g) | discharge |
|
|
| USA K2 IFR 18650P 3.2V | 1200mAh | 45 | 30C/60C |
| IFR 18650P 3.2V | 1100mAh | 45 | 20C/30C |
| IFR 18650E 3.2V | 1500mAh | 45 | 3C/5C |
| USA K2 26650Ev 3.2V | 3200mAh | 85 | 5C/10C |
| USA K2 26650P 3.2V | 2600mAh | 85 | 30C/60C |
| IFR 18650P 3.2V | 1500mAh | 45 | 15C |
| IFR 38120S 3.2V | 10Ah | 330 | 5C/8C |
| IFR 38120P 3.2V | 10Ah | 330 | 10C/20C |
| ICR 18650E 3.7V | 2200mAh | 45 | 3C |
| ICR 26650E 3.7V | 4000mAh | 82 | 2C |
| ICR 26650E 3.7V | 4500mAh | 82 | 2C |
| ICR26700E 3.7V | 5000mAh | 85 | 2C |
| SAMSUNG INR18650-13P/13L | 1300mAh | 44.5 | 10/20C |
| SAMSUNG INR18650-15K | 1500mAh | 44.5 | 10C |
| SAMSUNG INR18650-15Q | 1500mAh | 44.5 | 12C |
| SAMSUNG INR18650-15M | 1500mAh | 44.5 | 18C |
| SAMSUNG INR18650-13Q | 1300mAh | 44.5 | 15C |
| SAMSUNG INR18650-20Q | 2000mAh | 44.5 | 8C |
| SAMSUNG INR18650-20R | 2000mAh | 44.5 | 11C |
| SAMSUNG ICR18650-22FM | 22OOmAh | 45 | 2C |
| SAMSUNG ICR18650-22P 3.7V | 2200mAh | 45 | 5C |
| SAMSUNG ICR18650-26F/26FM/26H | 2600mAh | 45 | 2C |
| SAMSUNG ICR18650-28A | 2800mAh | 45 | 2C |
| SAMSUNG ICR18650-29E | 2900mAh | 45 | 2C |
| SAMSUNG ICR18650-30A/30B | 3000mAh | 45 | 2C |
| SAMSUNG ICR18650-32A | 3200mAh | 48 | 2C |
| Panasonic NCR18650PF | 2900mAh | 45 | 2C |
| Panasonic NCR18650BD | 3200mAh | 47 | 3C |
| Panasonic NCR18650B | 34OOmAh | 45.9 | 1C |
| Panasonic NCR18650A | 3100mAh | 45 | 2C |
| LG 18650 HE2 | 2500mAh | 48 | 12.5C |
| LG 18650 D1 | 3000mAh | 48.5 | 2C |
| LG 18650 C2 | 2800mAh | 48 | 2C |
| LG 18650 B4 | 2600mAh | 48 | 2C |
| LG 18650 S3 | 2200mAh | 48 | 2C |
| LG 18650 MF1 | 22OOmAh | 48 | 5C |
