IGBT Double Conversion Online UPS for Security System

IGBT Double Conversion Online UPS for Security System
Price: US $ 1-100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Queen Star Series 1-3Kva
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 115 - 300VAC
Overload Rating: 125% Overload,1min
Power Factor: 0.99
Phase: Single Phase
Type: On-line
Protection: Short Circuit
Brand: Upsen

Product Description

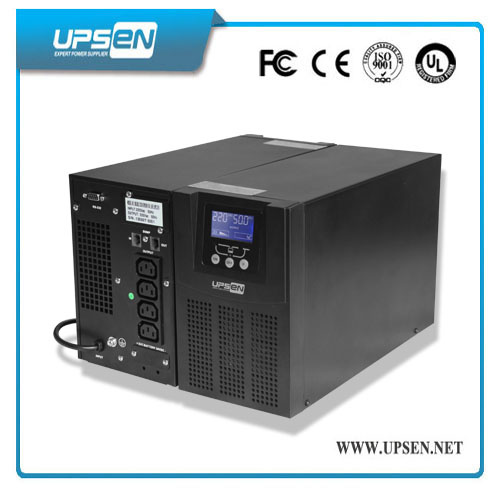

IGBT Double Conversion Online UPS for security system
Model: High Frequency Online UPS Queen Star Series 1K-3Kva (1ph in/1ph out)



Key Features:

1.     Double conversion on-line design, including output isolation transformer

2.     Durable and reliable industrial design, strong load compatibility

3.     Self-diagnosis when UPS start up

4.     UPS with Wide input range, support kinds of generator

5.     Emergency power off function (EPO)

6.     Cold start(DC power on)

7.     ECO function, Economic function (Optional)

8.     Compact design and less noise

9.     Lightening and Surge protection 1050J

10.  Optional SNMP card slot

11.   UPS wit Smart RS232, RJ11, RJ45, EPO (USB and SNMP card optional)

12.   Fully meet saltus of  the load  from 0 to 100%

13.   UPS Input PFC Power Correction Function

14.   Advanced MCU microprocessor control technology

15.   3-stage extendable charging design for optimized battery performance



UPS Application

Home, Office, Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom, Bank system, ATM, Computers, Railway,  security system, CCTV,  Industrial automatic equipment, SMT chip mounter equipment.Army, Programmable Logic Controller (PLC), Direct Digital Controller, Building Automation System (BAS) etc.


Technical Specification

MODELQ1KQ1KLQ2KQ2KLQ3KQ3KL
Rated capacity 1KVA/800W2KVA/1600W3KVA/2400W
InputVoltage115 - 300Vac
  Frequency40-60Hz / 50-70Hz
Power factor0.99
OutputVoltage 220/230Vac(1±2%)
  Frequency

Synchronize with utility power(utility mode);

50 / 60Hz ± 0.2Hz(battery mode)

On-load factor0.8
Overload rating  125% overload,1min
BatteryType Valve-control lead acid maintenance-free battery
Back up time

> 11min

(half load)

External

> 11min

(half load)

External

> 11min

(half load)

External
Rated voltage 36V72V96V
Transfer time0
Operating environmentHumidity: 20%-90%, Temperature:0oC-40oC
Size (WxDxH)mm350 x 144 x 229424 x 190 x 328424 x 190 x 328
Net Weight(kg)11.55.722.21026.310




Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
