IGBT Snubber Circuit Capacitor

Name: IGBT Snubber Circuit Capacitor
Brand: all-electronics-online.com
SKU: 802090305
Availability: InStock
Rating: 4.9 (126 reviews)

Price:	US $ 1-5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IGBT
Type:	Polypropylene Capacitor
Application:	IGBT Snubber,Inverter Welder,UPS
Package Type:	Through Hole
Capacitance:	1UF~50UF
Usage:	IGBT Snubber

Product Description

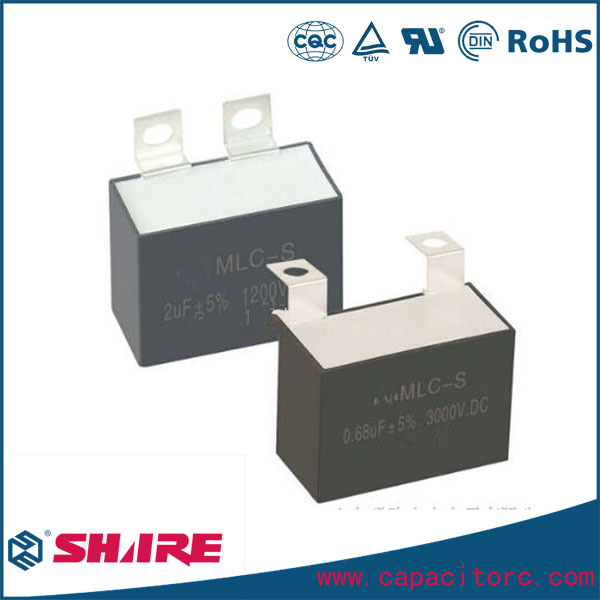

IGBT Snubber Film Capacitor

Features
(1) Adopt double side metallized Polyester film construction; High voltage, Heavy current shock for high frequency circuit.
(2) Used metallized film material, with self-healing property, it has long life time (>=100,000h); small inherent temperature rise.
(3) Tinned copper lugs for screw fixing, plastic shell fill with UL94-V0 resin.
(4) Film capacitor performance is stable and reliable.
(5) Non-inductive structure, Low ESR and ESL.
(6) High dV/dt, compliance with RoHS.

Applications

1) Used for IGBT snubber circuit.
2) Used in welders, inverters, UPS, EPS
3) Used in inductance heating machine

Technical Specification

Temperature Range	-40°C~+85°C
Capacity Range	0.068~9 μF
Capacitance deviation	±5%(J),±10%(K)
Voltage	700~2500VDC
Voltage between Terminals	1.75Un/10s
Voltage Terminals-case	1.75Un+1000VDC 10s 50Hz
Dissipation factor	tgδ≤0.0006(at 10KHz 25°C)
Insulation resistance	C*Ri≥30000S(at 25°C 100V.DC)
Flame-retardant	UL94-V0
Stray inductance	≤ 30nH
Irms Current	8-35A
Failure rate	<30 FIT
Reference Standard	Enterprise standards in line with IEC61071,
Case components	Plastic shell
Terminals form	Tinned copper lugs
Installation type	Screw fixing
