| Prod Model: |
Green Star Series 1-3Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transfer Time: |
0 |
| Interface: |
RS232/RJ45 |
| Battery Type: |
Lead Acid Battery |
| Output Wave: |
Pure Sine Wave |
| Display: |
LED or LCD |
| Inbuilt Batteries: |
Yes |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

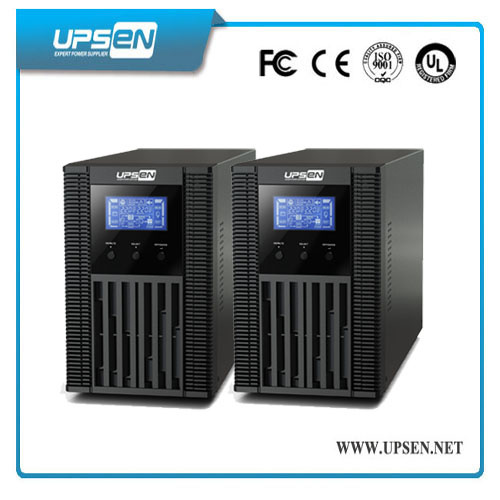

IGBT UPS Online Double-Conversion UPS with Intelligent RS232
Model:High Frequency Online UPS Green Star Series 1K-3Kva (1ph in/1ph out)
Key Features
1:Output power factor 0.8
2:Generator compatible
3:Converter mode available
4:Input power factor correction
5:ECO mode and EPO function
6:Built-in output isolation transformer
7:Microprocessor control optimizes reliability
8:Sealed lead-acid, maintenance free battery
9:Function of automatically switching on or off
10:CPU controlled UPS, suitable for any terminal users
11:Intelligent RS232 and dry contact communication port
12:Advanced PFC technology and high-input power factor
13:Automatic Voltage Regulation with wide input voltage 100 to 300V AC
14:Comprehensive display allows easy monitoring and access of UPS status
15:ECO mode for energy saving, UPS with 93% Efficiency under AC Mode
16:Provided with overload, short circuit, over voltage and under voltage protections
Technical Specification
| GREEN STAR ONLINE UPS SELECTION GUIDE |
| MODEL | G1K (L) | G2K (L) | G3K (L) |
| PHASE | Single phase with ground |
| CAPACITY | 1000 VA / 800 W | 2000 VA / 1600 W | 3000 VA / 2400 W |
| INPUT |
| Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Input Voltage Range | 55-145 VAC or 110-300 VAC |
| Frequency Range | | 40Hz ~ 70 Hz |
| Power Factor | >= 0.99 @ Nominal Voltage (100% load) |
| OUTPUT |
| Output Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 47~ 53 Hz or 57 ~ 63 Hz |
| Frequency Range (Batt. Mode) | 50 Hz or 60Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 3 % THD (Linear Load); <= 6 % THD (Non-linear Load) |
| Transfer Time | AC to DC | Zero |
| Inverter to Bypass | 4 ms (Typical) |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| To AC Mode | 88% | 89% | 90% |
| To Battery Mode | 83% | 87% | 88% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH | 12 V / 7AH | 12 V / 7 AH |
| Numbers | 2 | 6 | 6 |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Charging Current (max.) | 1.0 A |
| Charging Voltage | 27.4VDC ± 1% | 82.1 VDC ±1% | 82.1 VDC ±1% |
| Long-run Model* | Battery Type | Depending on the capacity of external batteries |
| Numbers | 3 | 6 | 8 |
| Charging Current (max.) | 1.0A/2.0A/4.0A/6.0 A |
| Charging Voltage | 41.0VDC ± 1% | 82.1 VDC ±1% | 109.4VDC ±1% |
| INDICATORS |
| LCD |
Load level, Battery level, AC mode,
Battery mode, Bypass mode, and Fault indicators |
ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continously sounding |
| PHYSICAL |
| Standard Model | Dimension, D x W x H (mm) | 397 X 145 X 220 | 419X190X318 |
| Net Weight (kgs) | 13 | 26 | 28 |
| Long-run Model* | Dimension, D x W x H (mm) | 282 x 145 x 220 | 397 X 145 X 220 |
| Net Weight (kgs) | 4.6 | 6.8 | 7.4 |
| ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 50dBA @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
* Long-run model is only available in 200/208/220/230/240VAC systems.
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
