| Prod Model: |
KSI-250KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Date: |
7 Days |
| Phase: |
Three |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
201 - 300W |
| Brand: |
Kingsun |
Product Description
| Type | KSI-250KW |
| Isolation | Low frequency transformer isolation |
| Max. DC input power | 275KWp |
| Max. DC input voltage | 900Vdc |
| Max.PV voltage range(MPPT) | 450Vdc~820Vdc |
| Recommended number of PV module voltage@string | About35V@17string |
| Battery board Joint type | connection terminal |
| Max. Input current | 600A |
| Nominal AC output power | 250KW |
| THD of AC current | <2.5%(nominal power) |
| Power factor | >0.99 |
| Max. Efficiency | 97.3% |
| Euro efficiency | 96.7% |
| Permitted voltage range | 310Vac~450Vac |
| Permitted frequency range | 47.5Hz~51.5Hz |
| Internal power consumption an night | <100W |
Automatically put into
operation conditions | When the DC input and power grids meet to the requirements, the inverters automated operation |
| Automatic restart time | 5min(time adjustable) |
| Protection | Possess the protecting function of polarity connecting contrary, short circuit, island effects, over heat,over land |
| Comm. interfaces | RS485/RS232/GPRS/Ethernet |
| Operating Temp. | -20°C~+55°C |
| Relative humidity | 0~95%,no condensing |
| Altitude(m) | ≤2000meters(Over 2000 meters to reduce the using amount) |
| Cooling method | Controlled forced-air cool |
| Noise | ≤60dB |
| Protection degree | IP20(indoor) |
| Size(W*L*H mm) | 2000*800*2060 |
| Weight(kg) | 1700 |

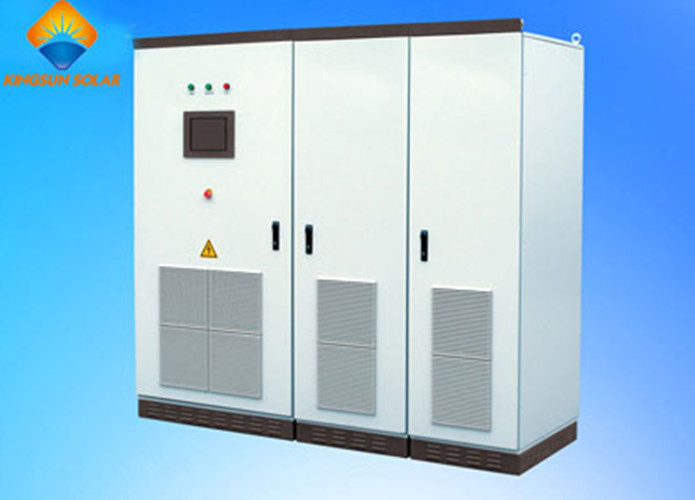

KSI-250KW PV on-grid Technical Features:
1.Adopt USA TI company control DSP chip.
2.MPPT(Maximum Power Point Tracking)Technology.MTTP efficiency>99%
3.With a manually input DC breaking switch,manually breaking switch from AC power grid .
4.With advanced anti-island inspection scheme and perfect monitoring function.
5.With overload,short circuit,abnormal grid protection,and alarm functions.
6.Wide input DC range.
7.User-friendly operation interface,English menu,can display the operation data,real-time
fault data,historical fault data,and the status of equipment.
8. Provide including RS485/RS232 or Ethernet remote communication interface.RS485 follow the Modbus communication protocol;Ethernet interface support TCP/IP protocol,support to
obtain dynamic(DHCP) or static IP address.
9With isolation transformer, much more safe and less THD.
