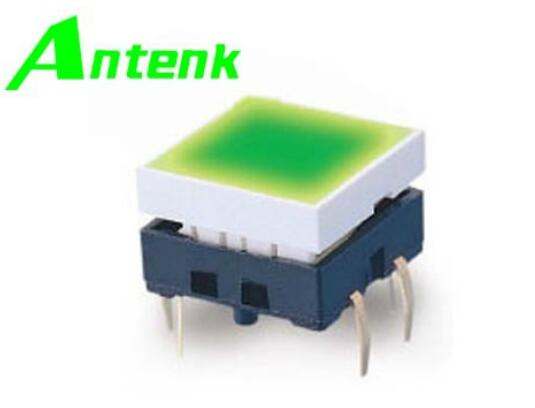

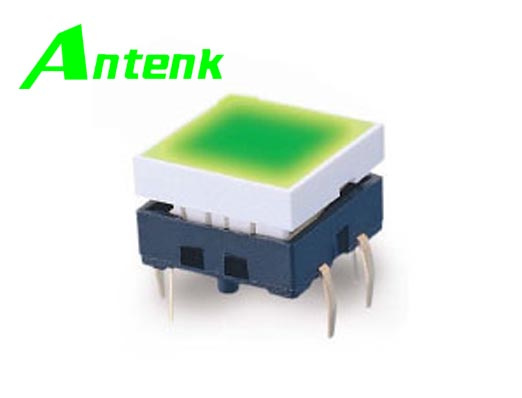

Illuminated Tact Switches

Name: Illuminated Tact Switches
Brand: all-electronics-online.com
SKU: 651504985
Availability: InStock
Rating: 4.5 (137 reviews)

Price:	US $ 0.15/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Tact Switches
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Type:	SMD Type
Installation Form:	Surface Mount
Structure:	2-Point Contact
Package:	DIP Plug Taping Package
Application:	Audio and Video Products
Shape:	Square
Certification:	RoHS

Product Description

Rating: 50mA 12VDC
Insulation Resistance: 100M ohm (at 100VDC)
Dielectric Strength: AC 250V
Contact Resistance: 100m ohm Max (lnitial)
Electrically Life: 100, 000 Cycles
Operating Force: 250 + - 100gf
SPST, Tactile Feeling, llluminated 12 X 12mm, 15 X 15mm, 17.4 X 17.4mm cap size
1 to 3 LEDs
Optional LED and cap color
PCB mounting

Specification:
Rating: 12V DC, 100mA
Initial contact resistance: 20mΩ Maximum
Insulation resistance: 100M minimum
Dielectric strength: 250V AC for 1 minute
