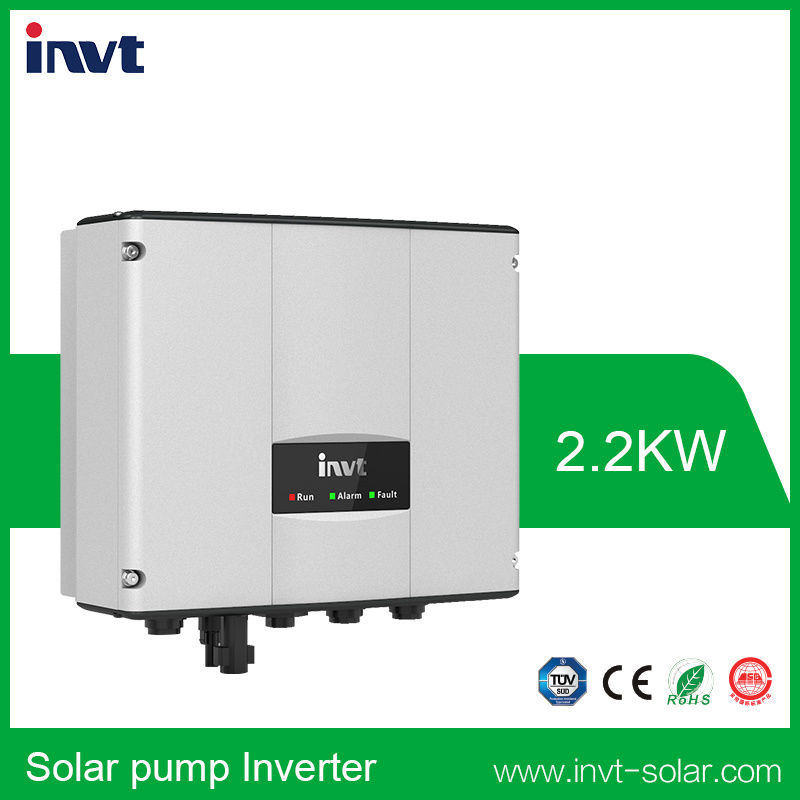

Imars Series Bpd 2.2kw Solar Pump Inverter

Name: Imars Series Bpd 2.2kw Solar Pump Inverter
Brand: all-electronics-online.com
SKU: 690808831
Availability: InStock
Rating: 4.5 (117 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	2.2KW

Product Description

Description
MG series single phase inverter is developed by INVT for residential users. MG series inverters have the advantages of compact size, light weight, easy installation and maintenance, and are above all cost efficient.

	BPD0K7TN	BPD1K5TN	BPD2K2TN	BPD0K7TNAC	BPD1K5TNAC	BPD2K2TNAC
Input(DC)
Max. DC voltage(V)	450	450		450	450
Starting voltage(V)	80	100		80	100
Minimum working voltage(V)	60	80		60	80
MPPT Operating Voltage Range(V)	80-400	120-400		80-400	120-400
Number of MPPT	1
Max. DC Current(A)	9	12	12	9	12	12
Bypass input(AC)
Input voltage(Vac)	N/A			220/230/240(1PH)-15%+10%
Input frequency(Hz)	N/A			47-63
Input connect method	N/A			1P2L
Output(AC)
Rated power(W)	750	1500	2200	750	1500	2200
Rated current(A)	5.1(1PH)	10.2(1Ph)	14(1PH)	5.1(1PH)	10.2(1PH)	14(1PH)
	4.2(3PH)	7.5(3PH)	10(3PH)	4.2(3PH)	7.5(3PH)	10(3PH)
Output voltage(Vac)	0~(Input voltage)
Output connect method	1P2L/3P3L
Output frequency(Hz)	1~400
Performance
Control mode	Motor control technology
Topology of motor	Asynchronous machine
Other parameter
Dimension(HWDmm)	280×300×130
Weight(Kg)	≤10.5
Degree of protection	IP65
Cooling method	Natural Cooling method
HMMI	LED screen extend(not support LCD screen)
Communication
External communication	RS485/3 digital Inputs
Certifications
Certification	CE ;IEC61800-3 C3
Working environment
Ambient temperature	-25ºC~60ºC(derate after 45ºC)
Working altitude(m)	3000(more than 2000m derating)
Design life	5 years(warranty 18months)
Recommended solar array configuration
250Wp(Open-circuit voltage 38V±3V)	4*1	8*1	11*1	4*1	8*1	11*1

300Wp(Open-circuit voltage 45V±3V)	3*1	6*1	9*1	3*1	6*1	9*1

INVT, established in 2002, is committed to be the globally leading and respected provider for products and services of industrial automation and electric power. In 2010, it listed as an A-share company on the Shenzhen Stock Exchange (stock code: 002334).

INVT is a national-level high-tech company with nine subsidiaries, whose business involves AC drive, industrial control, new energy, rail traction, servo and motion control, energy management, building intelligence system, etc.

PV business is the most important part of INVT electric power products and service, which is committed to provide the most stable solar inverters to the world.

Based on the understanding of development and the requirement of solar grid-tied power generation system and following the stable, high efficient and maintenance-free product design concept, accumulated 14 years of R&D and application experience in the field of core inverter and control technology, INVT is extending its PV business and has launched the iMars series of grid-tied solar inverters successfully.

IMars series grid-tied solar inverters have a better performance on the aspect of product stability, efficient power transformation, low harmonics, safe power grid access and so on. They can be widely used in BIPV(house roof, office building roof and factory roof), BAPV(integrated residential buildings), commercial rooftop plants and on ground solar power plants, to provide customers with stable, safe and efficient renewable energy.

Up to now, INVT solar inverters have been widely used by over 200, 000 happy customers in more than 60 countries.
