Imax 40ka Type 2 Power Energy System Surge Arrester
| Price: |
US $ 10-25/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
PC40-1000VDC |
| Nominal Working Voltage: |
1000VDC |
| Max Discharge Current(Ka): |
40 |
| Dimension (mm): |
90×54×65 mm |
| Protection Level(20ka,8/20µs): |
No More Than 3.5kv |
| Protection Model: |
3: Star Type, 2:+/- -PE |
| Index Of Protection: |
IP20 |
| Mounting Type: |
DIN Rail : 35mm |
| Housing Material: |
Anti-Flaming |
| Operating Environment: |
Temperature:-40-+85oc Humidity: ≤95% |
| Remote Control (Optional): |
Normally Closed, Normally Open or COM |
| Type: |
Power Source Arrester |
| Structure: |
Valve Type Arrester |
| Installation: |
Parallel Arrester |
| Certification: |
FCC, Ce, National Type Test |
| Brand: |
Opplei |
Product Description
DC power photovoltaic system 1000VDC 40KA surge protector Model: PC40-1000VDC1. Product featuresThermal disconnect device
High current capacity, quick response
Low residual voltage, free of leakage current
Remote warning
Easy installation with Din rail mounting
Plug connectors for quick and easy connection or rewiring2. ApplicationsPV combiner box
DC power system
DC distribution box
DC switchboard
Electronic information system box
Output of second Power equipment3. Technical data| Model | PC40-1000VDC |
| Nominal operating voltage Un | 1200VDC |
| Maximum continuous operating voltage Uc | 1000VDC |
| Nominal discharge current In (8/20μs) | 20KA |
| Maximum discharge current Imax (8/20μs) | 40KA |
| Protection level Up (8/20μs,20KA) | ≤3.5KV |
| Response time Ta | ≤25ns |
| Protection modes | 3: star type, 2:+/- -PE |
| Dimension | 90*54*65mm |
| Weight per unit | 387g |
| Mounting type | DIN rail : 35mm |
| Housing material | Anti-flaming |
| Index of protection | IP20 |
| Operating environment | Temperature:-40-+85ºC humidity: ≤95% |
| Remote control (optional) | Normally closed, normally open or COM |
| Warranty | Five-year warranty, three-year replacement |
| Related models | PC40-800VDC, PC40-600VDC,PC40-275DC,PC40-48DC |
Isolation:1, the security isolation: consultative services isolated \ IGBT drive, surge protection, lightning protection of medical electronic equipment (such as the human body contact isolation protection)
2, noise isolated: (analog circuits and digital circuits, strong or weak signal isolation)
3, grounding loop to eliminate: remote signal transmission, distributed power supply system
Second, protection: short circuit protection, over voltage protection, under-voltage protection, over-current protection, and other protection
Three, voltage transformation: booster transform \ \ step-down transform AC/DC conversion (AC/DC, DC/AC) \ polar transformation (positive and negative polarity conversion, single power supply and the positive and negative power conversion, single power supply and power conversion)
Four, voltage regulator, ac mains power supply \ remote dc power supply, distributed power supply system, battery power supply

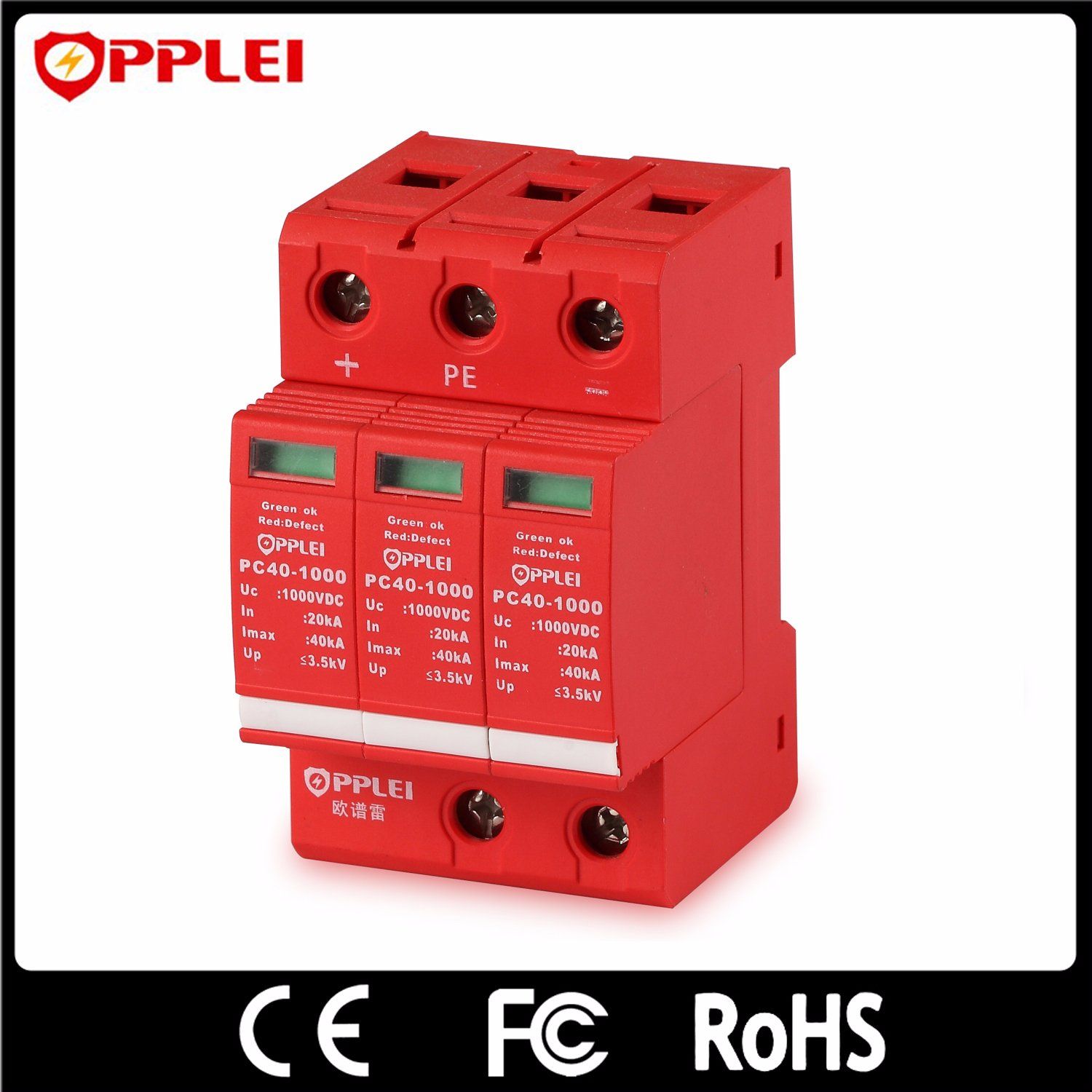

Five, the noise reduction: active filter4.Product Picture



6. FQA:
Q: Can I get some samples?
A: Yes, Sample orders welcomed.
Q: Can I use my own Logo or design on goods?
A: Yes, OEM Support. Customized logo and design on mass production are available.
Q:What is the delivery time?
A: 3 days for samples, 7-10 working days for mass production after payment.
Q: Can you give me a discount?
A: Yes. Big purchase. Large discount.
Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc
Q: Can I trust you?
A: Absolutely YES, We are "Made In China" verified supplier for many years.
Q: How is the After-Sale Service?
A: We assure 5 years warranty, 3 years replacement, any question we have technical department to help you.
Q: May I visit your factory?
A:Sure, welcome any time. We can also pick you up at airport or station.7.Contact information:Lyric Ran International Regional Manager Mob: +86 17630058769
Shenzhen Opplei Technologies Co., Ltd is a high-tech enterprise engaged professionally in research, production, sales and system solutions of the lightning protection(Surge Protection Device) and power distribution unit for cabinet(PDU). Widely used in electric power, water conservancy, transportation, communications, security, mining, petrochemical industries, etc.
There is 1200 square meters factory and capable of producing 800, 000 units of regular models annually.
The headquarters of this company is located in High-tech park Longhua district, Shenzhen, we adhering to the "Trustworthiness Cooperation, Quality First", has passed ISO9001: 2008 quality management system certification, CE, FCC, RoHS authoritative certification, products have met the national standard and the industry standard, also got the type test report issued by the National Weather Service. We set up offices in Beijing, Shanghai, Guangzhou, Changsha, Wuhan, Chengdu, Xi 'an, Guiyang, etc. Products have been exported to the United States, Poland, Singapore, South Africa and other countries, formed the global sales and services network. Providing customers with high-quality localization, OEM, ODM services and five years warranty.
The headquarters of this company is located in High-tech park Nanshan district, Shenzhen, we adhering to the "Trustworthiness Cooperation, Quality First", has passed ISO9001: 2000 quality management system certification, ISO14001: 2004 environmental management system certification and CE, CCC, RoHS authoritative certification, products have met the national standard and the industry standard, also got the type test report issued by the National Weather Service. We set up offices in Beijing, Shanghai, Guangzhou, Changsha, Wuhan, Chengdu, Xi 'an, Guiyang, etc. Products have been exported to the United States, Poland, Singapore, South Africa and other countries, formed the global sales and services network, providing customers with high-quality localization services and five years warranty.
We can provide:
-- Safe and reliable products and complete system solutions:
The company persists in high investment on R&D of new products and the practical application of many projects, let us have the corresponding creativity and rich experience, and this will be a good guarantee for you solve the problems.
-- Advanced, professional technical support:
Many first-class talents with the new technology of persistent spirit, enables us to guarantee to provide you with the most professional applications and the most considerate service.
- -Perfect, quick after-sales service:
With the fastest speed, the most effective way, the most perfect after-sale service system to lift your worries.
Our R&D department is run by some of the country's mostly leading experts in the field with rich experience in the manufacturing and design of lightning protection device.
Our Quality Service: In order to meet the customer's demand and give a quality service, Techwin persists in the policy with "FIRST QUALITY, FIRST CUSTOMER". Our products are manufactured according to international and domestic standards and under mostly strict quality standards on ISO9001.
Our Mission: Satisfy the necessities of our customers with the sale of electronic products of high quality, to the best available price in the market and in the time that our client needs it.
Our After-sale Service: We provide customer service and technical support, a comprehensive warranty program. Additionally, as part of our customer service and technical support, our staff of dedicated engineers is available to assist you with custom designs for unique projects and applications. We ensure that all products are accepted by authorities.
Our Added Value: Our experience and expertise is our value and your best guarantee.
