| Prod Model: |
Cartridge Heater |
Product Description

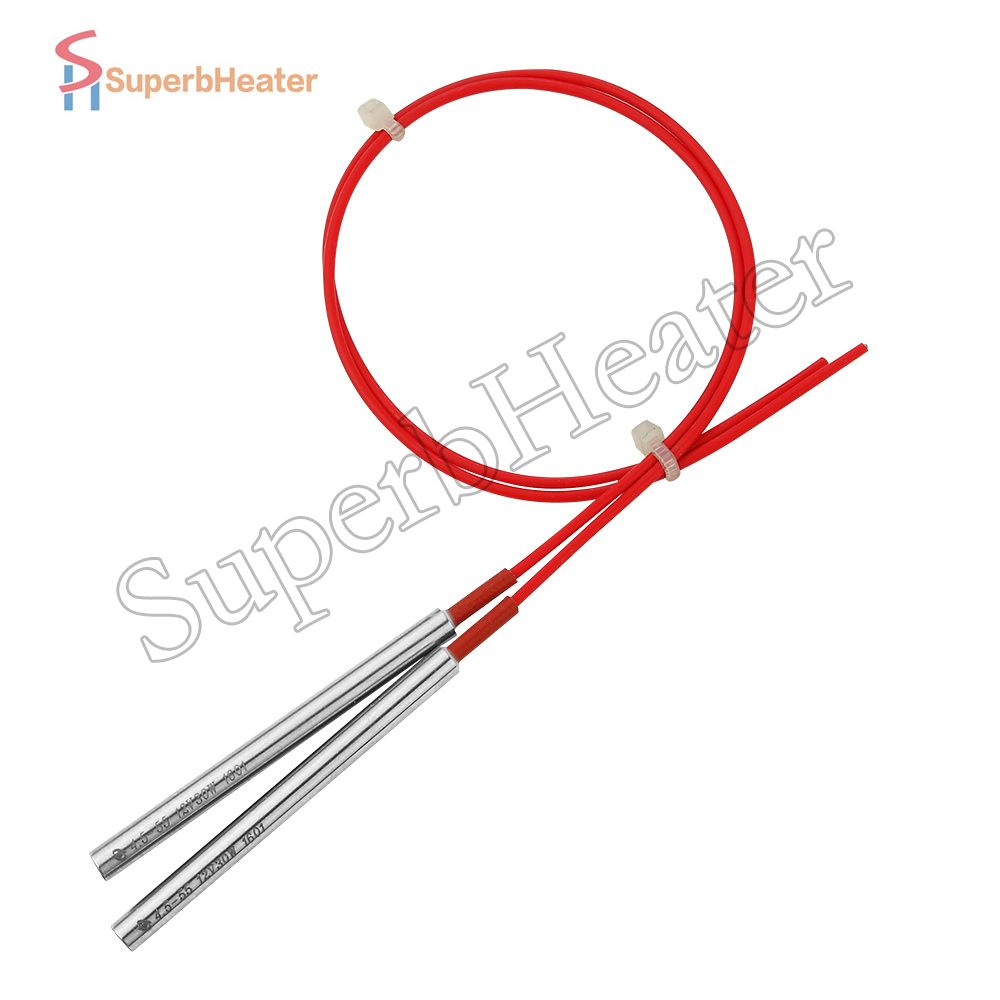

Immersion Cartridge Heater Heating Element Tubular Heating Rod
We manufacture Cartridge Heaters engineered to satisfy the full spectrum of Cartridge Heater applications. Whilst a standard range of Cartridge heaters are available, we specialise in designing and manufacturing cartridge heaters to our customers requirements. It is important to choose the correct construction heater to suit your application.
Performance parameter:
Cartridge heater for | Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more. |
The maximum temperature | 927°C |
Available with a built in Thermocouple | Type J or K Thermocouple |
Diameter (mm) | 2.50mm;2.80mm;3mm;3.2mm;3.5mm;3.8mm;4mm;4.5mm;5mm;6mm;;6.5mm; 7mm;7.5mm;8.0mm;9mm;9.53mm;10mm;10.5mm;11mm;12mm;12.50mm;12.7mm; 13mm;13.50,mm;14mm;15mm;15.88mm;16mm;18mm;19mm;20mm;22mm;25mm; 28mm;30mm;32mm;35mm(Non-standard,can be customized) |
Tube Material | stainless steel 304 321 316L B. 310S C. INCOLOY 625 ;INCOLOY 800;NCF800 INCOLOY 840 |
Resistive material | NiCr8020 |
High voltage stability (temperature) Rated voltage | ≤24V -500V-DC> 24V 1500V-AC |
Insulation resistance (500 [V-DC] unheated) | ≥50MΩ |
The maximum leakage current (253 [V-AC] unheated) | ≤0.5mA |
Length error | ± 0.5mm |
Wattage Tolerance | +5% - 10% (closer tolerances are available upon special request) |
Input voltage | 12V-440V (non-standard can be customized) |
Non-terminal unheated length | <3mm-20mm |
product manual:
Tube diameter | φ2.5mm-φ35mm |
Tolerance | -0.02mm-0.08mm |
Tube material | SS321, SS316L, INCOLY840, Titanium |
Insulation material | high-purity MGO imported from USA |
Resistance wire | Ni80Cr20 |
Density | Max 40W/CM2 |
Operating temperature | Max 927ºC |
Wattage tolerance | +5%,-10% |
Electrical property | leak current is less than 0.5mA |
Input voltage and wattage | customized as request.
|
Element component: 1. China and Europe High-grade nickel chromium resistance wire,
2.Japan and USA MgO core,
3. Seamless Stainless steel tube
4 Built in cable, or swaged in
• Special sizes, wattages, and materials are available upon request;
• Custom-designed to meet your specifications.
• Pin leads are available
Main features:
High-quality materials
Insulation: UCM(UK) Magnesium Oxide Powder ;KANTHAL ,BJH resistance wires ,SS321Seamless Stainless steel tube;OTC(USA) Tateho (Japan) mgo rod...

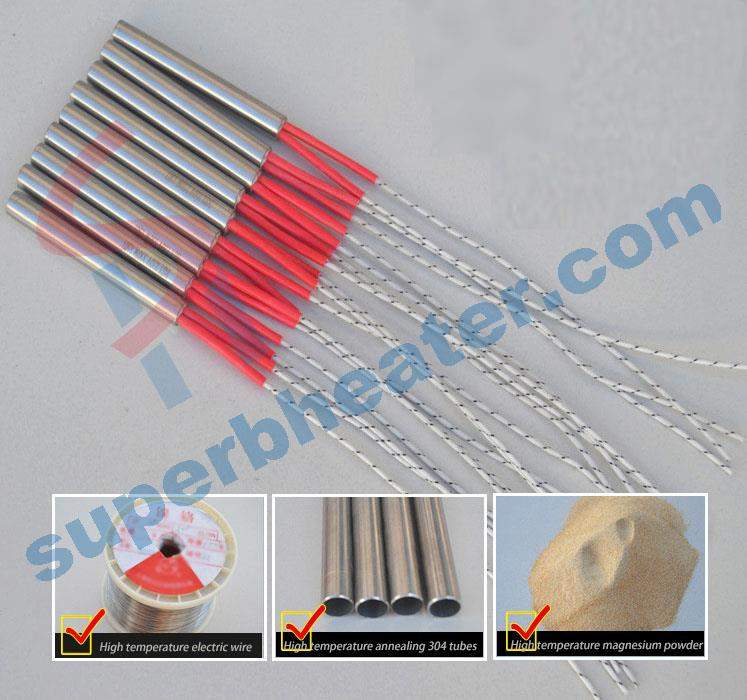

Material show:
OUR ADVANTAGES:
| 1.Delivery time : in stock 1-2days ,out stock 3-7days |
| 2.More than 100 different sizes stock |
| 3.Products are divided into two grades:A grades,B grades |
| 4.Provide OEM service. |
If any question ,please feel free to contact us.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
