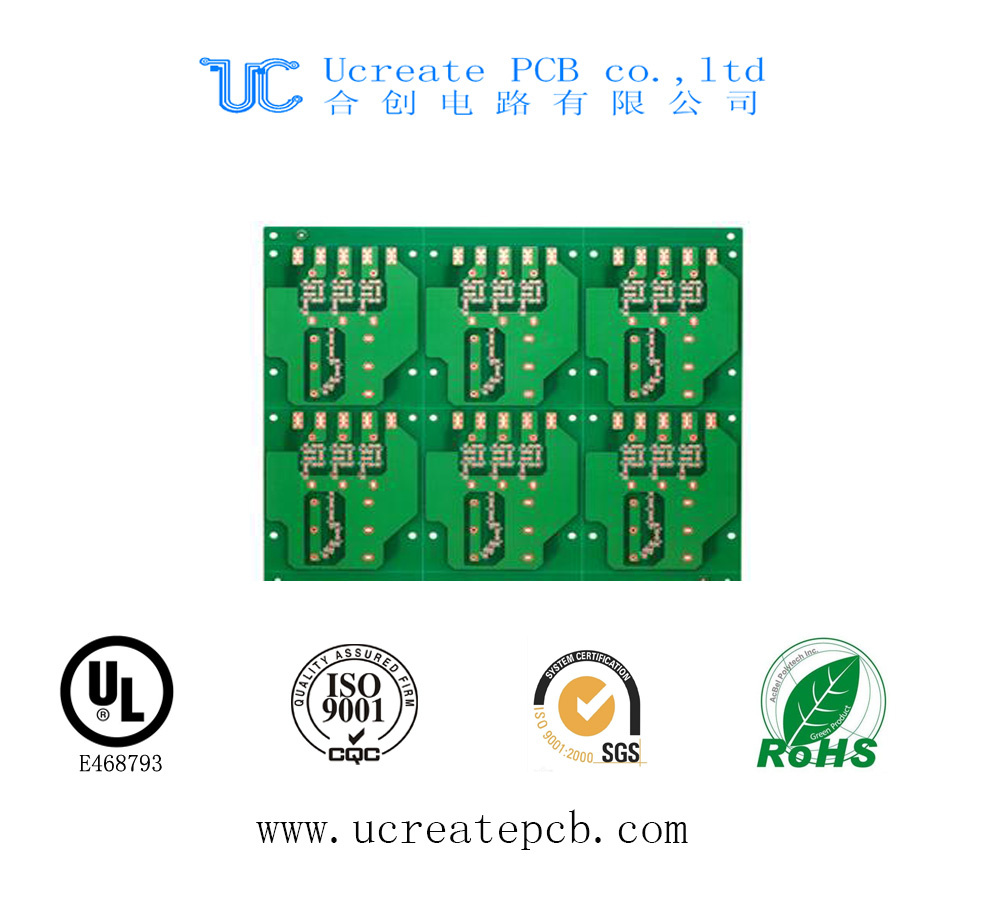

Immersion Gold Multilayer PCB Printed Circuit Board Can OEM

Immersion Gold Multilayer PCB Printed Circuit Board Can OEM
Price: US $ 0.1-0.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: HC000034
Layer: 6
Thickness: 0.96mm
Soldmask: Green
Surface: Plated Gold
Silkscreen: White
Certificates: UL, ISO, Ts16949
Hole Quantity Per PCS: 1200
Min Line Width/ Space: 0.1/0.1mm
Use: Military Electronics Parts
Panel: 1PCS/Set
Type: Rigid Circuit Board
Dielectric: FR-4
Material: Fiberglass Epoxy
Flame Retardant Properties: V0
Brand: UC

Product Description

Medical Fr-4+PI Rigid-flex Immersion gold PCB
Layers: 6L
Material: Fr-4+PI Board
Thickness: 1.2+0.15mm
Copper Thickness: 2.0OZ
Min line width/ space: 0.0075/0.075mm
Surface finish: Immersion gold
Certificate: UL, ISO, TS16949
Application: Medical Electronics

Applications
Industry control

Application

telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect.

Description:

We have 6 Years high frequency pcb production experience
We are certified by ISO13485, TS16949, ULE332411, ISO14001,  ISO9001
70% of our customers are from Europe and North America
We use very good material, such as KB, Shengyi, etc
100% of our prodcuts are tested and 100% pass before delivery
Fast samples for your test


Technical Capabilities
ItemsSpeci.Remark
Max panel size32" x 20.5"(800mm x 520mm)
Min trace width/ space (inner layer)4mil/4mil(0.1mm/0.1mm)
Min PAD (inner layer)5 mil(0.13mm)hole ring width
Min thickness(inner layer)4 mil(0.1mm)without copper
Inner copper thickness1~4 oz
Outer copper thickness0.5~6 oz
Finished board thickness0.4-3.2 mm

Board thickness tolerance control
±0.10 mm±0.10 mm1~4 L
±10%±10%6~8 L
±10%±10%≥10 L
Inner layer treatmentbrown oxidation
Layer count Capability1-30 LAYER
alignment between ML±2mil
Min drilling0.15 mm
Min finished hole0.1 mm
Hole precision±2 mil(±50 um)
tolerance for Slot±3 mil(±75 um)
tolerance for PTH±3 mil(±75um)
tolerance for NPTH±2mil(±50um)
Max Aspect Ratio for PTH8:1
Hole wall copper thickness15-50um
Alignment of outer layers4mil/4mil
Min trace width/space for outer layer4mil/4mil
Tolerance of Etching+/-10%
Thickness of solder maskon trace0.4-1.2mil(10-30um)
at trace corner≥0.2mil(5um)
On base material≤+1.2mil
  Finished thickness

Hardness of solder mask6H
Alignment of solder mask film±2mil(+/-50um)
Min width of solder mask bridge4mil(100um)
Max hole with solder plug0.5mm
Surface finishHAL (Lead or Lead free), immersion Gold, Immersion Nickel, Electric Gold finger, Electric Gold, OSP, Immersion Silver.
Max Nickel thickness for Gold finger280u"(7um)
Max gold thickness for Gold finger30u"(0.75um)
Nickel thickness in Immersion Gold120u"/240u"(3um/6um)
Gold thickness in Immersion Gold2u"/6u"(0.05um/0.15um)
Impedance control and its tolerance50±10%,75±10%,100±10% 110±10%
Trace Anti-stripped strength≥61B/in(≥107g/mm)
bow and twist0.75%

We specilized in :
Ucreate is specialized in the production of a variety of single, double, high multi layers, HDI, the metallic substrate and FPC PCB. With laser drilling machine, CNC drilling machine, automatic machine, automatic exposure machine, large-scale lamination machine, Automatic flow production line, auto panel plating line, auto P.T.H Line, and other precision production equipments and AOI testing machine, flying probe tester machine and other advanced detection equipments.

Production processes:
Material Receiving → IQC → Stock → Material to SMT → SMT Line Loading → Solder Paste/Glue Printing → Chip Mount → Reflow → 100% Visual Inspection → Automated Optical Inspection (AOI) → SMT QC Sampling → SMT Stock → Material to PTH → PTH Line Loading → Plated Through Hole → Wave Soldering → Touch Up → 100% Visual Inspection → PTH QC Sampling → In-Circuit Test (ICT) → Final Assembly → Functional Test (FCT) → Packing → OQC Sampling → Shipping

PCB assembly Equipment:
1. High speed and precision chip placer or multi-function SMD mounter
2. Wave soldering machine
3. Vacuum machine
4. High temperature box
5. Auto-solder paste printer
6. Hot- and mixed-air reflow



1. Components list
(a) Specification, brand, footprint
(b)To short the lead time, please kindly advise us if there is any acceptable components substitution.
(c) Schematic if necessary
2. PCB board information
(a) Gerber files
(b) PCB board processing technic
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Package requirement

Why Choose Us?
1. Your inquiry related to our products or prices will be replied in 24hrs.

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. OEM&ODM,  we can help you to design and put into product.

4. Distributorship are offered for your unique design and some our current models

5. Protection of your sales area, ideas of design and all your private information


Trade Terms:
1. Payment: T/T in advance (Western Union , payple is welcomed)

2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.

3. Sample can be delivered in 3days

4. Shipping freight are quoted under your requests

5. Shipping port: Shen zhen,Mainland China

6. Discounts are offered based on order quantities

7. MOQ: 1PCS


Package &Shipping Methods:
1.Vacuum package with silica gel, Carton box with packing belt.
2. By DHL, UPS, FedEx, TNT
3. By EMS (Usually for Russia Clients)
4. By sea for mass quantity according to customer's requirement
Established in 2004, Ucreate PCB Co., Ltd is a professional manufacturing enterprise majoring in high end and multi-layer Printed Circuit Board.

Along with more than 10 years' development, Ucreate has settled its factories both in Shenzhen and Huizhou city, covering facility area 12000 Square meters, with more than 800 employees, among them, 150 with highly professional who are no less than 10 years expert in PCB field. Now we are reaching a monthly capability of 30000 Square meters.

Our main products range from Multilayer PCB, High frequency PCB, Metal base PCB, Hi-Tg heavy copper foil PCB and Mixed Dielectric base PCB, HDI, rigid-flex PCB, and many other customized PCB with special performance which are widely used in Communication, power supply, computer, consumer electronics, industrial control, medical device, Aeronautics and Astronautics high technology field and spread over America, Europe and some Asia Districts, achieving their satisfication.

Ucreate has been certificated with ISO9001, ISO14001, UL from US and Canada, all of our products are with RoHS certification.

Under the mission " high quality, exact delivery, customers' satisfactions, continuous development, Common innovation ", We believe Ucreate will develop better and better with your participation.
