Immersion Silver Hybrid PCB 10 Mil RO4003c and Fr-4 Combined
| Price: |
US $ 0.99/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-873-V8.73 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Final Height Of PCB: |
1.12 mm ±0.1 |
| Surface Finish: |
Immersion Silver |
| Solder Mask Color: |
Blue |
| Colour Of Component Legend: |
None |
| Minimum Trace And Space: |
9.8 Mil / 7.8 Mil |
| Minimum / Maximum Holes: |
0.7 mm / 2.5 mm |
| Via: |
Minimum Size 0.7mm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4003c and Fr-4 |
| Material: |
Hydrocarbon/Woven Glass and Fiberglass Epoxy |
| Insulation Materials: |
Glass Reinforced Hydrocarbon and Epoxy Resin |
Product Description
1.1 General description

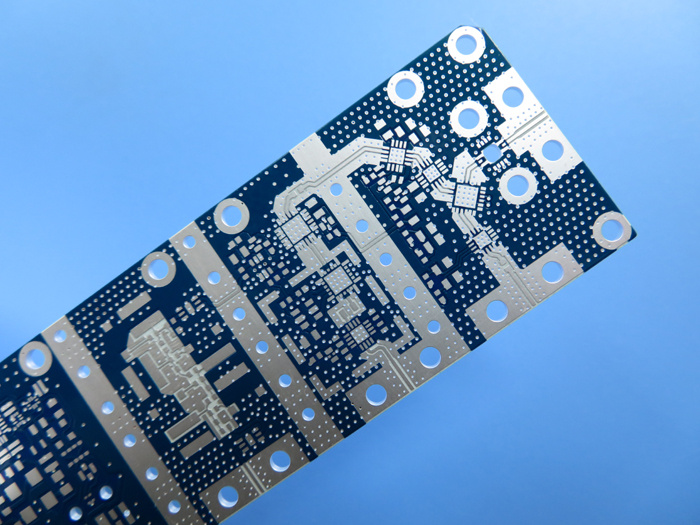

This is a type of mixed PCB built on 10mil RO4003C substrate and FR-4 combined for the
application of SMS Gateway. It's 1.12 mm thick with 4 layers copper of 1oz weight each layer,
white silkscreen on blue solder mask and immersion silver on pads. The base material is from
Rogers Corp supplying single up PCB per panel. They're fabricated per IPC 6012 Class 2 using
supplied Gerber data. Each 25 boards are packed for shipment.
1.2 Features and benifits
a. RO4003C exhibits a stable dielectric constant over a broad frequency range. This makes it
an ideal substrate for broadband applications;
b. Reducing signal loss in high frequency application meets the development needs of
communication technology;
c. Cost reduction over stack-ups with all low loss material;
d. AOI inspection;
e. Electrical test and high voltage test;
f. Wide range of PCB supplying;
g. UL recognized and RoHS Directive-compliant;
h. IPC Class 2 / IPC Class 3.
1.3 Application
Low noise amplifier, Optical coupler, Frequency converter, 4G antenna
1.4 Parameter and data sheet| PCB SIZE | 35 x 100mm=1PCS |
| BOARD TYPE | Multilayer PCB |
| Number of Layers | 4 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| RO4003C 0.254mm |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 0.5mm |
| copper ------- 35um(1oz) MidLayer 2 |
| FR-4 0.2mm |
| copper ------- 18um(0.5oz)+plate BOT layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 9.8 mil / 7.8 mil |
| Minimum / Maximum Holes: | 0.7 mm / 2.5 mm |
| Number of Different Holes: | 3 |
| Number of Drill Holes: | 184 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4003C Tg 280ºC, er<3.38, FR-4 Tg 150ºC |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.12 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion silver |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Blue, KSM-6189BL04/KSM-19H01 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.7mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
