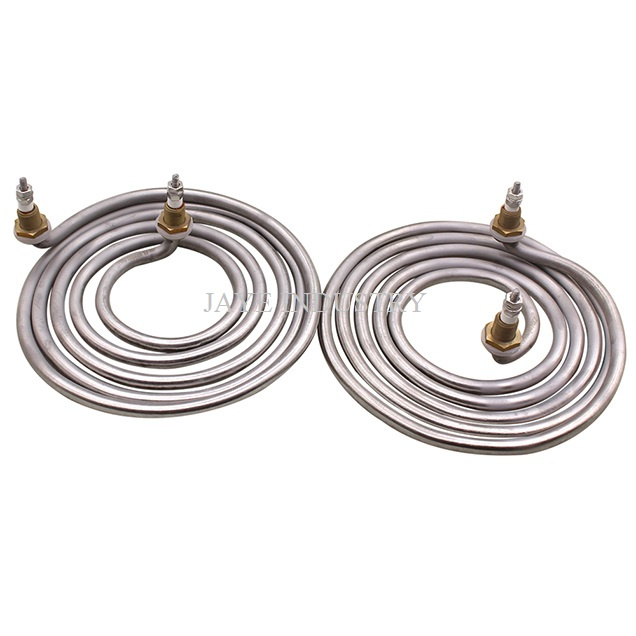

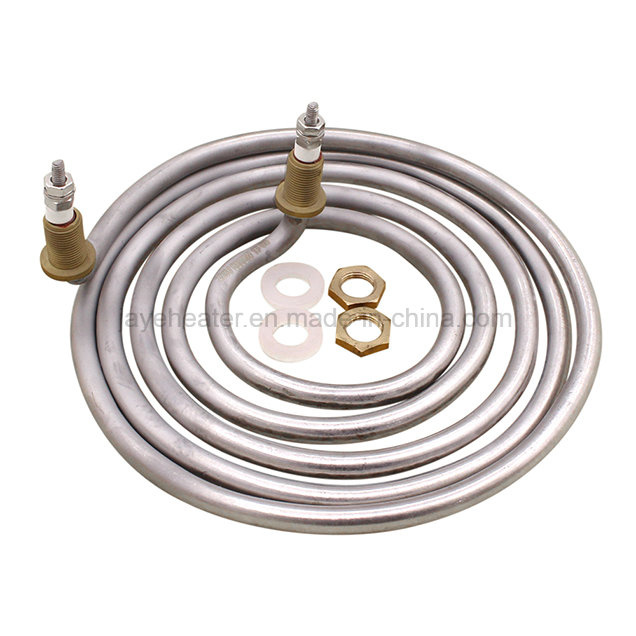

Immersion Spiral Coil Heating Element for Autoclave 220V 6kw

Name: Immersion Spiral Coil Heating Element for Autoclave 220V 6kw
Brand: all-electronics-online.com
SKU: 732332222
Availability: InStock
Rating: 4.3 (74 reviews)

Price:	US $ 3-5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-WH014
Voltage:	110V-550V
Power:	Customized
Diameter:	Customized
Certificate:	Ce ISO
Usage:	Oil Heating, Water Heating, Air Heating
Application:	Heater
Heat Transfer Surface:	Tubular Heat Exchanger
Principle:	Resistance Alloy Wire Heating
HS Code:	85168000

Product Description

Electric Autoclave Heating Element Immersion Heater

JAYE autoclave heating elements are constructed by brazing or welding elements into stainless steel or brass thread. These are intended for direct immersion into fluids and gases. The heater is to be installed via a threaded port in the tank or vessel. Autoclave heating elements are available in a variety of pipe thread sizes and materials. The heating elements are offered in a number of materials suited to a variety of fluid heating applications. Terminal housings are available for indoor, outdoor and hazardous environments. Many options are available. Since we are a made to order company, we can offer a large selection of sizes and configurations. Please contact us for assistance with your application.

SPECIFICATIONS FOR Autoclave Heating Element
Material (SUS304,316,321,Incoloy 800)	SUS304
Voltage	240v
Wattage	2400w
Tube diameter	8mm
Dimension	260x80x115mm
Thread size	M14 Brass

When you have enquiry, Please let us know the below information:
1 tube material
2 voltage power
3 wiring material
4 drawing is preferred
5 Tube Diameter and length.

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
