Immersion Type Level Sensor Price

Name: Immersion Type Level Sensor Price
Brand: all-electronics-online.com
SKU: 756869555
Availability: InStock
Rating: 4.5 (123 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WP311
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electrical Connector:	Cable, Terminal Block
Process Connection:	M20*1.5,
Output Signal:	4-20mA (1-5V); 4-20mA with Hart Protocol
Operation Temperature:	-40~85 Celsius,
Power Supply:	24VDC
Name:	Immersion Type Level Sensor

Product Description

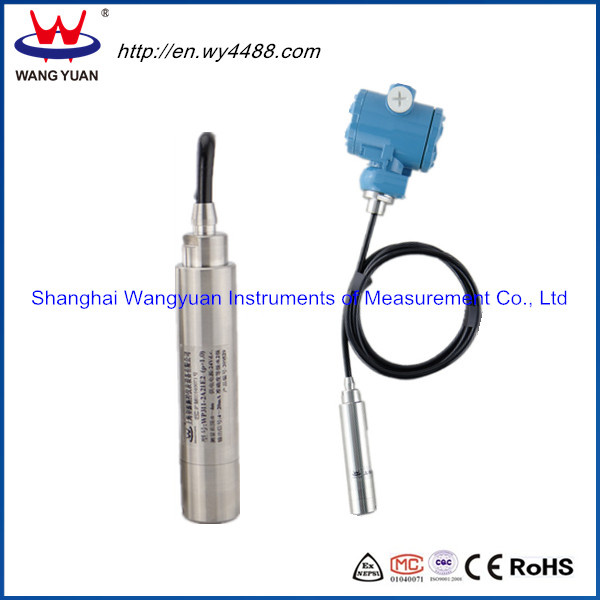

WP311 Immersion type level sensor

Application:
This series level sensor can be used to measure & control liquid pressure in:
Level measuring
Building automation
Ocean and ship
Vacuum equipment
Constant pressure water supply
Metallurgy, environment protection
Medical treatment and etc.

Description
WP311 Immersion type level sensor (also called static level transmitter) adopt advanced imported sensitive

Component with anti-corrosive diaphragm, the sensor chip was put inside a stainless steel (or Teflon) shell. A special vented

Cable was used, with exact measurement, long term stability, excellent seal and corrosion proof, this level transmitter

Meets the standard of ship, and it can be thrown directly in water, oil and other liquids for a long time.

--Special internal construct technology completely solved the problem of condensation and dewfall
--Special designed electronic technology basically solve the problem of lightning strike

Features
Imported sensor component
Various output signal
Excellent corrosion proof and seal
High stability & reliability
Meet the standard for ships
High precision 0.1%FS, 0.2%FS, 0.5%FS
Explosion-proof type: Ex iaIICT6, Ex dIIBT4

Specification
Pressure range: 0-0.5~200mH2O
Accuracy: 0.1%FS; 0.2%FS; 0.5 %FS
Output signal: 4-20mA; 4-20mA with HART protocol;
Power supply: 24V DC;
Probe material: SUS 304, SUS316L
Electrical connection: Vented cable, Terminal block
Operation temperature: -40-85C
Protection grade: IP68
Overload: 150%FS
Pressure connector: M20*1.5, Optional
Installation: Immersion or Flange
Indicator: 3 1/2LCD / LED/ 4 or 5bits LCD.

Ordering guide: WP311A-5m(cable 6m)-0.5%FS- SS304-4-20mA -24VDC-M20*1.5 M
