Importd Bolt Type Copper Connecting Clamp / Brass Split Bolt Connector

Name: Importd Bolt Type Copper Connecting Clamp / Brass Split Bolt Connector
Brand: all-electronics-online.com
SKU: 713709995
Availability: InStock
Rating: 4.5 (149 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	T/J
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Brass
Usage:	Power Fittings
Structure:	O
Gender:	Male

Product Description

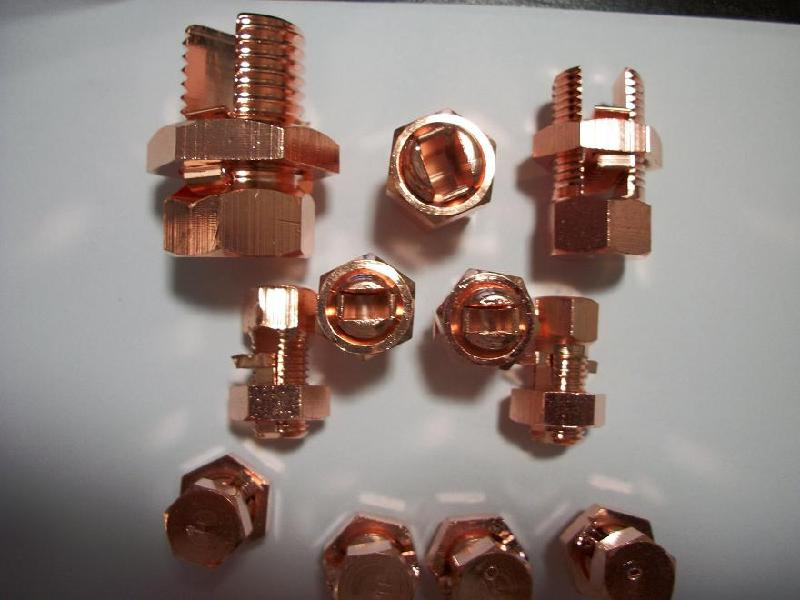

1. Name: Brass Split Bolt
2. Material: Brass Copper
3. Surface Treatment: Tin plated
4. T/J Split Bolt is suitable for the sequence and transportation of all kinds of conductor in electric netting, made of brass copper and tin-plated surface.
5. Size: 16mm, 25mm, 35mm, 50-70mm, 90-120mm, 150-185mm, 200-240mm

CAT.NO.	Applicable Conductor(mm)	Main Dimensions, mm				Weight, kg
CAT.NO.	Applicable Conductor(mm)	L	M	H	S	Weight, kg
T/J-16	16	26	10X1	5.3	13.9	0.023
T/J-25	25	29	14X1.5	7	18.5	0.034
T/J-35	35	34	18X1.5	8	20.8	0.057
T/J-50-70	50-70	42	24X2	12	27.7	0.108
T/J-90-120	90-120	50	24X2	14.5	30	0.142
T/J-150-185	150-180	63	24X2	18	34.6	0.250
T/J-200-240	200-240	72	31X2.5	20	32	0.301
