| Prod Model: |
SCB10 |
| Application: |
Audio |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Frequency Characteristics: |
50Hz |

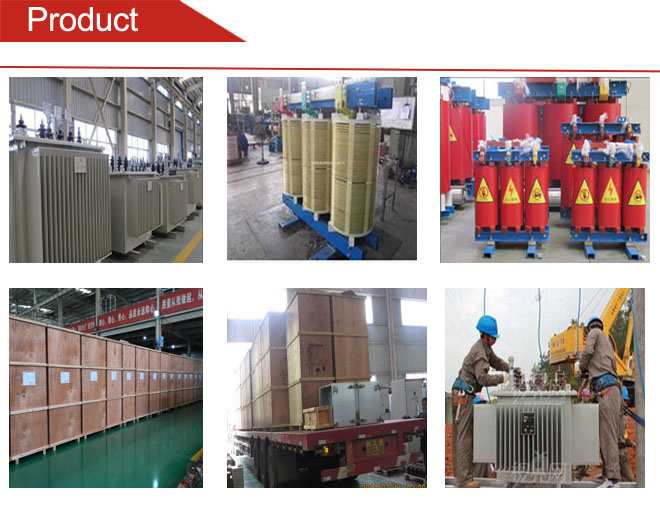

Product Description
General Description
Application: for power distribution system and large industrial enterprises, etc.
Standards: IEC 60076-11
Parameters: Rated Voltage: 6KV 6.3KV 10KV 10.5KV 11KV
Rated Capacity: 30-3150kVA.
Features: 1.High security and reliability in operation.
2.Economic and efficient to reduce network loss and working cost.
3.Low temperature rise.
4.Low noise.
5.Operation in moist place with high moisture-proof capability.
6.Customized transformers are available on your requirement
Service conditions
>>Installation height: altitude shall not exceed 1000m
>>Ambient temperature: -40ºC~40ºC
Dimension & SchematicTechnical parameters
1. Model No: SCB11 outdoor transformer
2. Phase: 3phases
| Dry type transformer Technical parameter table |
| nominal capacity | Voltage combination | Join group label | No-load loss(W) | load loss(W) | No-load current(%) | Short circuit impedance(%) |
| HV(KV) | High voltage range | LV(KV) |
| 30 | 6
6.3
6.6
10
10.5
11 | ±5% | 0.4 | Dyn11/
Yyn0 | 175 | 670 | 2.72 | 4.0 |
| 50 | 245 | 950 | 2.38 |
| 80 | 335 | 1310 | 2.21 |
| 100 | 360 | 1500 | 2.04 |
| 125 | 425 | 1755 | 1.86 |
| 160 | 495 | 2020 | 1.87 |
| 200 | 565 | 2400 | 1.70 |
| 250 | 650 | 2620 | 1.70 |
| 315 | 795 | 3300 | 1.53 |
| 400 | 885 | 3790 | 1.53 |
| 500 | 1050 | 4640 | 1.53 |
| 630 | 1215 | 5585 | 1.36 |
| 630 | 1170 | 5665 | 1.36 | 6.0 |
| 800 | 1370 | 6610 | 1.36 |
| 1000 | 1600 | 7720 | 1.19 |
| 1250 | 1885 | 9210 | 1.19 |
| 1600 | 2210 | 1150 | 1.19 |
| 2000 | 2990 | 13730 | 1.02 |
| 2500 | 3600 | 16320 | 1.02 |

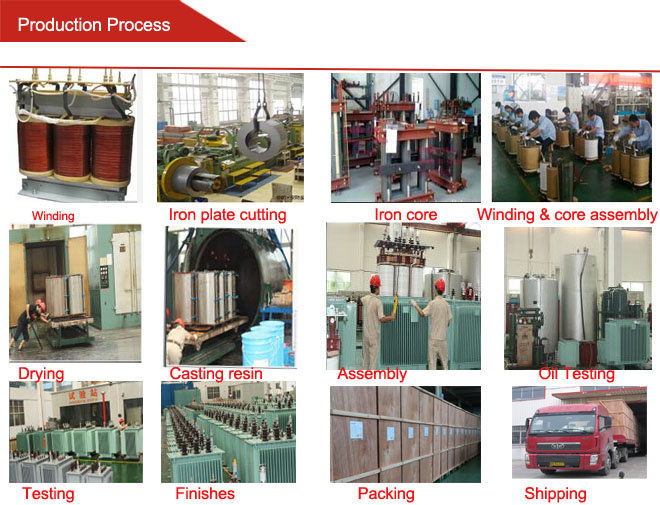

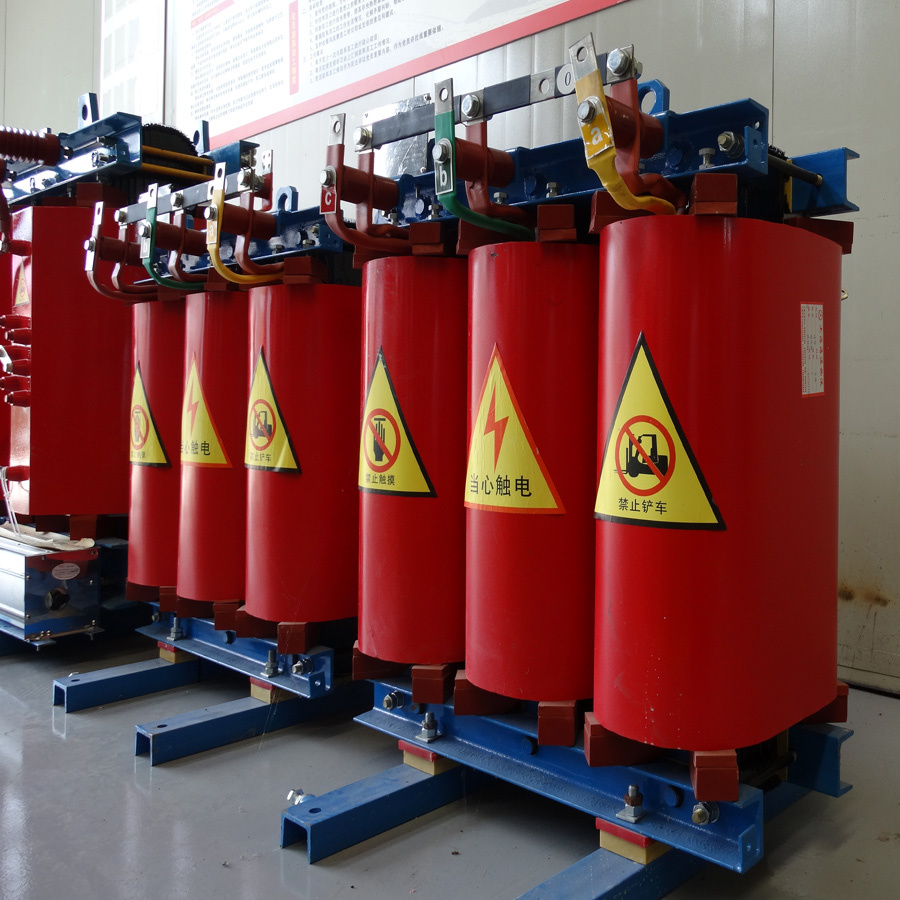

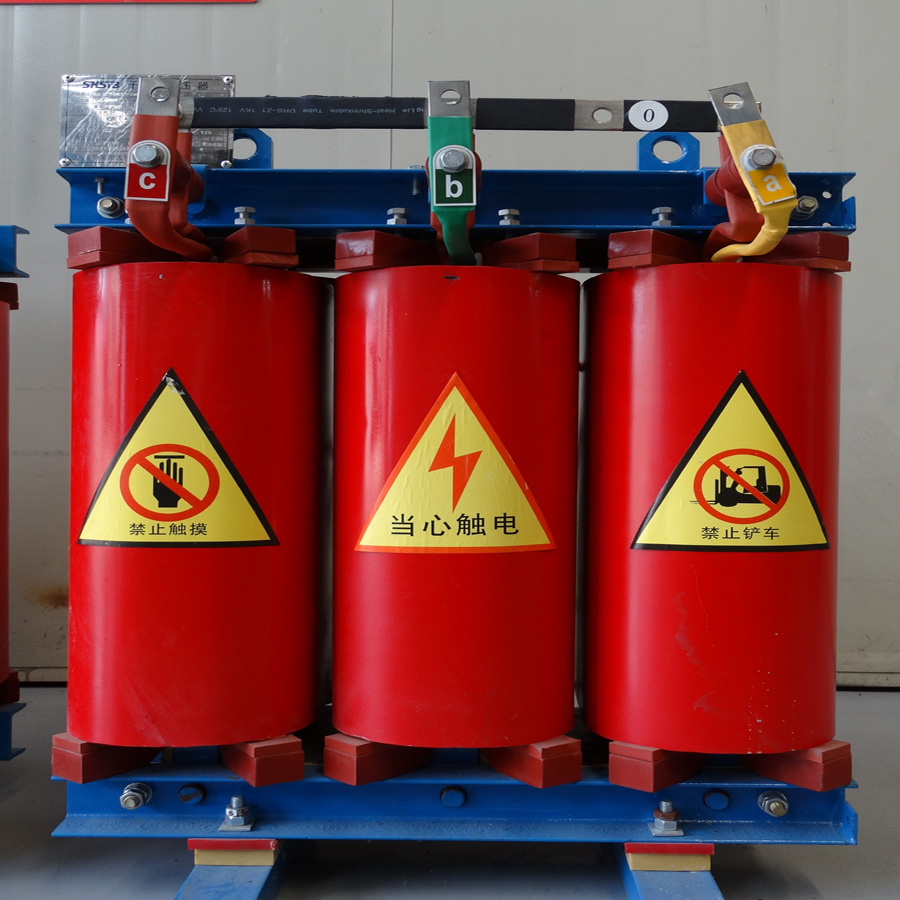

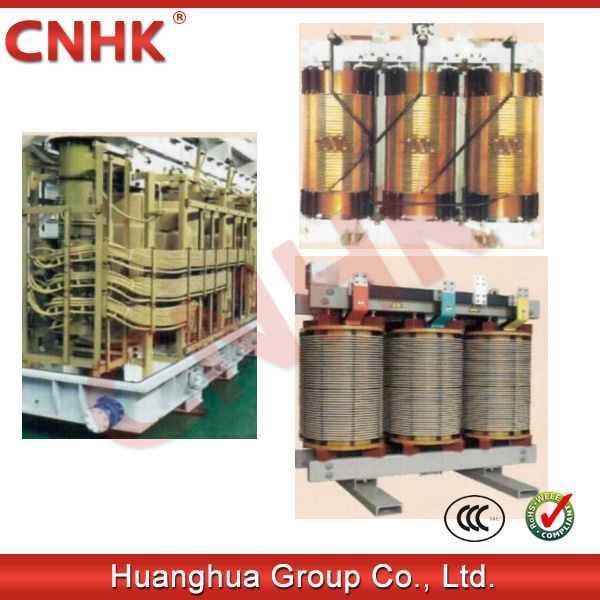

Our SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically . The core is made of high-permeable grain-orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials , scientific management, and perfect inspection means ,our products have the following features:
The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge, high reliability, and long service life.
The high-and low-voltage systems are cast under vacuum, thus the coil will not absorb moisture; the clamps of core are subjected to corrosion-resistant treatment and it may run under high temperature or other serious environments.
Flame retardancy , explosion-proof and no environmental contamination. The insulating materials in the coil such as glass fiber are self-extinguishing and they will not cause fire by the arc resulted from short-circuit . The resin will not generate toxic or harmful gas under high temperature.
Gas duct is embedded inside it to enhance the radiation power and over-load capacity.
Low loss and low noise. The core is lapped with 45 full-miter and the step-type lamination effectively improves distribution of magnetic flux at core corners, and greatly reduces the no-load loss and the nose level.

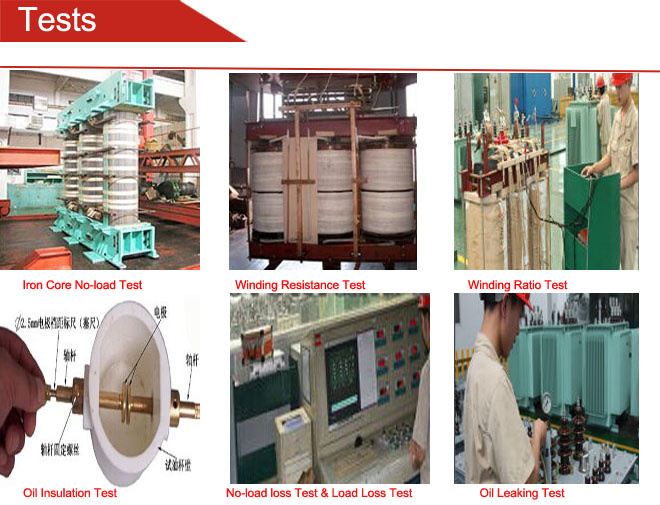

It highly withstands short-circuit and lightning impact.

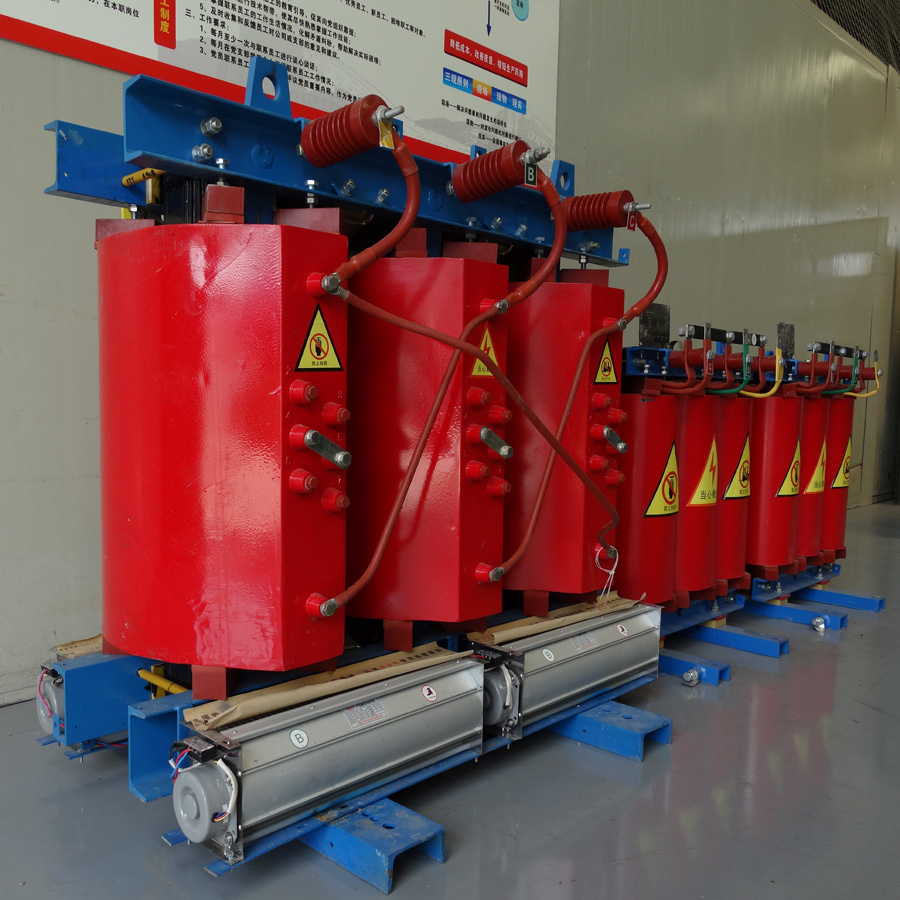

Small in volume, light in weight, safe in running and free of maintenance. As per users' requirements the transformer may be provided with casing and blower fan. Order guidePlease specify the product model, rated capacity, HV/LV rated voltage and high-voltage tapping range, phase number, frequency, connection group symbol and so on in the order.We produce the following transformer As Well:
S9 S11 S13 Oil type transformer:50-31500KVA,6-33KV,50/60HZ,off load tape changer
SZ9 SZ11 oil type transformer:50-31500KVA, 6-33KV,50/60HZ, On load tape changer
SCB9,SCB11 dry type transformer: F grade insulation, 50-3150KVA,6-33KV, 50/60HZ
SCBH15 11KV amorphous alloy dry type transformer:F grade insulation
SGB10 SGB11 11KV dry type transformer:H grade insulation
SBH15 Oil type amorphous alloy transformer 11KV Level
Dry type reactor
SC(G)Dry-type shunt reactor
SC Dry Startup reactor
Smoothing reactors
low-pressure filter reactor
Cast resin dry type earthing transformer
Dry type rectifier transformer
Rectifier transformer
Furnace transformer
