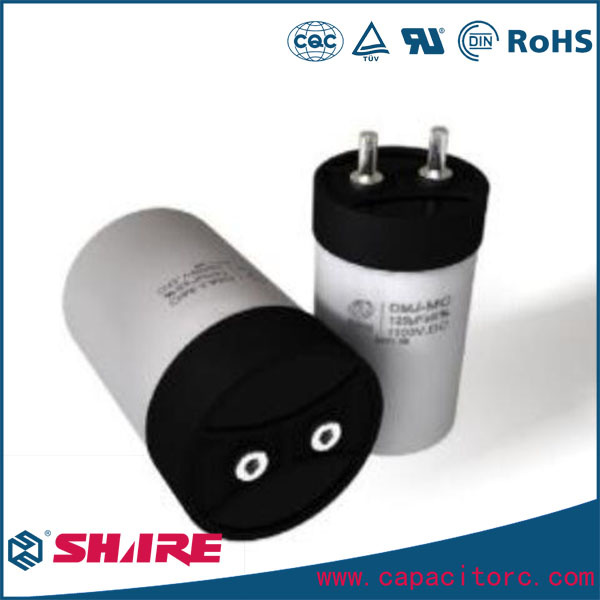

Impulse Discharge Capacitors for Magnetizing and Welding

Name: Impulse Discharge Capacitors for Magnetizing and Welding
Brand: all-electronics-online.com
SKU: 802072475
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 5-68/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAPACITOR
Type:	Polypropylene Capacitor
Application:	Automobile
Package Type:	Through Hole
Capacitance:	50UF ~ 2600UF
Usage:	Solar Power
Filter:	Film Capacitor

Product Description

DC LINK CAPACITORS FOR SOLAR POWER,WIND POWER

Rated Spec:	1200V 470uF , 1200VDC 470mF
Tolerance:	K, ±10%
Type:	Screw Mounting
Dielectric :	Metallized polypropylene film
Operating Temperature:	-40C ~ 85C
Size / Dimension(ΦD×T*H):	D:86mm, H:225mm

Specifications
• Capacitance range: 50μF to 1600μF
• Rated Voltage: 800vdc to 3000vdc
• Capacitance Tolerance: ±10%,±5%
• Dissipation factor ( Tan d): 0.2%
• Insulation Resistance: MΩ x μF 5,000S @ 25°C (S = MΩ x μF)
• Dielectric strength between terminals: (U ) 1.5 x rated voltage for 60 secs T-T
• Test Voltage Terminal to case: 1.5Un +1000VAC 50 Hz T-c
• Operating Temperature: -40°C to +85°C
• Life Expectancy: 100,000 Hours

Features
• High RMS current
• Low ESR
• Life Expectancy 100,000 Hours
• Filled with resin, Dry type
• Non Inductive type, Aluminum case
• Flame retardant UL94-V0, ROHS compliant
• Reference Standard: IEC 61071 and IEC 60068

Applications
• DC Link and DC Filter applications in Power converters for
• Uninterruptible power supplies
• Wind power inverters
• Solar power inverters
• High voltage inverters
• Traction and industrial drives.
• Impulse discharge capacitors for magnetizing and welding.

Test Data
• Voltage between terminals: 1.5Un 10s
• Voltage between terminals and case: 1.5Un+1000VAC
• Dissipation factor: 0.2% 100Hz 25C
• Life expectancy: 100,000 Hours
• Insulation resistance: CXRi≥5000S100VDC 25C
