Name: in Wall Ap Wall Router Wireless Modem
Brand: all-electronics-online.com
SKU: 719666072
Availability: InStock
Rating: 5 (45 reviews)

Price:	US $ 8.8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HVWF-1011
Grounding:	Standard Grounding
Type:	With Switch
Application:	Residential/General-Purpose
IP Rating:	IP55
Brand:	Hover

Product Description

Description

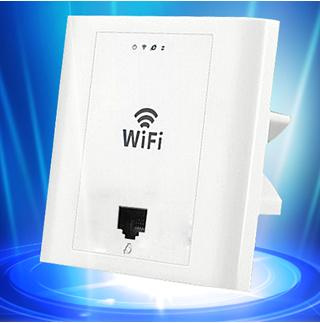

It is an in wall AP with 300Mbps data rate, designed for hotel mainly to provide guests and roomers secure Internet access and phone line connection in their hotel room, guest room, living room and lobby.
It support 24V passive POE, easy in setting and complete the full wifi coverage.
The Access Controller System (ACS) is included in this Hotel Wi-Fi Solution, make IT staff fast to manage more than 200PCS AP through PC.

Main Features:

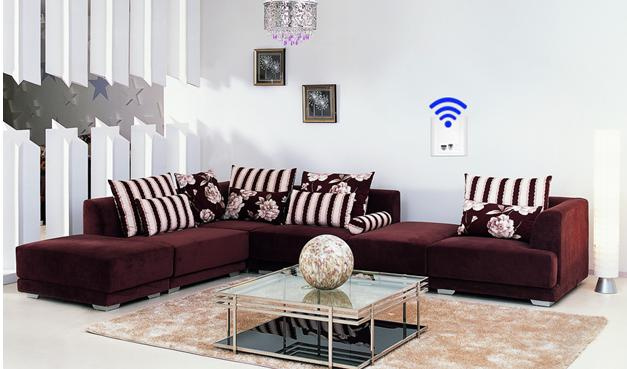

In wall design, match with the cassette with size of 86mm or 75mm, easy to complete the hotel WiFi cover.

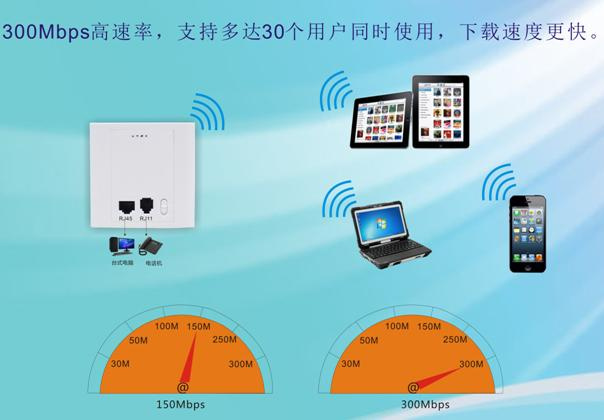

1. Compliant with IEEE 802.11b/g/n standard, 300Mbps in data rate, more faster in download, more freely in internet surf.

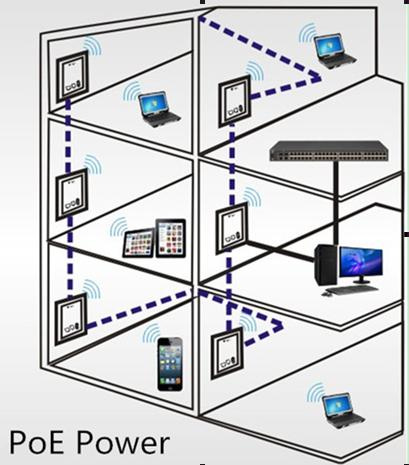

2. Support passive POE, can be powered by passive POE adapter over Ethernet equipment, cost effectively.

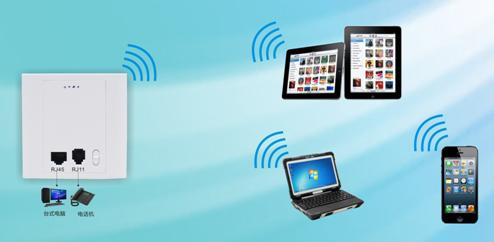

3. It has 2 RJ45 ports, one on the front allowing wired access for guests and one on the rear for network service and power provision.
4. Support 802.1Q VLAN manage and Access Controller System(ACS), the IT staff can sets up different IP addresses, ESSID and manages each room's AP at the same time. They can remotely add, set up, monitor, delete, upgrade firmware via the ACS through computer.
5. Multiple SSID: PW310 support 4 SSID, each SSID can be named and assigned to different users, then internet data is isolated.

Specifications

Wireless
Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Data Rate	11n: 300Mbps 11g: 54Mbps 11b: 11Mbps
Frequency Range	2.4-2.4835GHz
Wireless Transmit Power	15dBm
Modulation Type	OFDM/CCK/16-QAM/64-QAM
Receive Sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER
Operation Mode	Router, AP, Repeater
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES)
System Requirements	Windows 7/Vista/XP/2000,Mac OS®, Linux or Android OS
Hardware
Interfaces	2 x 10/100Mbps LAN/WAN Port
Button	Reset Button
Antenna	MIMO 2dBi Build-in omni-directional Antenna
Power Supply	Passive POE
Dimensions( W x D x H )	868668mm
Others
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Relative Humidity	10% ~ 90%, Non-condensing
Storage Humidity	5%~95%, Non-condensing
Certifications	RoHS
Package Contents	1 x in wall AP 1 x Quick Installation Guide 1 x setting accessory
