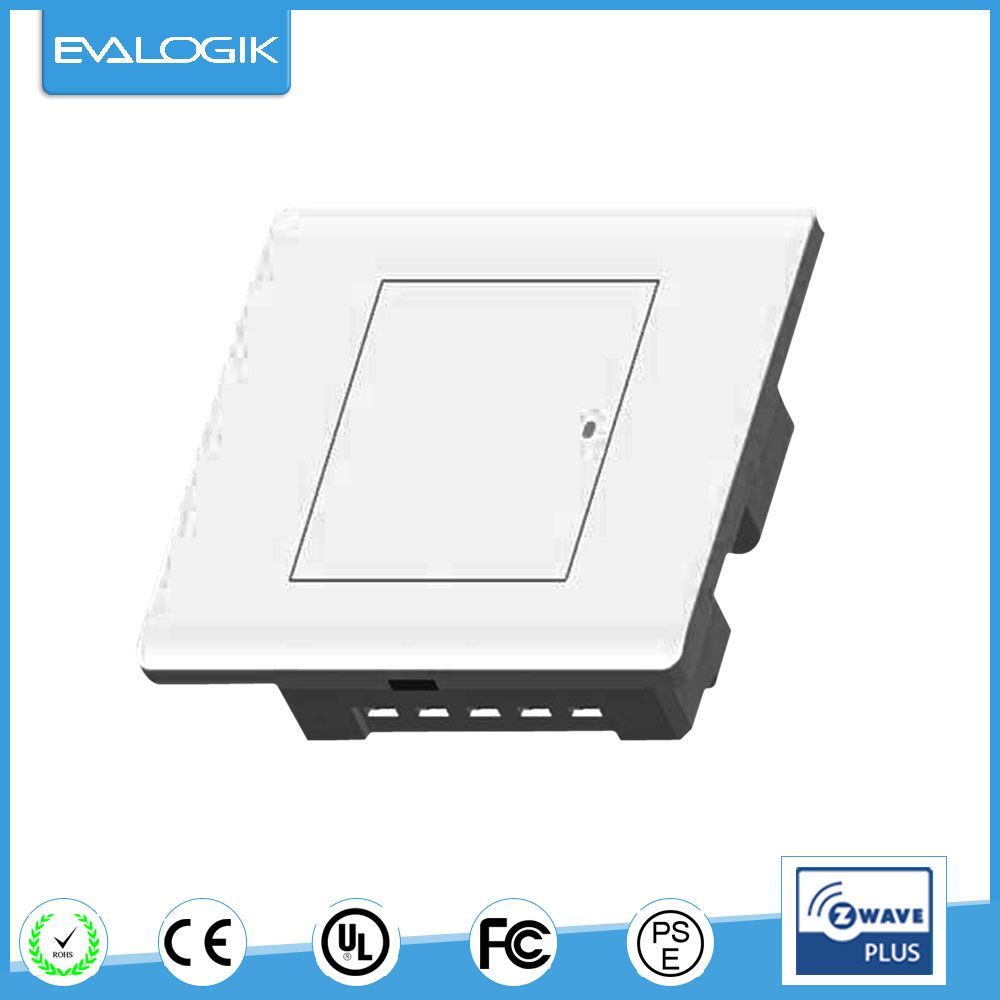

in-Wall Light Switch (single) with Z-Wave APP Control

Name: in-Wall Light Switch (single) with Z-Wave APP Control
Brand: all-electronics-online.com
SKU: 818316175
Availability: InStock
Rating: 4.9 (109 reviews)

Price:	US $ 24-50/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW661
Operating Voltage:	120VAC/60Hz
Maximum Load:	2000W
Range:	Min 30m Line of Sight
Color:	White
Dimensions:	868639(mm)
Net Weight:	150g
Frequency:	868.42MHz
Function:	Wall Witch to Control Lights on/off
Type:	Normal Open
Usage:	Control Button
Kind:	Single-pole on-off Switch
Certification:	RoHS

Product Description

Introduction

In-wall Light Switch(single) With Z-Wave APP Control
The ZW661 Wall Mounted Switch is a component of the lighting control system. Wire the Wall Mounted Switch in place of a standard wall switch.

Technical data

Operating Voltage	230Vac/50Hz
Maximum Load	2000W
Range	Min 30m line of sight
Dimensions	86(L)86(W)39(H)mm
Net Weight	130g
Frequency	868.42MHz

Installation

1. Before installation ensure that the voltage supply is disconnected.

2. Connect ZW661 module as shown on above diagram.

3. Connect the device in accordance with the wiring diagram presented in Wiring diagram. Switch on 120V of the mains voltage.

4. For "Add" in a network: Put the Z-wave interface controller into "Add" mode, and following its instruction to add the ZW661 to your controller. To get in the "Add" mode, the distance between ZW661 module and controller is suggested to be in one meter. Quickly pressing the learn switch of ZW661 for 1 second at least & release to be included.

5. For "Remove" from a network: set up the Z-wave interface controller into "Remove" mode, and following its instruction to delete the ZW661 from your controller. Press the learn switch of ZW661 for 1 second at least &release to be excluded.
