India Industry Use Fiber 500W Metal Laser Cutter Machine
| Price: |
US $ 53800/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
991 |
| Model No.: |
Dpl-3015-500I |
| Type For Cutting Machine: |
Laser Cutting Machine |
| Automation: |
Automatic |
| Type: |
Laser Cutting Machine |
| Laser Wavelength: |
1070nm |
| Applicated: |
Machinery & Hardware |
| Certification: |
SGS/ Ce/ ISO 9001:2000 |
| Condition: |
New |
| Medium Of Laser: |
Semiconductor Pump Continuous Ytterbium Doped Fibe |
| Export Markets: |
Global |
Product Description
india industry use fiber 500w metal laser cutter machine
Advantage Features:
- Cost saving on power consumption/ only 20-30% of co2 laser cutting machine
- Higher cutting speed 120m/min and Imported servo motor and gearing system ensure precision cutting
- Easy of operation
- Error detection, diagnosis & solution
- Scan cutting: Short distance cutting without head lifting
- Automatic search edge function: if work piece put slanting, machine can auto detect it and automatic adjust cutting, so less waste of material and no need to move the metal sheet
- Memory cutting: Once power off suddenly, the software has memory of cut stop point, when power on, the machine will continue cutting from the break point.
- Adopts Proportional Valve: Control the air pressure automatically replace of manually, save much time.
- Safety Features : Pause / Emergency Stop (can we pause or stop machine during cutting )
- Stable working table: DAPENG cutting bed around 4.5 tons in weight, Dual drive, aging treatment, stress relief test, make sure long time lasting without changing shape.
-
Main Components list:
| No. | Description | Made of origin place and Manufacturer |
| 1 | Fiber Laser source | IPG 500W from Germany |
| 2 | Laser Head | Technology and components from Germany, assembled in China |
| 3 | Guide Rails | Hiwin from Taiwan |
| 4 | Rack & Pinion | YYC from Taiwan |
| 5 | Speed Reducer | Shimpo from Japan |
| 6 | Servo Motor & Driver | Schneider from France |
| 7 | Proportional | Aventics from Germany |
| 8 | Pneumatic Components | Airtac from Taiwan |
| 9 | Circuit Breaker | Schneider from France |
| 10 | Relay | Omron from Janpan |
| 11 | Chiller | China Dongluyang |
| 12 | Cutting System | China Cypcut |
| 13 | Bed | DAPENG 4500kg |
| 14 | Cable Carrier | IGUS |
Specifications:
| Model | DPE-F500-3015IP |
| Laser power | 500W |
| Cutting area(mm)(L×W) | 3000mm×1500mm |
| Max cutting speed(m/min) | 120 m/min |
| Max Accelerated | 1.5G |
| Positioning accuracy | ±0.03mmmm |
| Reliability accuracy | ±0.02mm |
| Min line width | 0.15mm |
| Max Cutting depth (Mild Steel) | 6mm |
| Stainless Steel O2 | 1.5mm |
| Stainless Steel N2 | 2mm |
| Driving Way | Imported servo motor |
| Transmission Way | Imported gear rack & pinion double driver |
| Electrical Requirements | 380V/50Hz.60Amp |
| Power Consumption | 10KW |
| Work Piece Weight | 800kg |
| Weight | 4500kg |
| Outline size(mm) | 4800mm×2700mm×1900mm (L×W×H) |

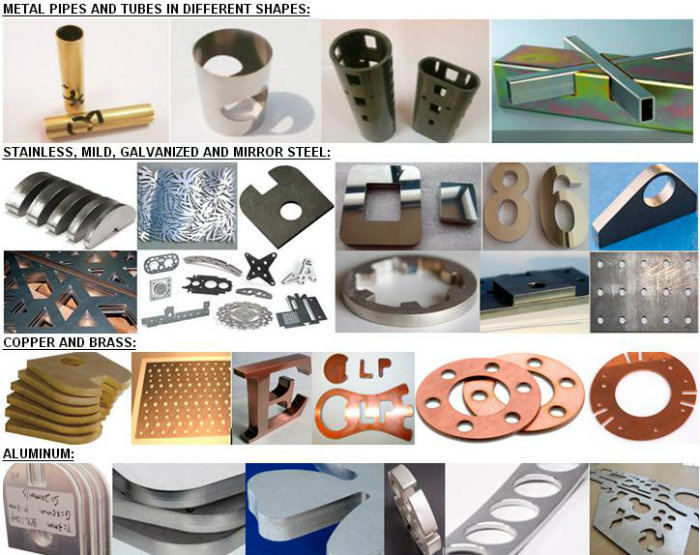

Applicable Materials:
Stainless steel, Mild steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal . Cutting Process Parameters:
| IPG 500W(Germany) |
| Materials | Thickness(mm) | Cutting speed (m/min) | Gas |
| Stainless steel | 0.5 | 60 | N2 |
| 0.8 | 30 | N2 |
| 1.2 | 15 | N2 |
| 2 | 5.1 | N2 |
| 3 | 2.4 | N2 |
| Mild steel | 0.5 | 15.6 | O2 |
| 0.8 | 9.6 | O2 |
| 1.2 | 7.8 | O2 |
| 2 | 6 | O2 |
| 4.5 | 1.8 | O2 |
| 5.5 | 1.5 | O2 |
Shenzhen DAPENGLaser Technology Co., Ltd.
Headquartered in Shenzhen, the company operating layout covering the East Coast Main industrial provinces and cities: Guangzhou, Foshan, Zhongshan, Jieyang), Fujian (Xiamen), Wenzhou, Zhejiang, Ningbo), Jiangsu (Wuxi), Shandong (Qingdao) and the Indian agent, vertical integration of upstream and downstream production process, diversification of laser equipment, products, production elasticity, effectively shortening the supply chain and meet the needs of customers purchasing, reduce time and cost of procurement.
Dapeng laser Dedicated in R & D, manufacturing, sales of industrial laser equipment, the main products of the company including laser marking machine series, laser welding machine, laser cutting machine series, specially used in the industry and automatic customization of laser equipment, at the same time, it provides parts of lasers and related equipment for the Chinese and global laser industry manufacturers. In selling all kinds of laser equipment more than 4000 units, is the domestic well-known from research and development, raw material procurement, production, distribution and after-sales and a series of full set of professional service of laser equipment manufacturers and sales of its products covers mainland China, Taiwan, Southeast Asia, India, Japan, Korea, Europe and the United States, and actively expand in Eastern Europe, the Middle East, Eurus, South America and other emerging markets.
Dapeng laser is committed to provide stability is the highest and most of the price ratio of industrial laser equipment for the customer, Guangdong Dapeng LNG Company products both in performance, stability, the warranty period and price relative to the companies in the same industry products has incomparable advantages. Is one of the leading brands in China's standard laser marking machine, welding machine and cutting machine. 2005, officially entered the laser equipment industry, after 10 years of hard work to cultivate, Dapeng laser has been among the well-known industrial laser equipment manufacturers, the company has experience of 10 years of professional R & D design team, for the industry to develop customized non-standard automation laser equipment. We are committed to become the field of industrial laser equipment total solution provider, for customers to provide high-quality, high stability, high price of industrial laser equipment and a full range of technology support service.
Our professional services:
1. Provide service from a full package of materials and equipment research and development, proofing, automation of laser equipment design.
2. the perfect pre-sale, sale and customer service service system.
3.Customer satisfaction guarantee commitment.
DAPENGLaser Cutting Department
The cutting department built bused on our R&D Engineer team in 2015,and we have provide over 200 Laser cutting machines to our customers and our equipments and technical service are proved by our customers.
The DAPENGLaser cutting machine are widely used in crafts, electronics, toys and other industries, used in sheet metal, metal products, jewelry, nameplate, advertising, packaging steel structure, precision machinery, auto parts, glasses, and other industries. For the stainless steel plate, iron plate, aluminum, ceramics, silicon and diamond cutting. Can also be metal, a variety of non-metallic materials, pipe cutting
Company
Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and
servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides
equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military,
semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets.
With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard
and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker
systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last
12 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil,
Colombia, and South Africa, among others.
Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will
have a chance to give you a great laser solution with Dapeng Laser products.
Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost
effectiveness, and technical support.
Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.
Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.
Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
