India Type Electrical Shunt Resistor

Name: India Type Electrical Shunt Resistor
Brand: all-electronics-online.com
SKU: 797257265
Availability: InStock
Rating: 4.3 (149 reviews)

Price:	US $ 1-2/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Materials:	Manginin
Temperature:	-40 C~+60 C
Voltage Drop:	50mv, 60mv, 75mv, 100mv
Current Rating:	1-5000A
Resistance:	Fixed Resistor
Function For Resistance:	Shunt Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Throught Hole
Type:	Varistor
Application:	Electrical

Product Description

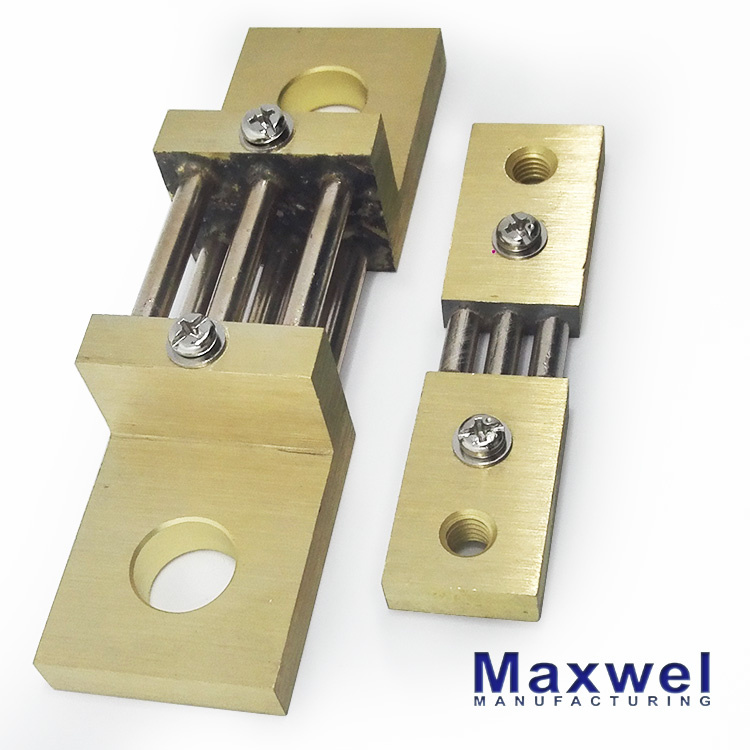

Electrical Shunt Resistor

The shunts accurately measure and convert high DC current into milivolt output.
They are made from brass extrusions and high quality manganin resistance wire.
The manganin wire has excellent stability and extremely low temperature coefficient.
The shunts are available for input currents as high as 12000A and milivolt output as 100mV.

Application:

Combined usage with DC panel meters

according to rated voltage drop without adjustment.

Specifications

Current rating: 1-5000A

Rated Voltage drop: 50mV~100mV DC

Accuracy: class 0.5

Material of shunt resistor: Manganin

Outline and Fixing Dimension: (mm)

Model	A	B	C	D	E	F	G	H	I	J	K	L	M
MX-10A/50-100mV	30	135	110	72	20	6	12	17	31	13	20	5	17
MX-150A/50-100mV	30	135	110	72	20	6	12	17	31	13	20	5	17
MX-200A/50-100mV	32	136	110	67	25	15	12	17	30	15	-	-	17
