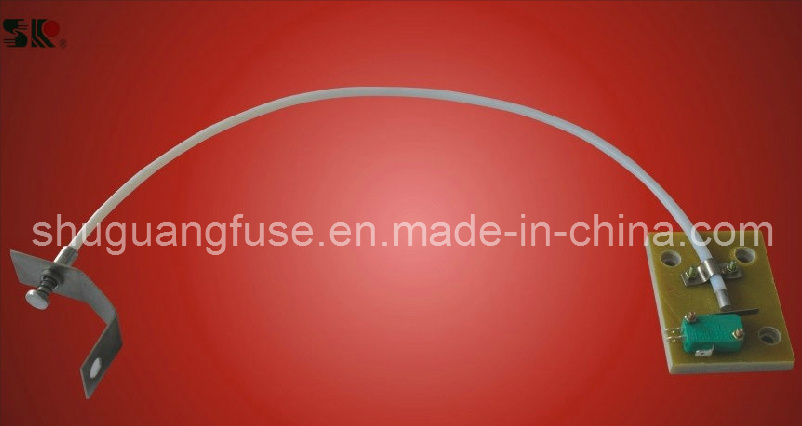

Indicating and Gearing Device of High-High-Volt Fuse

Indicating and Gearing Device of High-High-Volt Fuse
Price: US $ 50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Current Fuse
Breaking Capacity: High
Usaga: High Voltage

Product Description



*Application
        This device is applide to 3.6KV~40.5KV indoor high-voltage fuse(with stiker), such as XRN ,XRNM and RN1,RN3 etc. After action of fuse ,the sriker would eject compressed target-head ,which drives insulates core axis move to low-volt loop, and open inching switch, for proving alarm and insulation function .





*Installation Size And Operation Debugging
      This device could be installed in any direction on the premise of being up to insulated distance, its size refers to diagram1.
      Provide the striker of fuse belongs to spring type, it is suggesed to move(like diagram2), provided the striker of fuse belongs to power type it is suggested to move targethead to certain position with more-than-3 mm distance away from axes of striker, meanwhile,adjust pushloop to certain position with 5mm distance away from inching rod.

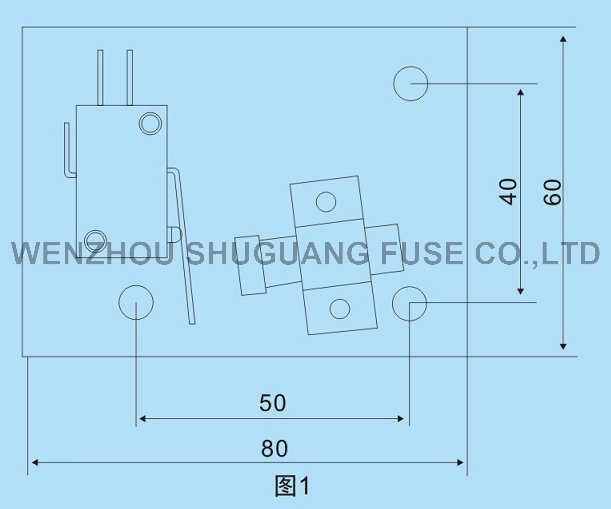

                                                                                        (diagram 1)










                                                                                             (diagram 2)
