Indoo Single-Mode Distribution Fiber Optic Cable (GJPFJV)

Name: Indoo Single-Mode Distribution Fiber Optic Cable (GJPFJV)
Brand: all-electronics-online.com
SKU: 684696572
Availability: InStock
Rating: 4.6 (92 reviews)

Price:	US $ 0.295-0.305/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJPFJV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Dimension:	14.5mm
Jacket:	PVC or LSZH
Strength Member:	FRP
Yarn:	Kevlar
Application:	Submarine Cable
Cover Material:	PVC
Certification:	RoHS
Conductor Material:	Fiber
Type:	Optical Fiber Cable
Wire Core Material:	Fiber
Model:	Gjpfjv
Brand:	Neutral

Product Description

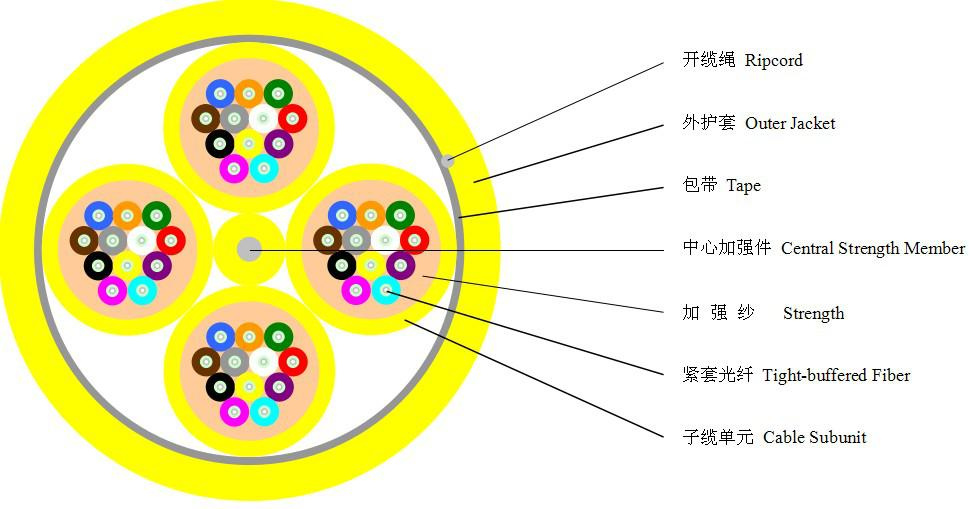

Indoor 48 Cores Single-Mode Distribution Fiber Optic Cable Gjpfjv

Application
1. Used for indoor wiring, used as distribution cable

Features
1. With good mechanical and environmental performance.
2. Flame retardant performance meet the requirements of relevant standards
3. Sheath of the mechanical and physical properties meet the requirements of relevant standards
4. Soft and flexible connection is convenient, and support the large capacity data transmission
5.Meet various requirements of market and clients.

Options
1.Fiber Type:G.652,G.655 or G.657 single-mode fiber,A1a or A1b, OM3 or OM4 multi-mode fiber, or other types of fiber;
2.Fiber Count: Total number of fibers in the cable:
3.Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halgen flame retanrdant polyolefin(LSZH), environmental halogen flame retardant polyolefin(ZRPO), environmental thermosplatic polyurethane(TPU), or other contracted material;
4.Jacket Color:(Including color of fiber) meets the requirements of relevant standards,or other contracted color;
5.Cable Dimension:1km or 2km, or other contracted dimension;
6.Delivery Length:1km or 2km, or other contracted length;
7.Other Requirements:Other contracted special requests.

Cable Paramenters

Fiber Count	Subunit Count	Fiber Count in Each Unit	Cable Dimension(mm)	Cable Weight(kg/km)	Tensile(N)		Crush(N/100mm)		Min.Bend Radius(mm)		Range of Tem(degree)
					Tensile(N)		Crush(N/100mm)		Min.Bend Radius(mm)
					Long Term	Short Term	Long Term	Short Term	Short Term	Static
16	4	4	12.5	125.0	400	1320	300	1000	20D	10D	-20~+60
24	6	4	15.0	183.0	400	1320	300	1000
36	6	6	17.0	238.0	400	1320	300	1000
48	6	8	18.5	292.0	400	1320	300	1000
64	8	8	22.0	410.0	400	1320	300	1000
72	6	12	22.5	390.0	400	1320	300	1000
96	8	12	25.5	546.0	600	1500	300	1000
144	12	12	35.5	1004.0	800	2000	300	1000
Note:			All the values in the table, which are for reference only, are subject to change without notice;
Note:			The minimun bend radius(static) is 5D when G.657 fiber is used.
