Indoor 2 Cores Figure 8 Fiber Optic Drop Cable

Name: Indoor 2 Cores Figure 8 Fiber Optic Drop Cable
Brand: all-electronics-online.com
SKU: 817824615
Availability: InStock
Rating: 4.3 (68 reviews)

Price:	US $ 0.03-0.1/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJFXH
Fiber Count:	1-4cores
Fiber:	G652D/G657A
Fiber Type:	Singlemode or Multimode
Strength Member:	FRP or Steel Wire
Jacket Material:	LSZH
Storage Temperature (ºC):	-40~+70
Application:	Telecommunication
Type:	Multi-mode Fiber
Certification:	ISO9001
Sheath Material:	LSZH Flame Resistance

Product Description

indoor 2 cores figure 8 Fiber optic drop cable

Description:

The optical fiber unit is positioned in the centre. Two parallel Fiber reinforced Plastics(FRP) are placed at the two sides. (A steel wire as the additional strength member is also applied). then, the cable is completed with a black or color LSZH sheath.

Features:

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance;
Low smoke, zero halogen and flame retardant sheath.
Comply with IEC 60332-3 Flame resistance performance.
Comply with IEC 60794-2

Application:

Widely used in access building,indoor cable,for FTTH project.

Fiber Characteristics:

Fiber Type		G.657A1	G.657A2	OM3	OM4
Attenuation(+20ºC)	@850nm			≤2.3dB/km	≤2.3dB/km
	@1300nm			≤0.6dB/km	≤0.6dB/km
	@1310nm	0.36 dB	0.36 dB
	@1550nm	0.22 dB	0.22 dB
Overfilled launch Bandwidth	@850nm			≥1500MHZ.km	≥3500MHZ.km
Overfilled launch Bandwidth	@1300nm			≥500MHZ.km	≥700MHZ.km
Effective Modal Bandwidth	@850nm			≥2000MHZ.km	≥4700MHZ.km
10GB/S Ethernet link length				≤300m	≤550m
Min Bending Radius(mm)		10	7.5	30	30

Physical characteristics and mechanical performance:

Fiber Count	Cable Diameter(mm)	Cable Weight(kg/km)	Tensile Strength (N/100mm)	Crush Resistance (N/100mm)	Minimum Bending Radius (mm)	Storage Temperature (ºC)
1-4	2.0×3.0	9.0	200/80	2200/1000	15D/30D	-40~+70

Packages:

More popular products :

Contact us:

If you are interested in our products,please contact with our sales,we will reply you on 24 hourswith english o spanish. Also you can send us a email o call us by telephone.

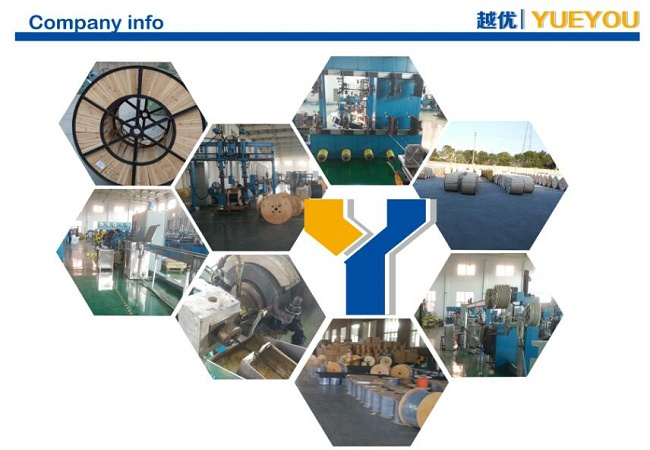

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.

YueYou implements real ISO management, and according to 6S management, using excellent technology, high-quality concept and qualified service team, implementing the enterprise's purpose and philosophy, been as a qualified supplier. To meet customer's demand is our goal, to exceed customer expectations as the driving force, Yueyou creating a unique business value and reputation value for each customer.

Yueyou now has been chosen as an important supplier by famous domestic and overseas telecommunication enterprises. Whenever, we will use our best efforts to prove our unique perspective.

Sincerely looking forward with you hand by hand, creating brightly future!
