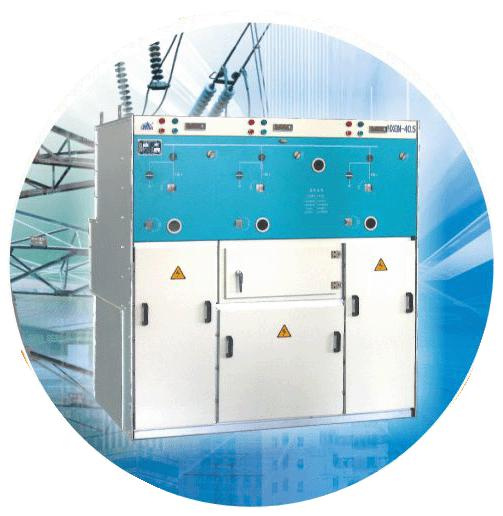

Indoor AC Hv Sf6 Power Distribution Switchgear for Transformer
| Price: |
US $ 888/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HXGN-40.5(F)(F. R)/630-20 50-31.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50Hz |
| Phase: |
3 Phase |
| Type: |
Low-voltage |
| Structure: |
Double-column Disconnector |
| Installation: |
Indoor High-voltage |
| Operation: |
Electric |
| Grounding: |
Double Ground |
| Series: |
Two |
| Run: |
Plug-In |
| Switching Mode: |
Double-Throw Type |
| Certification: |
CE |
| Brand: |
Ville |
Product Description
General:
HXGN-40.5(FF. R)/630-2050-31.5 Indoor HV SF6 Switchgear(here in after shorted as "RMU")is a 50Hz AC three-phase indoor HV power distribution equipment. It is a combination electrical apparatus with hold switch and ground connection switch and the bus of his return circuit seal up in the metal case aspect, adopting spring conduce motive construct, with SF6 gas regards to arc and insulation dielectric. It is suitable in40.5kV ring supply of power supply circuit or double radiation power feed promptly when the circuit breaks down, having raised the reliability and utilization ratio. Especially is suitable in power supply load density greatly and the industry business zone or rural area villages and towns of cable feed network. At the same time RUM is safety in use, not bullied waits influence, installs easy, keeps in repair few and save place, and is fit for loading in box type substation very much, load switch or the load switch-fuse combination the electrical apparatus in RMU also can be used as complete switchgear by self.
Structure:
The switch room forms by the bus sealed up between ability return circuit ( including load switch and ground connection switch) and his return circuit of metal case aspect. The outer covering is welded by 3mm's cold rolling steel plate. Every ability return circuit includes a load switch and a ground connection switch. The load switch is formed by the moving finger system of perpendicular moving and the still finger located down, when the switch floodgate, moving finger move downward and the load switch is put through. Ground connection switch is formed by moving and still knife, and after the spring is crossed, ground connection switch is out through quickly. There are 4 rectangle assembly process holes in top and back of switch room, and the observation window is loaded in the face of RMU, and can see "branch" and "close" of ground connection switch. The explosion proof device is loaded in back of RMU.
Load switch adopt the calm blowing inside type structure, it is strong in extinguish arc and just not influencing alternate and the insulation to the earth, moving and the still finger both have the arc finger, and has raised greatly in opening and breaking times.
The transformer protection return circuit is formed by fuse and the load switch room, the high pressure limit stream fuse is loaded in insulation shell aspect that poured by epoxy, after the fuse fusing , flick the pin and the load switch divides the floodgate.
Operating structure room is located in the face of RMU, in every ability return circuit, load switch process manpower or motor-driven energy storage spring structure, ground connection switch allocates manpower energy storage spring constructs, the face has operation hole to be used in load combined floodgate, and directive light of branch or combined floodgate an d motor-driven branch or combined floodgate button and has the imitation thread, switch situation display plate and locking seat, the operation of load switch and ground connection switch possesses the interlock device in order to prevent the glitch.
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
