Indoor Armoured FTTH Fiber Optic Cable (AMB-xC)
| Price: |
US $ 0.14-0.3/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FTTH-AMB-xC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| FTTH: |
Armoured Type (Anti-Rodent) |
| Application: |
Communication |
| Certification: |
CCC |
| Type: |
FTTH |
| Connection Structure: |
FC, Sc, St, LC, MTRJ |
| Sheath Material: |
Lszh |
Product Description

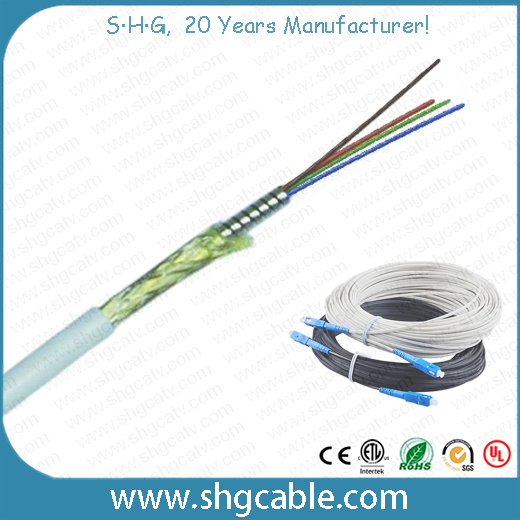

SHG indoor armoured fiber optical cable FTTH Fiber optic Cable, the 1-12 cores tight bufer fibers is positioned in the center, then covered with spiral stainless steel tube armouring, kevlar, optional with stainless steel wires braiding, and then the cable is completed with LSZH sheath, or economic UV & Flame retardant PVC.
Applications
Infrastructure cabling, especially on the extremely adverse environmental condition for construction;
Ideal for use in optical device, equipment;
Pigtails and Patch cord
Features
Excellent mechanical property & environment property, rodent-proof;
Flame resistant or UV performance;
Small diameter, stainless steel tube armour to protect the fiber, soft, agility, convenience for connection;
Satisfy various request, widely used in FTTH, high density installatioParameters| Fiber count | Tight Buffer Fiber (mm) | Cable dia. (mm) | Cable net Weight (Kg/km) | Min. Bending Radius (mm) | Max. Tensile Strength (N) | Min. Crush Pressure (N/100mm) |
| | | | | Static state | Dynamic state | Short term | Long term | Short term | Long term |
| 1 | 0.9 | 2.9 | 14 | 30 | 60 | 600 | 400 | 3000 | 1500 |
| 2 | 0.6 | 3.0 | 14 | 30 | 60 | 600 | 400 | 3000 | 1500 |
| 4 | 0.6 | 4.0 | 26 | 40 | 80 | 600 | 400 | 3000 | 1500 |
| 6 | 0.6 | 4.5 | 30 | 45 | 90 | 800 | 500 | 3000 | 1500 |
| 12 | 0.6 | 6.0 | 45 | 60 | 120 | 1000 | 600 | 3000 | 1500 |
Package1km wooden reel, then in pallet.
Workshop overview
SHG Communication Technology Ltd.
SHG Cable (Hangzhou) Co., Limited
Lin'an Longshine Imp. & Exp. Co., Ltd
SHG Group is aiming to manufacture quality warranty CATV & Optical fiber products, include communication cables & wires, researching and developing optical equipments, CATV equipments and headend equipments and network accessories. With ISO9001: 2000 certification, also achieved some international certificates such as ETL, CE, RoHS, REACH.
With abundant skilled workers and researching departments, owns the most advanced production lines, precise testing machines and strict complete quality control systems and managements, we can guarantee all of our products delivery comply with standards or according to customer's specific requirements, test 100% approval.
"Quality SHG, Innovation Development! " We are warmly welcome you come to visit us and discuss. We are sure you will satisfy and deserve your visit. Once you cooperate with us, you will feel find business goes easy.
Company Managing Ideas:
Customers: We are cooperating with a group of outstanding customers, whose demand for our products and service enrich our wealth. Only can we provide the best service quality and the most efficient work to make progress, so as to satisfy our customers' expectation and maintain our long-term relationship.
Products: We manufacture and sell top-quality products as well as cut down on costs with quantity production, so as to add the purchasing value for our customers.
Employees: Employees are deemed as the most important assets of our company. We'd employ those who are devoted to their work, who are good at learning and collaborating; Who are in pursuit of excellence, so as to satisfy a sense of achievement; Who are honest, fair and respectful to others; Who are promoted for their good performance rather than their politics or background.
Suppliers: We could not develop without the top-quality raw materials from our suppliers. We commit to build up a long-term commercial alliance with qualified suppliers, as we target to become partners based on trustworthy and reciprocal relationship.
Innovations: Innovation is the motive power of company growth and we take active actions to make it come true. For the sake of standing out in the competition, we challenge ourselves with the experimental spirit. To anticipate new changes and to incubate such changes are of great importance to our existing businesses as well as our newly-developed products or service.
Our advantage:
1. Excellent sales & service team. Our team all owns abundance export experience, it help us supply prompt and effective service for you.
2. Strict & complete QC system. From first step till goods loaded, we have complete QC and tracking system to warranty our products in good quality. And beside factory inside QC, we have separate QC belong to our trading company, we will do supervision during all procedure.
3. Wide-range products. Right now, we can offer full range products for CATV & optical area, we establish stable relationship with different factories, and also get some exclusive foreign sales agreements with them. And except this, our sourcing team can sourcing as specialist according to your requirements.
Once you cooperate with SHG, you will feel easy and convennient, and 'One-stop shop" purchase in China is not a problem to you anymore!
