Indoor Breakout Fiber Optical Cable 2.0mm Simplex Inside 10 Cores

Name: Indoor Breakout Fiber Optical Cable 2.0mm Simplex Inside 10 Cores
Brand: all-electronics-online.com
SKU: 721110572
Availability: InStock
Rating: 4.8 (79 reviews)

Price:	US $ 0.3-12/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-IOC-GJFHJY10
Used In:	Indoor Cabling
Fiber Capacity:	2, 4, 6, 8, 10, 12, 24, 48 Cores
MOQ:	2km
Print:	Customized
Jacket Color:	Yellow for Sm, Orange for mm and Aqua for Om3
Breakout:	2.0mm Simplex
Fiber Options:	OS1, OS2, Om1, Om2, Om3, Om4
Application:	Communication
Certification:	ISO9001
Type:	Single Mode or Multi Mode
Connection Structure:	Indoor Breakout Cable
Sheath Material:	PVC/LSZH

Product Description

FA-IOC-GJFHJY10, Indoor Breakout Fiber Optical Cable, 2.0mm Simplex Cable Inside/Fan-out/Breakout, PVC or LSZH Jacket, FRP, 10 Cores

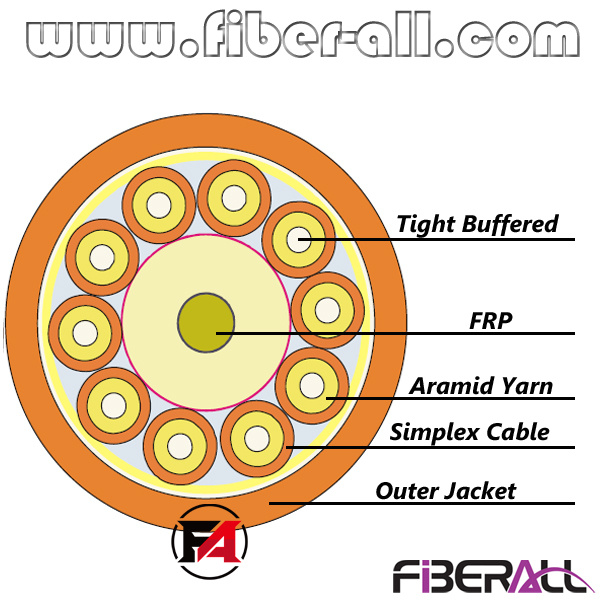

Structure Descriptions (Fiberall):
1 -Fiber Capacity: 2/4/6/8/12/16/24/48 Simplex 2.0mm Cable
2 - Fiber characteristic: OD: 242±7 um
3 -2.0 simplex optical fiber cable : yellow or orange color with number print at jacket to distinguish with each other

- White 0.9mm PVC
- OD: 0.87±0.05mm
-Thickness: 0.30±0.02mm
4 -Central strength member: FRP
5 -Outer jacket: LSZH/PVC

Fiber Characteristics:single mode fiber

Item	Unit	Specification
Attenuation	dB/km	1310nm≤0.4 1550nm≤0.3
Dispersion	Ps/nm.km	1285~1330nm≤3.5 1550nm≤18.0
Zero dispersion wavelength	Nm	1300~1324
Zero dispersion slope	Ps/nm.km	≤0.095
Fiber cutoff wavelength	Nm	≤1260
Mode field diameter	Um	9.2±0.5
Mode field concertricity	Um	<=0.8
Cladding diameter	um	125±1.0
Cladding non-circularity	%	≤1.0
Coating/cladding concertricity error	Um	≤12.5
Coating diameter	um	245±10
bending,dependence induced attenuation	1550nm, 1turns,32mm diameter 100rums,60mm diameter	≤0.5 db
Proof test	kpsi	≥100

Fiber Characteristics:multimode fiber

Item	Unit	Specification
Attenuation	dB/km	850 nm≤3.5 1300 nm≤1.5
Bandwidth	MHz·KM	50/125um	62.5/125 um
		850 nm≥200	850 nm≥160
		1300 nm≥200	1300 nm≥200
Cladding diameter	um	125±1.0
Cladding non-circularity	%	≤1.0
Coating/cladding concentricity error	Um	≤12.5
Coating diameter	um	245±10
bending,dependence induced attenuation	850nm,1300nm 100turns,75mm diameter	≤0.5 at 850 nm\1300 nm
Proof test	kpsi	≥100

Mechanical Parameters:

Fiber account	OD(mm)	Nominal Weight(kg/km)	Max.Tension (N)		Max. Crushing Resistance (N/100 )
			Short-term	Long-term	Short-term	Long-term
2	7.5+-0.5	50	400	120	1000	300
4	7.5+-0.5	51	400	120	1000	300
6	9.0+-0.5	68	700	200	1000	300
8	10.5+-0.5	88	800	250	1000	300
10	11.5+-0.5	102	1000	300	1000	300
12	12.5+-0.5	128	1200	400	1000	300
16	13.0+-0.5	168	1200	400	1000	300
24	15.5+-0.5	198	1200	400	1000	300
48	20+-0.5	246	1800	600	1000	300

Fiberall also provide breakout cable with 3.0mm simplex cable inside, maximum 12 Fibers.
