Indoor Cabling Multi-Fiber Optical Cable

Name: Indoor Cabling Multi-Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 724513552
Availability: InStock
Rating: 4.7 (49 reviews)

Price:	US $ 0.12-0.25/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJPFJH
Color:	Yellow
Operating Temperature:	-40ºC--+60ºC
Fiber Core:	4--12
Cable Standard:	Yd/T 1258.4-2005
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	4 Fibers G652D
Core:	4
Brand:	Hongan
Sheath Material:	LSZH

Product Description

Product Description

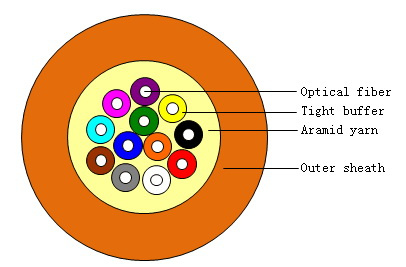

GJPFJH (Tight buffer fiber structure, Aramid yarn strength member, LSZH jacket)

Applications:
The kind of cable is suitable for the occasion of multi-way transmission between instrument and communication equipments.

Characteristics:
Lighter and small diameter, flame retardant , separated easily and excellent softness;
High strength of aramid yarn strength member, excellent tensile strength resistance;
Tight buffer fiber and dry structure makes construction and maintenance conveniently.

Operating Temperature:-20ºC~+70ºC

Transmission Performance

Item	62.5μm(OM1) 850nm/1300nm	50μm(OM2) 850nm/1300nm	50μm(OM3) 850nm/1300nm	SM 1310nm/1550nm
Attenuation Of Maximum Value(dB/km)	3.5/1. 5	3.5/1. 5	3.5/1. 5	0. 4/0. 3
Attenuation Of Typical Value(dB/km)	3.5/1. 5	3.0/1. 0	3.0/1. 0	0. 38/0. 25

Note: Other types of fiber can be provided according to the customer's demands.

Standards:
YD/T 1258. 4-2005 Indoor fiber optical cable Dual core cable

Technical Parameters(Typical Value):

The way of Cabling	Fiber Count	Specifications (mm)	Weight (kg/km)	Tensile(N) Long Short term term		Crush(N) Long Short term term		Bending Radius(mm) Static Dynamic
Level	4	4.7	19	130	440	200	1000	10D	20D

Note 1.D refers to the cable diameter;
      2.The relevant technical Parameters can be adjusted according to the customer's demands;
      3.PVC and other materials can be used as jacket according to the customer's demands.

Company introduction:

HONGAN GROUP is located in Shandong China.  We Specialized in producing  optical fiber cable, network data cable and multi pair telephone cables more than 30 years, also supply EPON , GPON, data center solutions and related equipments.

Our products have passed  ISO9001 ,ISO14001 and OHSAS18001, meet the requirements of CE, RoHS, TLC and UL, and have been exported to Thailand, Cambodia ,Burma, Vietnam, Laos, Europe, Africa etc., more than twenty countries.

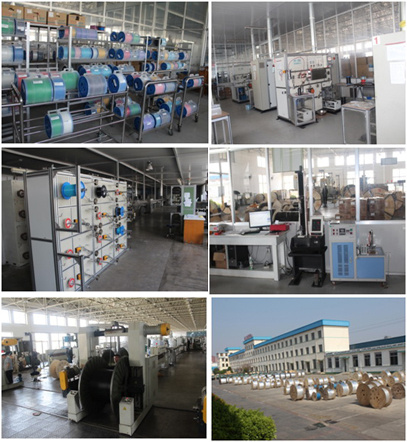

Advanced production lines:

Our customers

Our certificates:

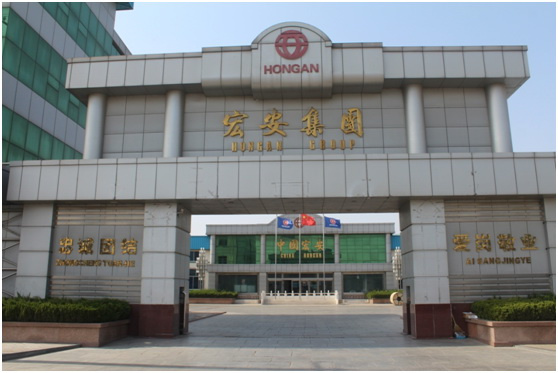

Hongan Group Co., Ltd, which locates at Wendeng city of Shandong peninsula, establised in 1985. It has 1500 employees and total assets is over 1.5 billion RMB yuan. It covers an area of 2 million square meters, construction area is 0.6 million square meters. Main products are optical fiber cables, data cables, communications cables etc. Its yearly productive capabilities are 4 million core kilometers, 0.5 million boxes, and 6 million pair kilometers respectively. It is now one of largest production, research and development, sales companies in China. It has 8 branches, such as Hongan Optical Fiber Cables, Hongan Data Cables, Hongan municipal Cables etc, provincial enterprise technology development center and post-doctor scientific research workstation.

Hongan optical fiber cable company has always stood on high starting point, high technology and high standard since it was founded. Production capacity is 50 million core kilometers. Respectively imported the world's advanced level of fiber optic cable production, testing equipment from Switzerland, United States, Japan and other countries. By technical exchange and cooperation with foreign countries, Hongan group has always stand in the forefront in the field of optical fiber manufacturing field.

Advanced equipment is the basic guarantee for the top quality products. Hongan group has invested $35 million and imported 22 sets advanced production lines of photoelectric communication cable and matched monitoring and control equipments and instruments, which imported from the United States, Japan and European Unions. Production capacity is 6 million pair kilometers. Products percent of pass is up to 99.9999%.
