Name: Indoor Cabling Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 808588405
Availability: InStock
Rating: 4.7 (77 reviews)

Price:	Negotiable/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYDA010
Size:	8.5mm
Strength Member:	FRP
FRP:	1.0mm
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Brand:	OEM or Geyida

Product Description

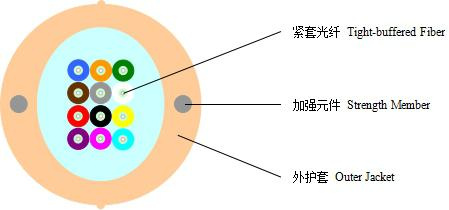

Indoor Cabling Optical Fiber Cable

Application:
1.Used in access network or as access cable from outdoor to indoor in customer premises network.
2.Used as access building cable in premises distribution system,especially used in indoor aerial access cabling.

Features:
1.Good mechanical and environmental characteristics,convenient for achieving the branch optical line in cabling.
2.Flame retardant characteristics meet the requirements of relevant standards.
3.Soft,flexible,easy to lay and splice,and with big capacity data transmission.
4.Meet various requirements of market and clients.

Options:
1.Fiber Type: G652d or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types fiber.
2.Fiber count: Total number of fibers in the cable.
3.Jacket material:environmental low smoke zero halogen flame retardant polyolefin(LSZH).
4.Jakcet color:(Including color of fiber)meets the requirements of relevant standards. or other contracted color.
5.Cable Dimension: The nominal cable dimension,or other contracted dimension.
6.Delivery length: 1KM or 2KM,or other contracted length.
7.Other requirements: Other contracted special requests.

Fiber core	Size	Weight(kg/km)	Tensile		crush		Mind.Bend radius		Range of temperature
			Long term	Short term	Long term	Short term	dynamic	Static
12	8.5MM	62	100	200	300	1000	20D	10D	-20~+60ºC

optical characteristics



		G.652	G.655	50/125um	62.5/125um
attenuation(+20ºC)	@850nm			≤3.0db/km	≤3.0db/km
	@1300nm			≤1.0db/km	≤1.0db/km
	@1310nm	≤0.36db/km	≤0.4db/km
	@1550nm	≤0.22db/km	≤0.23db/km
	@850nm			≤600mhz.km	≤200mhz.km
bandwidth(class A)	@1300nm			≥1200mhz.km	≥600mhz.km
numerical Aperture				0.200±0.015na	0.275±0.015na
cable cut-off waveleng th xcc				≤1620nm	≤1450nm
storage/operating temperature:-40ºC to +70ºC
storage/operating temperature:-40ºC to +70ºC
