Indoor Drop Fiber Optic Cable with Double Jacket

Name: Indoor Drop Fiber Optic Cable with Double Jacket
Brand: all-electronics-online.com
SKU: 822980935
Availability: InStock
Rating: 5 (104 reviews)

Price:	Negotiable/Meter
Min Order:	4000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Size:	5.5mm
Strength Member:	Kevlar Yarn
Inner Jacket:	LSZH
Outer Jacket:	LSZH
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	All Connectors
Material Shape:	Round Cable
Brand:	OEM or Geyida
Sheath Material:	LSZH

Product Description

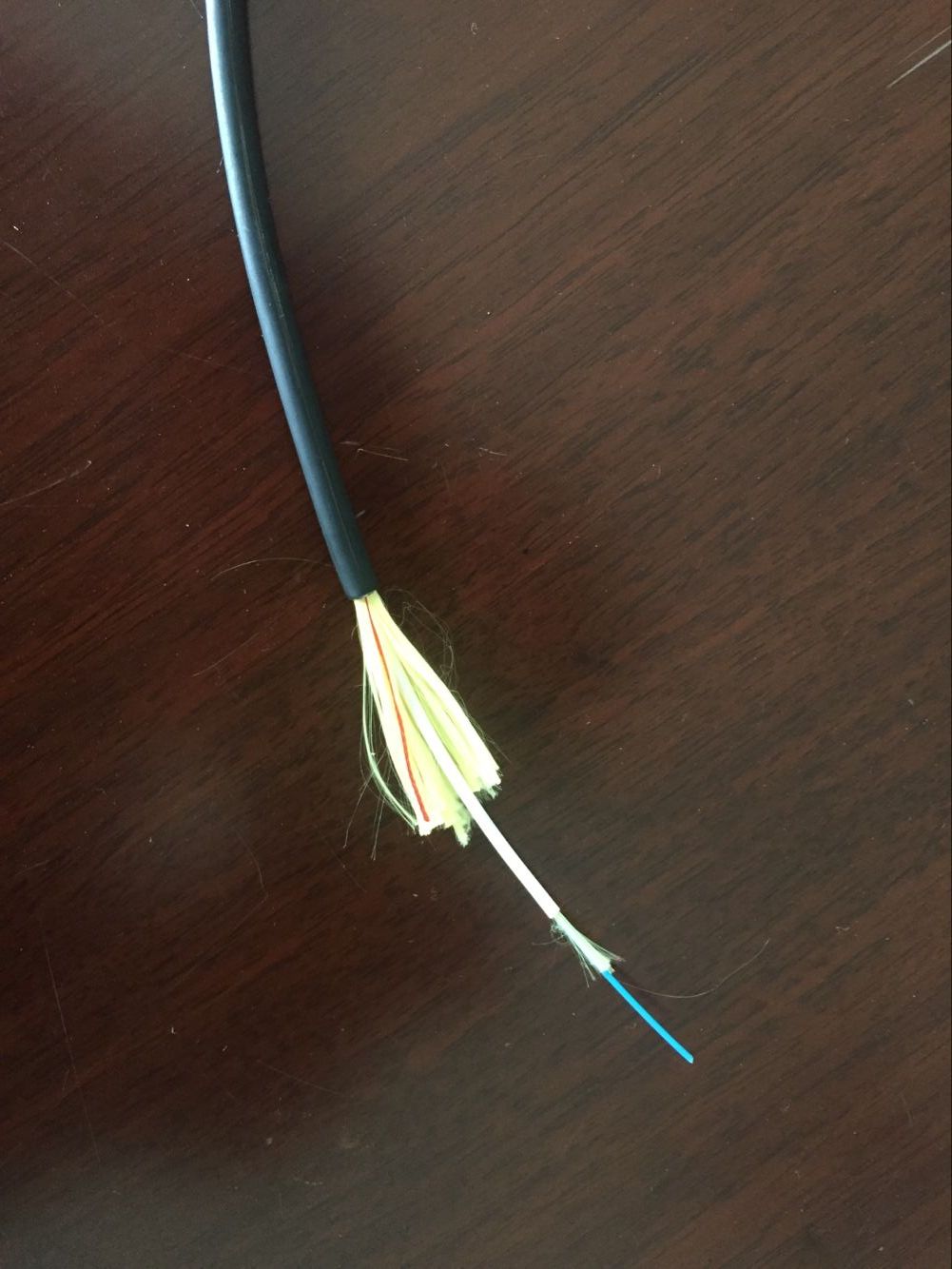

Indoor Drop Fiber Optic Cable with Double Jacket

Application:
Used in pigtails and patch cords;
Used in optical connections in optical communication equipment rooms and optical distribution frames,
Used in optical connections in optical apparatus and equipments
Drop Fiber Optic Cable from outdoor to indoor

Features:
Good mechanical and environmental characteristics,
Flame retardant characteristics meets the requirements of relevant standards,
The mechanical charateristics meet the requirements of relevant standards,
Soft,flexible,easy to splice, and with big capacity data transmission,
Meet various requirements of market and clients

Options:
1.Fiber Type: G652d or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types fiber
2.Fiber count: Total number of fibers in the cable
3.Jacket material:environmental low smoke zero halogen flame retardant polyolefin(LSZH)
4.Jakcet color:(Including color of fiber)meets the requirements of relevant standards. or other contracted color
5.Cable Dimension: The nominal cable dimension,or other contracted dimension
6.Delivery length: 1KM or 2KM,or other contracted length
7.Other requirements: Other contracted special requests

optical characteristics



		G.652	G.655	50/125um	62.5/125um
attenuation(+20ºC)	@850nm			≤3.0db/km	≤3.0db/km
	@1300nm			≤1.0db/km	≤1.0db/km
	@1310nm	≤0.36db/km	≤0.4db/km
	@1550nm	≤0.22db/km	≤0.23db/km
	@850nm			≤600mhz.km	≤200mhz.km
bandwidth(class A)	@1300nm			≥1200mhz.km	≥600mhz.km
numerical Aperture				0.200±0.015na	0.275±0.015na
cable cut-off waveleng th xcc				≤1620nm	≤1450nm
storage/operating temperature:-40ºC to +70ºC
storage/operating temperature:-40ºC to +70ºC
