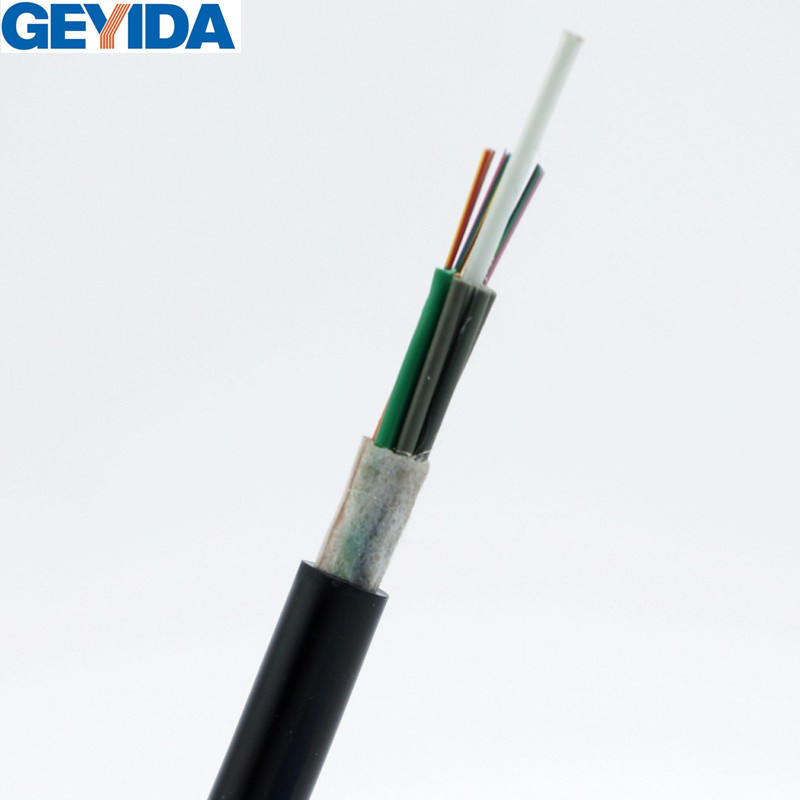

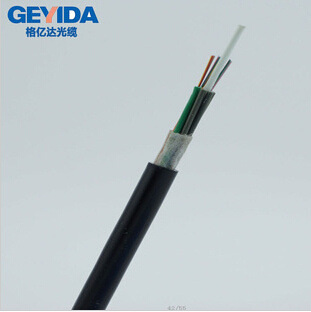

Indoor Dry Type Distributionoptic Fiber Cable

Indoor Dry Type Distributionoptic Fiber Cable
Price: US $ 0.5/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 2000/Meter
Pay Type: L/C,T/T,Western Union
Prod Model: GJPFJV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color: Black
Application: Communication
Certification: ISO9001
Type: Sm, mm
Brand: Neutral

Product Description

Dry Type Distribution Cable



Description:
1. Good mechanical and temperature performance
2. Small size and light weight
3. Dry structure type Loose tube with colored coating Fiber
4. Two FRP strength member and Aramid yarn strength member ensure good performance of tensile strength
5. Crush resistance and rlesxibility
optical characteristics

  G.652G.65550/125um62.5/125um
attenuation(+20ºC)@850nm  ≤3.0db/km≤3.0db/km
@1300nm  ≤1.0db/km≤1.0db/km
@1310nm≤0.36db/km≤0.4db/km
@1550nm≤0.22db/km≤0.23db/km
@850nm  ≤600mhz.km≤200mhz.km
bandwidth(class A)@1300nm  ≥1200mhz.km≥600mhz.km
numerical Aperture   0.200±0.015na0.275±0.015na
cable cut-off waveleng th xcc   ≤1620nm≤1450nm
storage/operating temperature:-40ºC to +70


Fiber Parameters
No.ItemsUnitSpecification
G.652D
1Mode Field Diameter1310nmμm9.2±0.4
1550nmμm10.4±0.5
2Cladding Diameterμm124.8±0.7
3Cladding Non-Circularity%0.7
4Core-Cladding Concentricity Errorμm0.5
5Coating Diameterμm245±5
6Coating Non-Circularity%6.0
7Cladding-Coating Concentricity Errorμm≤12.0
8Cable Cutoff Wavelengthnmλcc≤1260
9Attenuation(max.)1310nmdB/km0.4
1550nmdB/km0.3


Fiber Parameters
No.ItemsunitSpecification
62.5/125
1Core Diameterμm62.5±2.5
2Cladding Diameterμm124.8±1.0
3Cladding Non-Circularity%1.0
4/Core-Cladding Concentricity Errorμm1.5
5Coating Diameterμm245±7
6Coating Non-Circularity%6.0
7/Cladding-Coating Concentricity Errorμm12.0
8Bandwidth(min.)850nmMHz·km200
1300nmMHz·km600
9Attenuation Coefficient850nmdB/km3.0
1300nmdB/km1.0


Fiber Parameters
No.ItemsUnitSpecification
50/125
1Core Diameterμm50.0±2.5
2Cladding Diameterμm124.8±1.0
3Cladding Non-Circularity%1.0
4Core-Cladding Concentricity Errorμm1.5
5Coating Diameterμm245±7
6Coating Non-Circularity%6.0
7/Cladding-Coating Concentricity Errorμm12.0
8Bandwidth(min.)850nmMHz·km600
1300nmMHz·km1200
9Attenuation Coefficient850nmdB/km3.0
1300nmdB/km1.0



Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
