Indoor Fiber Optic Cable 2 to 48 Core SM Patch Cord

Name: Indoor Fiber Optic Cable 2 to 48 Core SM Patch Cord
Brand: all-electronics-online.com
SKU: 823417835
Availability: InStock
Rating: 4.9 (77 reviews)

Price:	US $ 0.2-2/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-55
Color:	Aqua, Yellow, Orange
Outer Sheath:	LSZH
Cores:	48
Fiber Type:	SM
Cable Diameter:	8.5mm
Insertion Loss:	0.5dB
Return Loss:	65dB
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001

Product Description

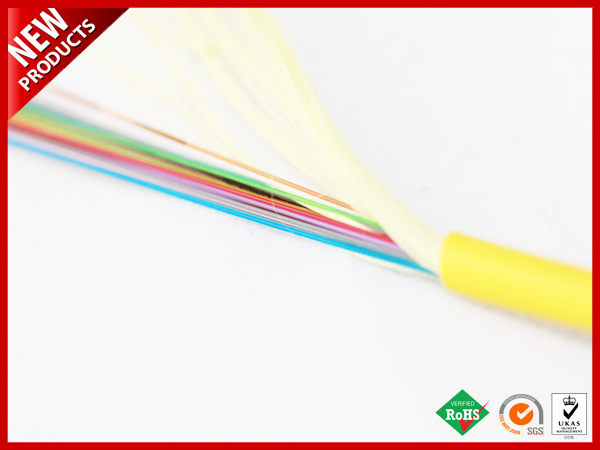

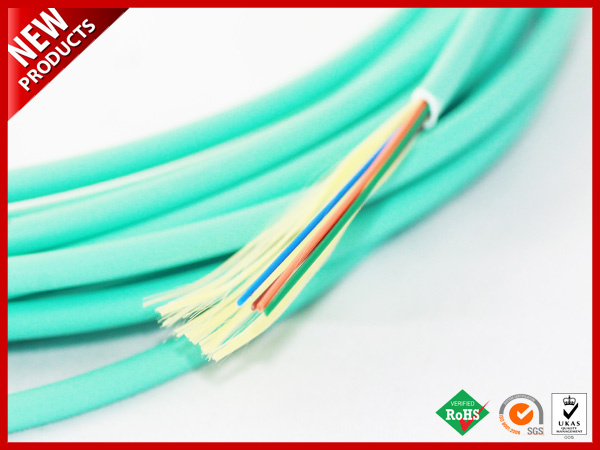

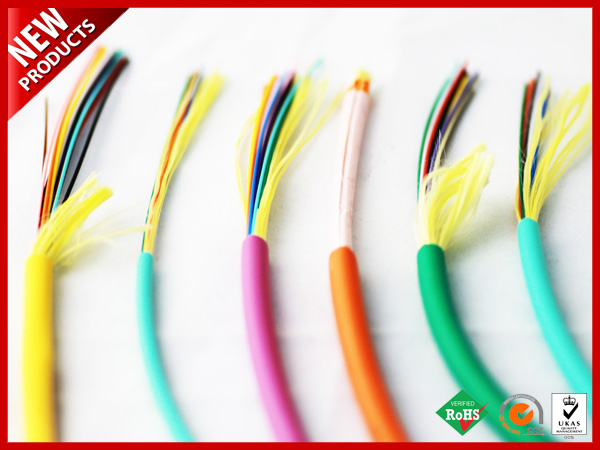

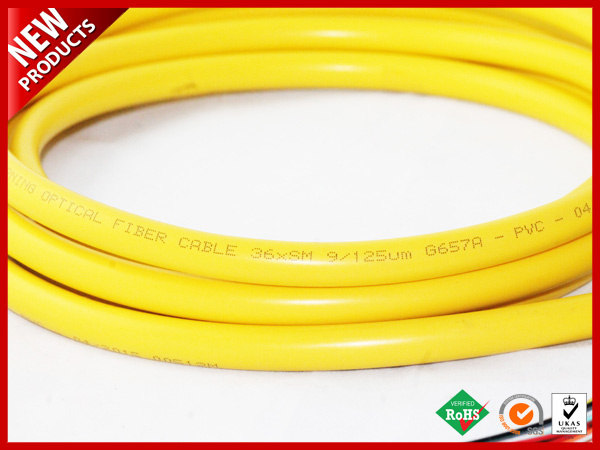

Indoor Fiber Optic Cable 2 to 48 Core SM Patch Cord

we provide this kind of indoor fiber optic cable ourselves.Indoor soft optic fiber cable with compact fiber structure, small size and light weight.The use of aramid as a strengthening element and reasonable process control make the cable have sufficient mechanical strength and good soft characteristics. The use of high quality PVC jacket provides excellent flame retardant performance for optic cable.

Features:

√ Outside diameter a little lighter flame retardant is stripping low attenuation;
√ High flexibility;
√ Tight set of optical fiber cable connection can be directly;
√ Without transition connector box and tail fiber;
√ Without cleaning waterproof ointment;
√ The cost of laying cable is low.

Application:

√  Used in pigtails and patch cord;
√  Used in optical connections in optical communication equipment rooms and optical distribution frames;
√  Used in optical connections in optical apparatus and equipments.

Products Details:

No.of Fibers	24
Size (mm)	4.5
Tensile (N)	Long Term	400
Tensile (N)	Short Term	800
Resistance (N/100mm)	Long Term	2000
Resistance (N/100mm)	Short Term	3000
Bending Radius (mm)	Dynamic	20D
Bending Radius (mm)	Static	10D
Cable Loss (db/km)	SMF-28e	1310nm
Cable Loss (db/km)	SMF-28e	1550nm
Thermal Properties	Transport and storage	-40°C to +70°C
	Installation	-5°C to +50°C
	Operation	-40°C to +60°C
Jacket Color	Black,Yellow or Customized
Weight	65.0kg/km

Shipment of Transportation:

We as quality proffesional manufacturer leading of Fiber Optic Products like Fiber Optic Cable, Fiber Optic Patch Cords, Fiber Optic Connector, Fiber Optic Attenuators, Fiber Optic PLC Splitters, Fiber Optic Termination Boxes and so on, more details please give us a contact freely and we try our best to supporting.

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
