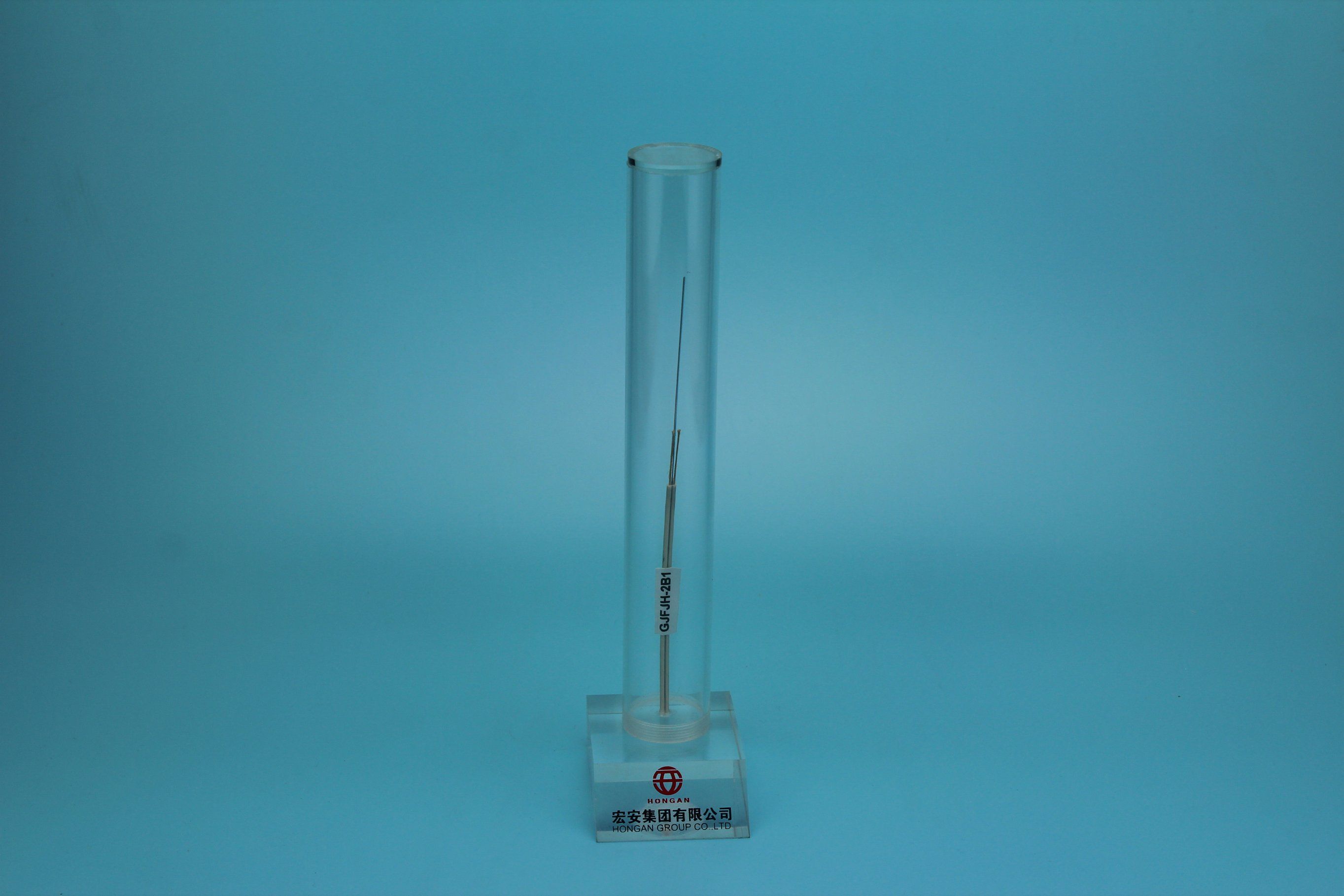

Indoor Fiber Optical Cable Dual Core Round Cable Gjfjh 2b1.3

Name: Indoor Fiber Optical Cable Dual Core Round Cable Gjfjh 2b1.3
Brand: all-electronics-online.com
SKU: 688691281
Availability: InStock
Rating: 4.3 (65 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJFJH 2B1.3
Color:	Black
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	2 Core
Allowed Lateral Pressure:	80
Core:	2
Sheath Material:	PE

Product Description

Product Description

GJFJH (Tight buffer fiber structure, Aramid yarn strength member, LSZH jacket)

Standards:
YD/T 1258. 2-2009 Indoor fiber optical cable The second part: Terminal cable assembly with single core and dual core cable

Technical Parameters(Typical Value):

Item		Parameters
Tight buffer fiber	Diameter	0.9±0.05mm
	Material	LSZH
	Tight Color	Red Green
	Optical Color	Red
	Performance	Low smoke(IEC-61034),Zero Halongens(IEC-60754-2),Flame retarndant(IEC-60332-1-2)
Strength member	Material	Aramid yarn
Outer jacket	Number of cores	2B6a2
	Diameter	4.0±0.1mm
	Material	LSZH
	Color	Black
	Thickness	0.8±0.05mm
	Performance	Low smoke(IEC-61034),Zero Halongens(IEC-60754-2),Flame retarndant(IEC-60332-1-2),Ultra-violet stabilizer(IEC-60068-2-5)
Min. bending radius	Storage	15 times cable diameter (IEC-60794-1-2 E3)
	Static	10 times cable diameter (IEC-60794-1-2 E3)
	Dynamic	30 times cable diameter (IEC-60794-1-2 E3)
Tensile performance	Short term	250N(IEC-60794-1-2 E1)
Tensile performance	Long term	125N(IEC-60794-1-2 E1)
Crush	Short term	500N/10cm(IEC-60794-1-2 E3)
Crush	Long term	150N/10cm(IEC-60794-1-2 E3)

Company introduction:

HONGAN GROUP is located in Shandong China. We Specialized in producing optical fiber cable, network data cable and multi pair telephone cables more than 30 years, also supply EPON , GPON, data center solutions and related equipments.Our products have passed ISO9001 ,ISO14001 and OHSAS18001, meet the requirements of CE, RoHS, TLC and UL, and have been exported to Thailand, Cambodia ,Burma, Vietnam, Laos, Europe, Africa etc., more than twenty countries.

Advanced production lines:

Our customers:

Our certificates:

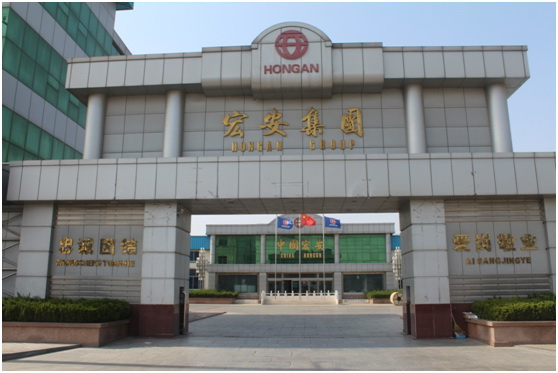

Hongan Group Co., Ltd, which locates at Wendeng city of Shandong peninsula, establised in 1985. It has 1500 employees and total assets is over 1.5 billion RMB yuan. It covers an area of 2 million square meters, construction area is 0.6 million square meters. Main products are optical fiber cables, data cables, communications cables etc. Its yearly productive capabilities are 4 million core kilometers, 0.5 million boxes, and 6 million pair kilometers respectively. It is now one of largest production, research and development, sales companies in China. It has 8 branches, such as Hongan Optical Fiber Cables, Hongan Data Cables, Hongan municipal Cables etc, provincial enterprise technology development center and post-doctor scientific research workstation.

Hongan optical fiber cable company has always stood on high starting point, high technology and high standard since it was founded. Production capacity is 50 million core kilometers. Respectively imported the world's advanced level of fiber optic cable production, testing equipment from Switzerland, United States, Japan and other countries. By technical exchange and cooperation with foreign countries, Hongan group has always stand in the forefront in the field of optical fiber manufacturing field.

Advanced equipment is the basic guarantee for the top quality products. Hongan group has invested $35 million and imported 22 sets advanced production lines of photoelectric communication cable and matched monitoring and control equipments and instruments, which imported from the United States, Japan and European Unions. Production capacity is 6 million pair kilometers. Products percent of pass is up to 99.9999%.
