Indoor High Voltage Vacuum Circuit Breaker Zn63 (VS1) -24kv

Indoor High Voltage Vacuum Circuit Breaker Zn63 (VS1) -24kv
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: ZN63(VS1)-24KV
Rated Voltage: 24kv
Rated Current: 630A 1250A,1600A,2500A,4000A
Rated Short Breaker Current: 25ka,31.5ka,40ka
Breaking Capacity: High Voltage Circuit Breakers
Operation: Electric Type
Speed: High-Speed Circuit Breaker
Arc-extinguishing Medium: Vacuum
Installation: Fixed
Poles Number: 3
Certification: CCC
Structure: Conventional Circuit Breaker

Product Description

Product Description

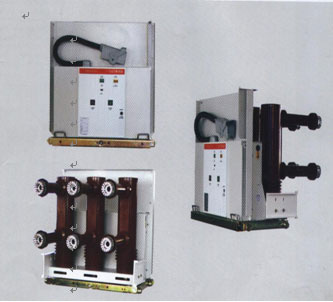

ZN63(VS1)-24 series handcart type indoor vacuum circuit breaker is rated voltage 24kV, three-phase AC 50Hz indoor high-voltage switchgear, apply for power stations, substations, and industrial and mining enterprises to control or protection transmission and distribution systems, specially for the important high altitude breaking load and frequent operation place.

Circuit breaker manufacturing accordance with our national standard GB1984-2003 "AC high voltage circuit breakers", DL/T403-2000 "3.6~40.5kV indoor vacuum circuit breaker ordering technology"; and the related IEC standards and reliable interlock function.

Circuit breaker operating mechanism for the spring energy storage type, can use AC and DC energy storage operations, can also be used manually.

Circuit breaker can be equipped with long life permanent magnetic actuator, mechanical life can reached 60000times, can be used for extremely frequent operation place.

Circuit breaker designed to repackage the structure before and after, both can be used as a fixed installation unit, can also be equipped with the chassis as used in the mounted unit.

 The Use of Environmental Conditions

  1. Ambient Temperature: not higher than +40°C, not less than -15°C.
  2. Altitude: not exceed 1000m.
  3. Relative Humidity: daily average of not more than 95%, month average of not more than 90%.
  4. Earthquake Intensity: not more than 8.
  5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.

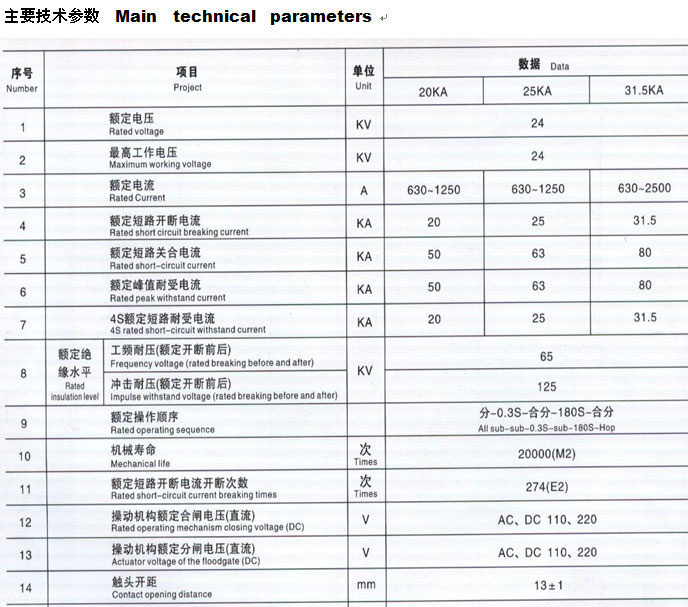

Main Technical Parameters:

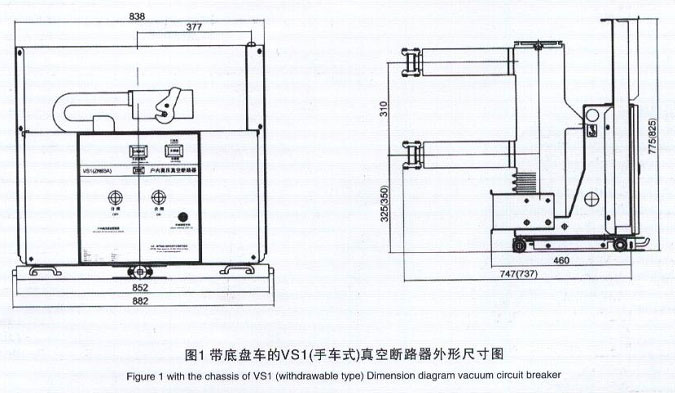

Outline Dimensions:
