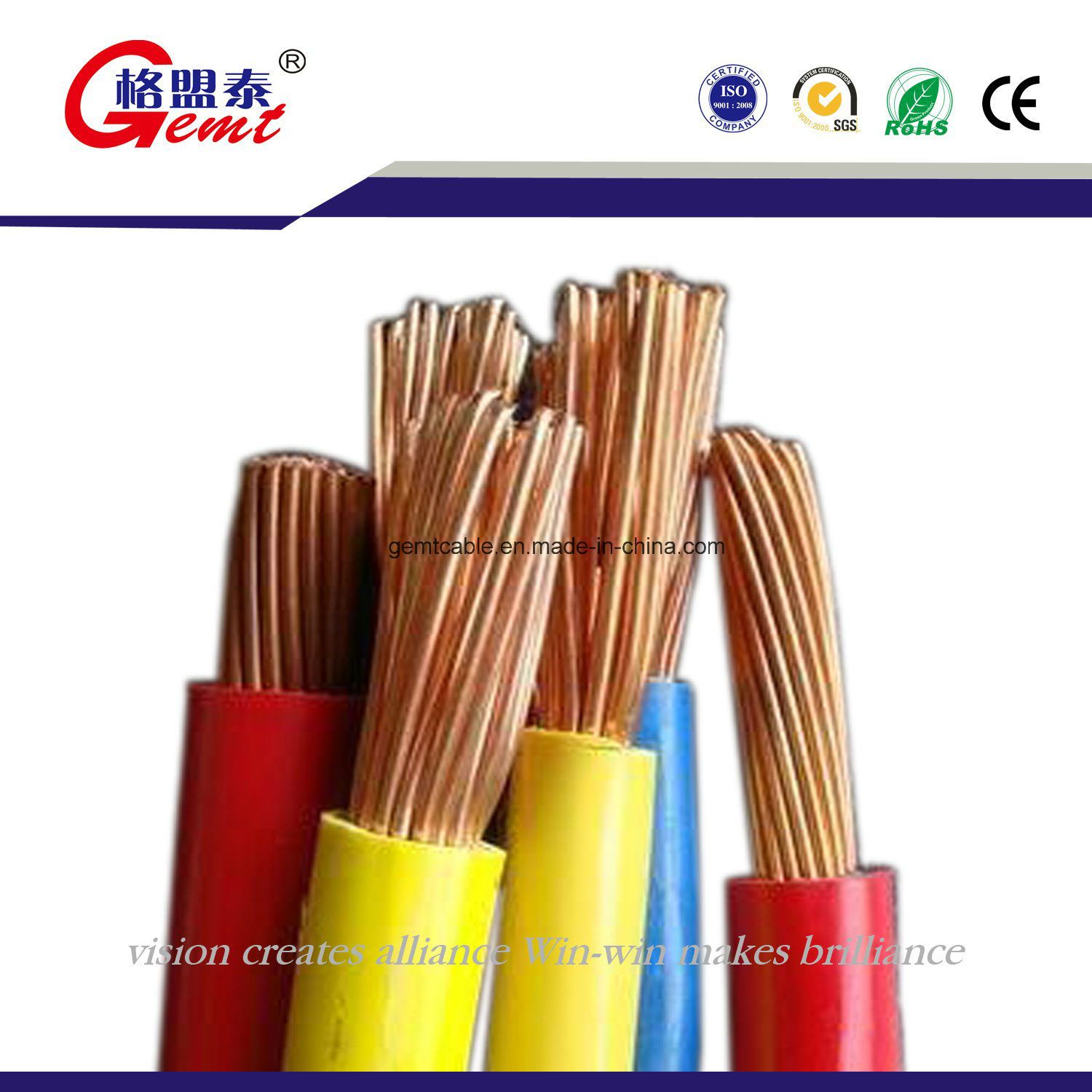

Indoor House Wiring Thw/Bvr Cable

Name: Indoor House Wiring Thw/Bvr Cable
Brand: all-electronics-online.com
SKU: 802815245
Availability: InStock
Rating: 4.8 (127 reviews)

Price:	US $ 1-15/Roll
Min Order:	100/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GEMTBVR001
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PVC
Application:	Household,Mechanic,Lighting
Range Of Application:	Household,Mechanic,Lighting
Brand:	Gemt

Product Description

Indoor House Wiring THW/BVR Cable
SPEC AND DESCRIPTION:
The table below shows various data including both the resistance of the various wire gauges and the allowable current (ampacity) based on plastic insulation. The diameter information in the table applies to solid wires. Stranded wires are calculated by calculating the equivalent cross sectional copper area. AC frequencies equal to or less than 60 Hz, and does not take skin effect into account. Turns of wire is an upper limit for wire with no insulation.

AWG	Diameter		Turns of wire		Area		NEC copper wire ampacity with 60/75/90 °C insulation (A)[7]
AWG	(inch)	(mm)	(per in)	(per cm)	(kcmil)	(mm2)	NEC copper wire ampacity with 60/75/90 °C insulation (A)[7]
0000 (4/0)	0.4600	11.684	2.17	0.856	212	107	195 / 230 / 260
000 (3/0)	0.4096	10.404	2.44	0.961	168	85.0	165 / 200 / 225
00 (2/0)	0.3648	9.266	2.74	1.08	133	67.4	145 / 175 / 195
0 (1/0)	0.3249	8.252	3.08	1.21	106	53.5	125 / 150 / 170
1	0.2893	7.348	3.46	1.36	83.7	42.4	110 / 130 / 150
2	0.2576	6.544	3.88	1.53	66.4	33.6	95 / 115 / 130

4	0.2043	5.189	4.89	1.93	41.7	21.2	70 / 85 / 95
5	0.1819	4.621	5.50	2.16	33.1	16.8
6	0.1620	4.115	6.17	2.43	26.3	13.3	55 / 65 / 75
8	0.1285	3.264	7.78	3.06	16.5	8.37	40 / 50 / 55
9	0.1144	2.906	8.74	3.44	13.1	6.63
10	0.1019	2.588	9.81	3.86	10.4	5.26	30 / 35 / 40
11	0.0907	2.305
12	0.0808	2.053	12.4	4.87	6.53	3.31	25 / 25 / 30
14	0.0641

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

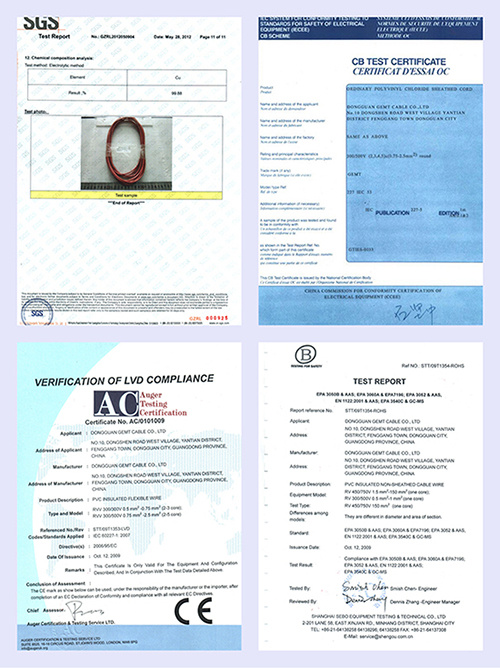

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
