Indoor IP20 750W 12V LED Driver with Ce

Name: Indoor IP20 750W 12V LED Driver with Ce
Brand: all-electronics-online.com
SKU: 780846275
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 71/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E750
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220V
Input Current:	7.0A
Output Voltage:	12V
Output Current:	62.5A
Dimming:	Not Dimmable
Built-in Active Pfc:	No Pfc
Power Factor:	Low
Efficiency:	>75%
Installation:	Indoor
IP Rating:	IP 20
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

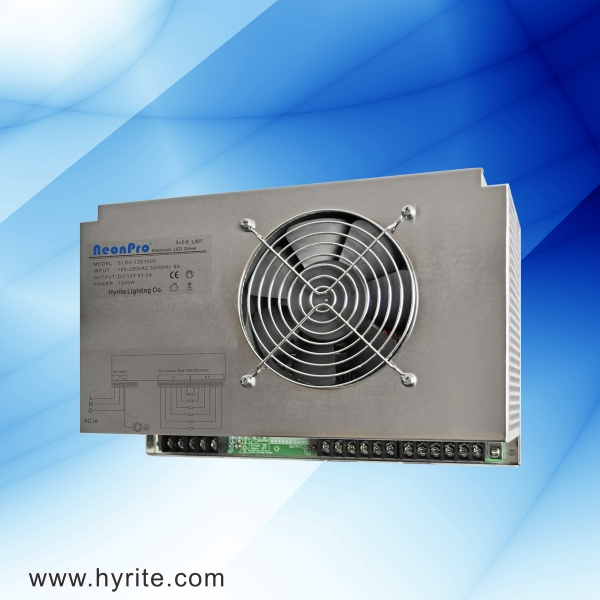

Indoor IP20 750W 12V LED driver with Ce

-Designed for large size signage, decoration or lighting projects
-Ideal driver for LED pixel lamp, strip, bar light, wall washer, module...
-High output power up to 800W

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technology details:

Model no.	ELDV-12E750
Input voltage	180-250 VAC 50/60 Hz
Max. power	750W
Output type	Constant voltage
Dimming	Not dimmable
Built-in active PFC	No PFC
Power factor	Low
Efficiency	>75%
AC inrush	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	62.5A Max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40
Installation	Indoor
IP rating	IP 20
Cooling	Built-in electric fan
Connection input/output	Input:terminal Output: terminal(six)
Dimensions(LWH)	293188.789.8 mm
Weight(kg)	2.7
Packing information	5 Pcs/ Carton, G.W 14.5 KG

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
