Indoor Low Voltage Epoxy Resin Current Transformer (CT)

Name: Indoor Low Voltage Epoxy Resin Current Transformer (CT)
Brand: all-electronics-online.com
SKU: 757853715
Availability: InStock
Rating: 5 (44 reviews)

Price:	US $ 15-16/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMZ(J)1-0.66
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Low Voltage:	Current Transformer
CT:	Current Transformer
Indoor:	Epoxy Resin
China:	Factory
LV:	50/60Hz
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

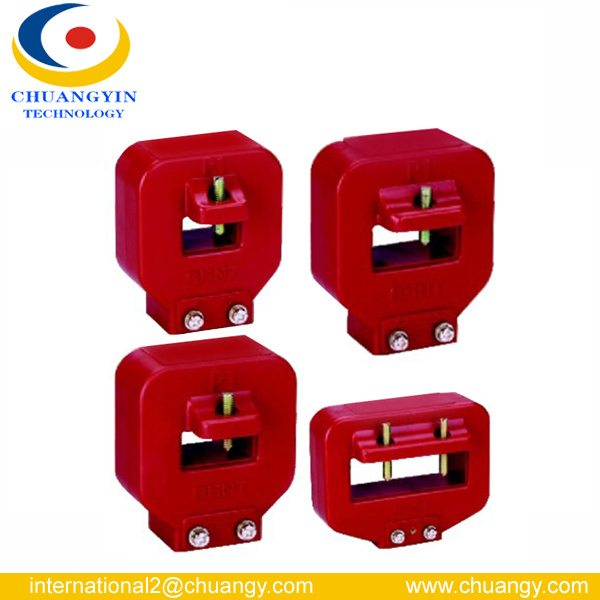

LMZ(J)1-0.66 current transformer is used indoor with rated voltage below 0.66kV, it is widely used form ensuring current, electric energy and protective relaying in the power system with the rated frequency 50/60Hz, epoxy resin casting
Current transformer adopts fixing Busbar installation
Standard:
IEC60044-1
IEC61869-1&2

Main technical parameter and domension

Rated current ratio(A)	Rated output(VA)				NP
Rated current ratio(A)	0.5	0.5S	0.2	0.2S	NP
100/5	5				1
150/5	5	5	5	5	1
200/5	5	5	5	5	1
250/5	5	5	5	5	1
300/5	5	5	5	5	1

Rated current ratio(A)	Rated output(VA)				NP
Rated current ratio(A)	0.5	0.5S	0.2	0.2S	NP
150/5	5				1
200/5	5	5			1
250/5	5	5	5		1
300/5	5	5	5	5	1
400/5	5	5	5	5	1

Rated current ratio(A)	Rated output(VA)				NP
Rated current ratio(A)	0.5	0.5s	0.2	0.2s	NP
400/5	5	5	5	5	1
500/5	5	5	5	5	1
600/5	5	5	5	5	1

Rated current ratio(A)	Rated output(VA)				NP
Rated current ratio(A)	0.5	0.5s	0.2	0.2s	NP
750/5	10	10	10	10	1
800/5	10	10	10	10	1
1000//5	10	10	10	10	1
1200/5	10	10	10	10	1
1500/5	10	10	10	10	1
2000/5	20	15	15	15	1

Note: Upon requset we are glad to offer transformers according to other technical specs.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
