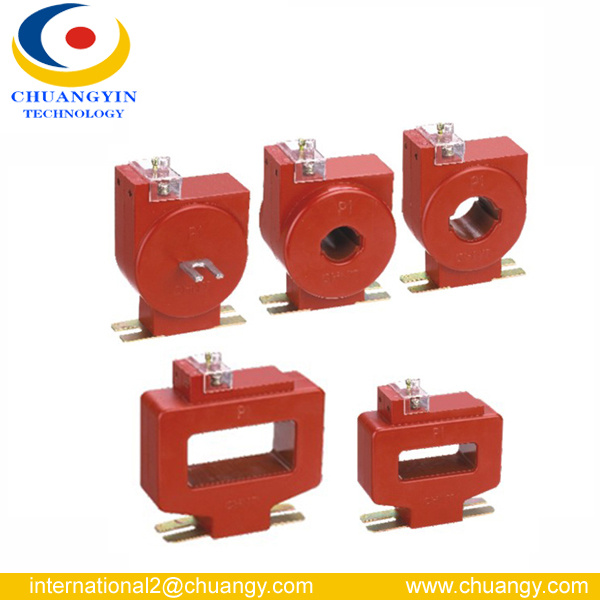

Indoor Low Voltage Epoxy Resin Current Transformer

Name: Indoor Low Voltage Epoxy Resin Current Transformer
Brand: all-electronics-online.com
SKU: 757864735
Availability: InStock
Rating: 4.3 (77 reviews)

Price:	US $ 15-16/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LFZD 0.66 &LMZD 0.66 current transformer
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	Epoxy Resin
Grey:	Epoxy Resin
Color:	Red
Transformer:	Low
Ring Type:	12V
China:	Factory
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

LFZD-0.66 and LMZD-0.66 of CT installed indoor environment,
rated frequency is 50Hz
It is suitable for measuring current,
energy in AC circuit below 0.66kV.
Standard:
IEC61869-1&2
LMR-0.6 Current transformer is used indoor with rated voltage below 0.66kV,it is widely used for easuring current,electric energy and protective relaying in the power system with the rated frequency 50Hz,epoxy resin casting current transformer adpots fixing busbar installation.
adpots fixing busbar installation.

LMR(45-200)-0.66 Rated current ratio (A)	Rated output(VA)				Np
LMR(45-200)-0.66 Rated current ratio (A)	0.5	0.5S	0.2	0.2S	1
100/5	5	5	2.5	2.5	1
200/5	5	5	2.5	2.5	1
300/5	5	5	2.5	2.5	1
400/5	2	2	2.5	2.5	1
500/5	5	5	2.5	2.5	1
600/5	5	5	2.5	2.5	1
800/5	5	5	2.5	2.5	1
1000-2000/5	10	10	10	10	1
2000-4000/5	20	20	20	20	1
4000-8000/5	30	30	30	30	1

Current Transformer, Low Voltage Current Transformer, Instrument Transformer, Transformer, CT, Voltagetransformer, Power Transmission, Power Supply, Power Supply Transformer, Electric Transformer, Electrical Transformer, Toroidal Transformer, Power Transformer, Electronic Transformer, Isolation Transformer

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
