| Prod Model: |
Indoor Optical Breakout Fiber Cable |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Fiber Cable |
Product Description

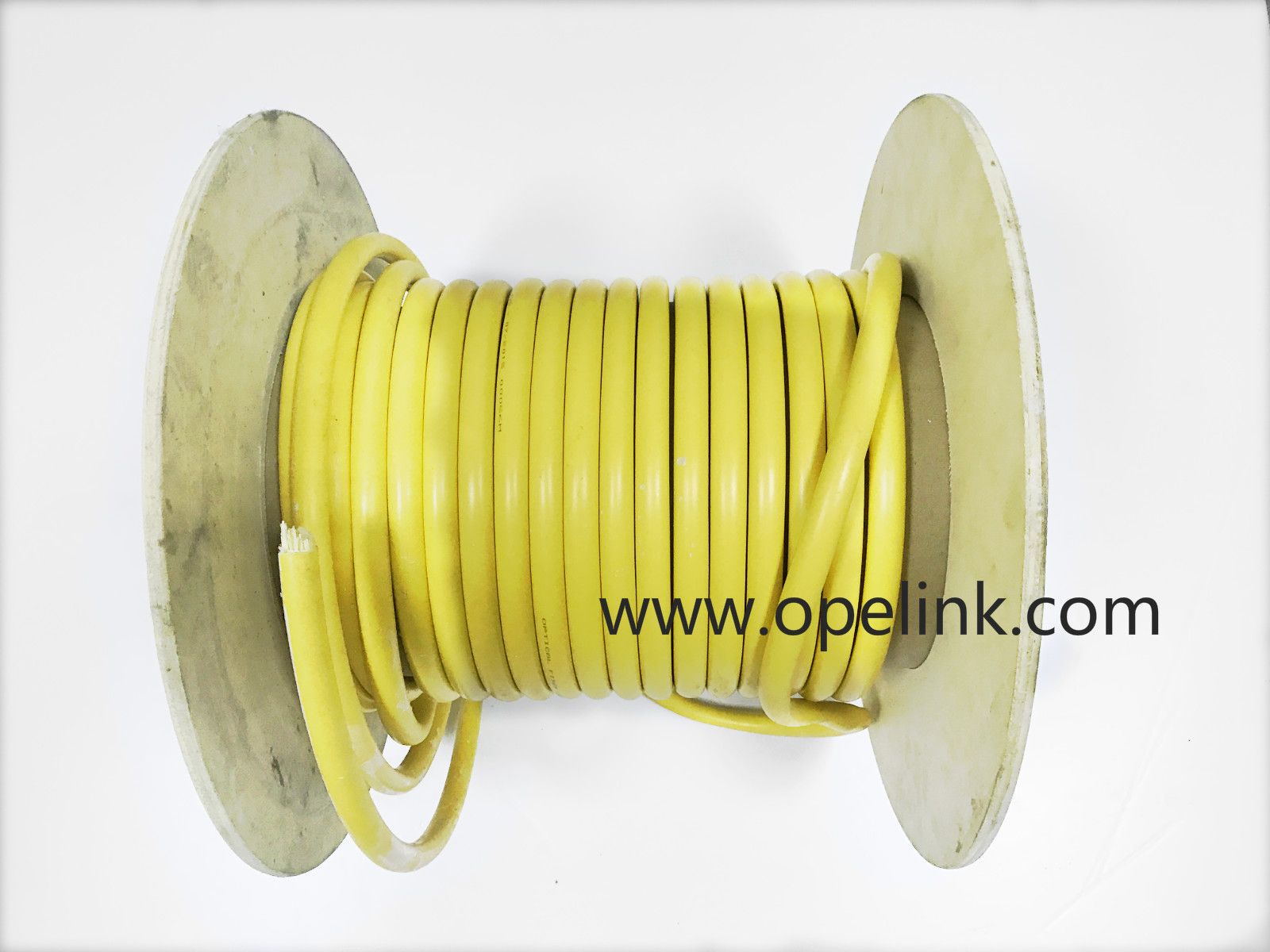

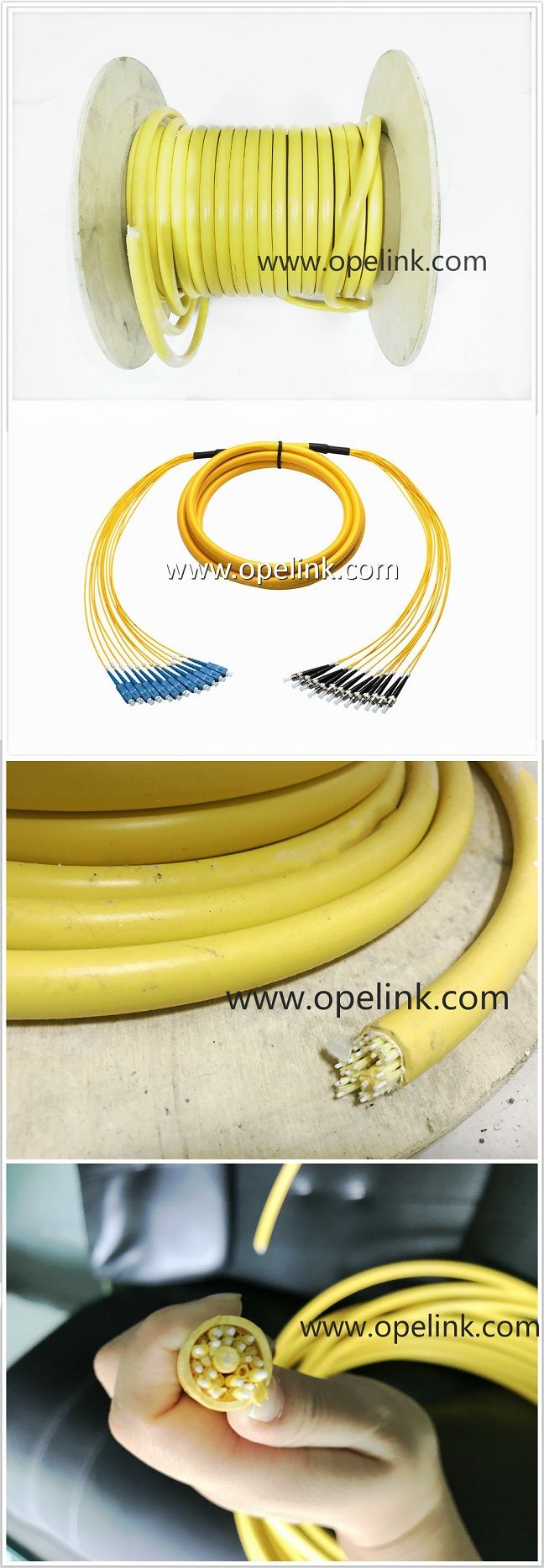

PVC/LSZH Colored Indoor Optical Fiber Cable
Singlemode/Multimode Breakout Fiber Cable
Feature:Excellent corrosion resistant, waterproof, flame retardant properties;
compact structure, small size;
Flexible, small bending radius, and excellent stress and strain properties.
Application:
Excellent corrosion resistant, waterproof, flame retardant properties;
compact structure, small size;
Flexible, small bending radius, and excellent stress and strain properties.
Specification: | MM | G.651 | A1a.1:50/125 | color:Orange or other |
| A1a.2:OM3 | color:Aqua or other |
| A1a.3:OM4 | color: Violet or other |
| A1b:62.5/125 | color: Orange or other |
| SM | G.652D | color:Yellow or other |
| G.657(A1,A2 ,B3) | color:Green or other |
| Jacket material:PVC,LSZH or Other |
Technical Parameters: | Fiber count | 6 | 12 | 24 | 48 |
| Outer diameter(mm) | 9.0 | 12.5 | 15.5 | 20.5 |
| Nominal Weight(kg/km) | 68 | 128 | 198 | 246 |
Crush Resistance
Long/Short term
(N/100mm) | 300
1000 | 300
1000 | 300
1000 | 300
1000 |
Tensile Strength(N)
Long/Short term | 200
700 | 400
1200 | 400
1200 | 600
1800 |
Min.Bending
Radius(mm) | Dynamic | 20D |
| static | 10D |
| Temperature Range | -20ºC-70ºC |
| MM | G.651 | A1a.1:50/125 | color:Orange or other |
| A1a.2:OM3 | color:Aqua or other |
| A1a.3:OM4 | color: Violet or other |
| A1b:62.5/125 | color: Orange or other |
| SM | G.652D | color:Yellow or other |
| G.657(A1,A2 ,B3) | color:Green or other |
| Jacket material:PVC,LSZH or Other |
Order Information:
| Fiber Core | Fiber Type | Count | Cable OD | reinforcer | Fiber Jacket | Jacked Color |
1=G652D
2=G657A1
3=G657A2
4=50/125
5=62.5/125
6=OM3
7=OM4
X=other | S=simplex
Z=zipcord Duplex
Y=Round Duplex
F=Flat Duplex
B=Breakout
D=Distribution
R=Ribbon
A=Armored
W=Waterproof
X=other | 001=1 core
002=2 cores
003=3 cores
024=24 cores
XXX=other | 01= 0.9mm
02=2.0mm
03=3.0mm
04=2.9*6.0mm
05=1.9*3.1mm
06=4.2*7.6mm
07=9.0mm
08=11.2mm
09=4.0*7.0mm
XX=other | 1=Kevlar
2=FRP
3=Armoured steel tape
4=Steel wire
5= Armoured steel tape & Steel wire
| PR=PVC-OFNR
PP=PVC-OFNP
LH=LSZH
PE=PE
PU=TPU
LN=Nylon
HT=Hytrel
xx=other | 01=Blue 02=Orange
03=Green 04=Brown
05=Slate 06=White
07=Red 08=Black
09=Yellow 10=Violet
11=Rose 12=Aqua
13=12 Color
XX=other |
-----------------------------------------------------FAQ------------------------------------------------------Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
