Indoor Optical Fiber Cable Duplex Zipcord Optic Fiber Cable

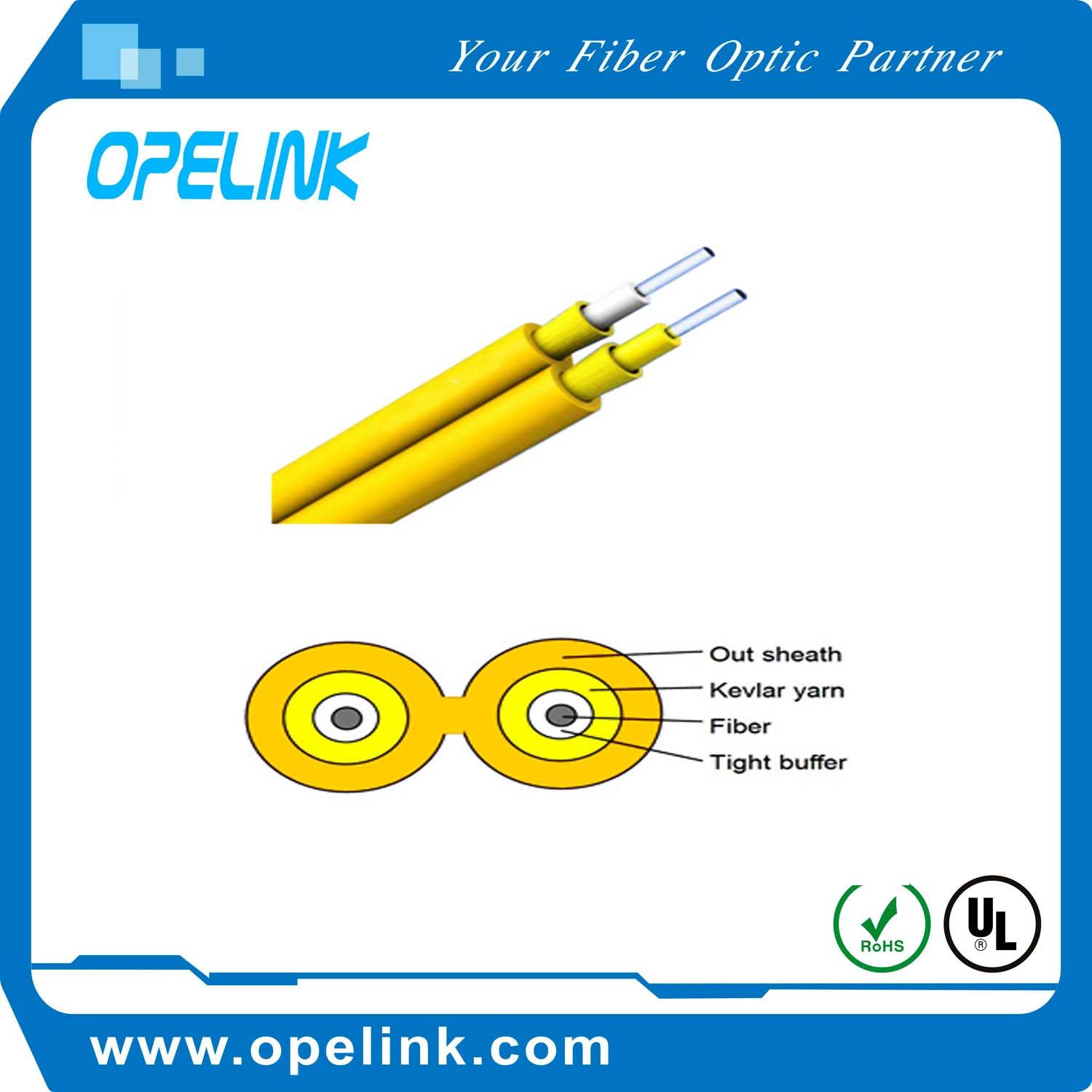

Name: Indoor Optical Fiber Cable Duplex Zipcord Optic Fiber Cable
Brand: all-electronics-online.com
SKU: 807669215
Availability: InStock
Rating: 4.4 (50 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Duplex Zipcord Optic Fiber Cable
Application:	Medicine
Type:	Single-mode Fiber
Certification:	ISO9001

Product Description

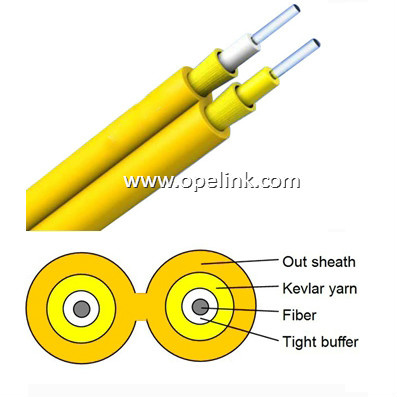

Indoor Optical Fiber Cable Duplex Zipcord optic Fiber Cable

Feature:
High tensile strength due to aramid strength member;
Good flame retardant properties;
Stable temperature performance;
Excellent stripability with tight buffered fiber;
High uniformity of geometrical characteristics.

Application:
Indoor riser level and plenum level cabling;
Fiber jumper or pigtail;
Indoor riser level and plenum level cabling;
Interconnections between instruments and communication Equipment

Technical Parameters:

Outer diameter(mm)		1.6x3.3	1.8X3.7	2.0X4.1	2.8X5.7
Nominal Weight(kg/km)		5.7	6.7	8.2	13.2
Crush Resistance Long/Short term (N/100mm)		100 500	100 500	100 500	100 500
Tensile Strength(N) Long/Short term		160 80	160 80	200 100	300 160
Min.Bending Radius(mm)	Dynamic	20H
	static	10H
Temperature Range		-20ºC-70ºC

Fiber Cable Characteristics:

MM	G.651	A1a.1:50/125	color:Orange or other
		A1a.2:OM3	color:Aqua or other
		A1a.3:OM4	color: Violet or other
		A1b:62.5/125	color: Orange or other
SM	G.652D		color:Yellow or other
	G.657(A1,A2 ,B3)		color:Green or other
Jacket material:PVC,LSZH or Other

Order Information:

Fiber Core	Fiber Type	Count	Cable OD	Reinforce	Fiber Jacket	Jacked Color
1=G652D 2=G657A1 3=G657A2 4=50/125 5=62.5/125 6=OM3 7=OM4 X=other	S=Simplex Z=Zipcord Duplex Y=Round Duplex F=Flat Duplex B=Breakout D=Distribution R=Ribbon A=Armored W=Waterproof X=other	001=1 core 002=2 cores 003=3 cores 024=24 cores XXX=other	01= 0.9mm 02=2.0mm 03=3.0mm 04=2.96.0mm 05=1.93.1mm 06=4.27.6mm 07=9.0mm 08=11.2mm 09=4.07.0mm XX=other	1=Kevlar 2=FRP 3=Armored steel tape 4=Steel wire 5= Armored steel tape & Steel wire	PR=PVC-OFNR PP=PVC-OFNP LH=LSZH PE=PE PU=TPU LN=Nylon HT=Hytrel xx=other	01=Blue 02=Orange 03=Green 04=Brown 05=Slate 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12 Color XX=other
