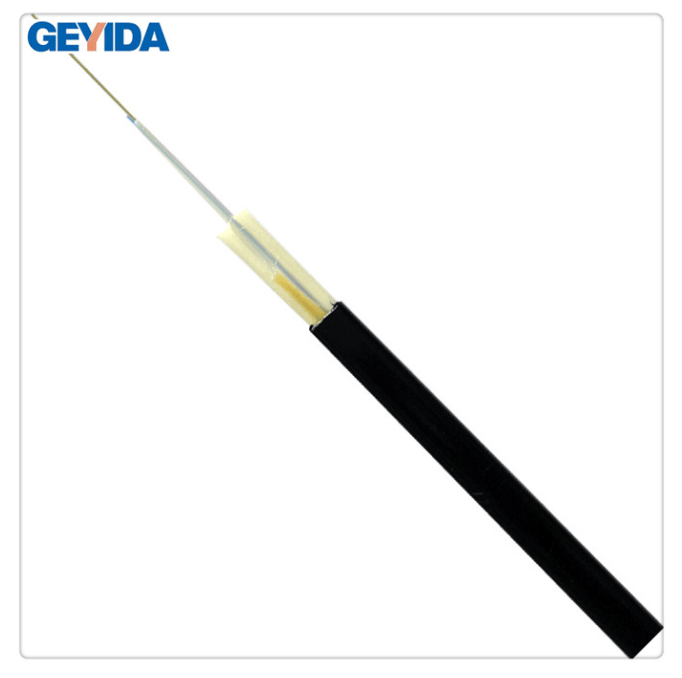

Indoor/Outdoor 12 Core Fiber Optic Cabling Cable

Name: Indoor/Outdoor 12 Core Fiber Optic Cabling Cable
Brand: all-electronics-online.com
SKU: 684718562
Availability: InStock
Rating: 5 (37 reviews)

Price:	US $ 0.15-0.2/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYDA011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Dimension:	9.7mm
Fiber Count:	12 Core
Jacket Color:	Black
Strength Member:	FRP
Jakcet Maretrial:	PE
Application:	Indoor Cabling
Type:	Single-mode Fiber
Certification:	ISO9001
Sheath Material:	Lszh
Brand:	Geyida
Connection Structure:	Fiber

Product Description

Indoor 12 Core Fiber Optic Cabling Cable

Discripution

The fibers,250um,are positioned in a high modulus plastic.The tubes are filled with a water-resistant filling compound.The tube is wrapped with a layer of PSP longitudinally.Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and water-resistant.Two parallel steel wires are placed at the two sides of the steel tape.The cable is completed with a Lszh ,sheath.

Application
1. Used in access network or as access cable cable from outdoor to indoor in customer premises network
2. Used in the integrated wiring building into line, especially in indoor and outdoor aerial access cabling

Features
1.Small size,light weight and compact structure.
2. Good mechanical and environmental performance
3. Flame retardant (or secondary) performance meet the requirements of relevant standards
4. Soft, flexible, convenient, and support the large capacity data transmission
5. Meet the market and the requirements of the users

Delivery time : according to the customer's quantity ,general ,within 15 days after get the payment.

Package: we suggest use 2km/drum ,or according to the customer's requirement.

Cable Parameters

Items		Specifications
Fiber Count		12
Tight-buffered Fiber	Dimension	850±50μm
	Material	PVC
	Color	Blue\Orange\Green\Brown\ Grey\White\Red\Black\ Yellow\Violet\Pink\Aqua
Strength Member	Dimension	1.0mm
Strength Member	Material	FRP
Outer Jacket	Dimension	13.5±0.5mm
	Material	LSZH
	Color	Black /White

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
