| Prod Model: |
GJFDBV |
| Color: |
Customized |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
CCC |
| Brand: |
Lulink or OEM |
Product Description
Description:
This specification covers a series of cables with 4 to 12 fibers.
Application:
l For premises wiring
l Indoor
l Internal wiring

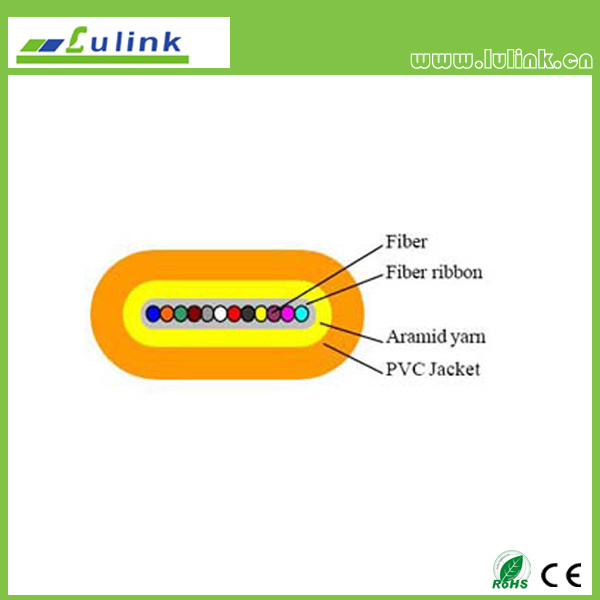

Construction Data:
| Fiber color | 1. Blue 2. Orange 3. Green 4. Brown 5. Grey 6. White 7. Red 8. Black 9 Yellow 10. Violet 11. Pink 12. Aqual |
| Core reinforce | Aramid yarn |
| Out jacket material | PVC |
Technical Data-Physical:
| Fiber count | 4 | 6 | 8 | 12 |
| Cable diameter (mm) | 3.7x2.5 | 4.2x2.5 | 4.7x2.5 | 5.2x2.5 |
| Cable weight (kg/km) | 4.7 | 5.1 | 5.5 | 5.9 |
| Temperature rating | 0 ~+60ºC |
| Operation storage | -5~+60ºC |
Technical Data-Mechanical:
| Max. loading (IEC794-1) Installation operation | 150N
80N |
Min. bend radius (IEC794-1)
Long term (mm)
Short term (mm) | 60
30 |
| Crush resistance (IEC794-1) | 1000N/100mm |
Technical Data-Transmission:
| Fiber type | Single-mode (1310/1550nm) | Multi-mode (50/125um)
(850/1300nm) | Multi-mode
(62.5/125um)
(850/1300nm) |
| Attenuation | Typical | 0.36/0.22 | 3.0/1.0 | 3.0/1.0 |
| Maximum | 0.5/0.4 | 3.5/1.5 | 3.5/1.5 |
| Zero dispersion slope | <0.093ps/km•nm2 | - | - |
| Dispersion (1285~1340nm) | -3.5~ 3.5ps/ (nm•km) | - | - |
| Mode field diameter | 9.3+/-0.4um | - | - |
| Cutoff wavelength cable | <1270nm | - | - |
| Bandwidth | @850nm | - | ≥200MHz•km | ≥160MHz•km |
| @1300nm | - | ≥400MHz•km | ≥200MHz•km |
| Cladding diameter (um) | 125+/-1.0 | 125+/-1.0 | 125+/-1.0 |
