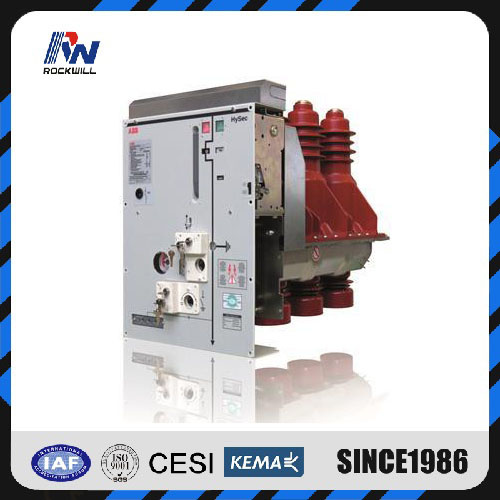

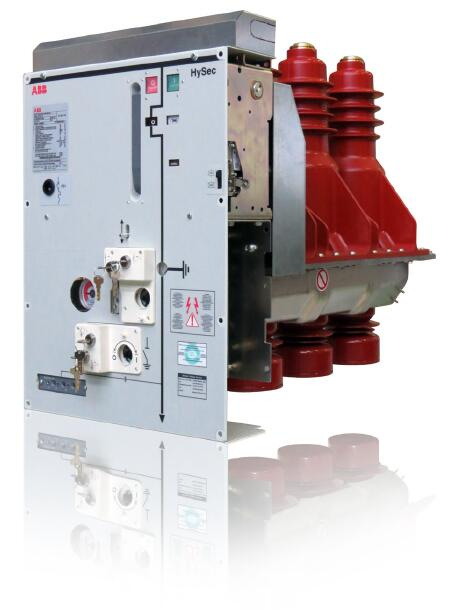

HySec
MV multi-function apparatus for increased safety and compactness

HySec is the Rockwill multi-function apparatus integrating the features of:

Vacuum circuit breaker
SF6 line disconnector
SF6 earthing switch.

Application

HySec is the optimal solution for air insulated metal enclosed panels, especially where space limitation is a concern (e.g. Compact Substations,...).

HySec can be used for both incomer and feeder units, including capacitor banks (C2 class).

Increase service safety

HySec allows to build panels with Metallic Partition class (PM), increasing personnel safety during maintenace activities.

Long lasting

HySec is a sealed for life solution and can perform up to 10,000 close-open operations thanks to its robust mechanical design.

Compactness

Thanks to its integrated functions, HySec can reduce the panel footprint by more than 30% with respect to standard solutions. In fact, HySec can fit panels 500 mm wide.
Moreover, HySec can allow direct cable earthing, thus avoiding a dedicated panel.

Fast and easy assembly

Thanks to HySec, only one apparatus needs to be mounted, wired and connected inside the panel. Moreover, mechanical interlocks are embedded and tested by the factory.
HySec reduces switchgear material by 15% and assembly time by 10%.

Description
Electrical characteristics
Rated voltage	kV		12			17.5			24
Insulation voltage	kV		12			17.5			24
Power frequency withstand voltage (50/60 Hz, 1 min)	kV		28			38			50
Lightning impulse withstand voltage (BIL 1.2/50 µs)	kV		75			95			125
Rated frequency	Hz					50/60
Rated current	A					630
Short-time withstand current (3s)	kA	12.5	16	21	12.5	16	21	12.5	16	21
Performance of breaking part (IEC 62271-100)
Breaking capacity
- Short-circuit current	kA	12.5	16	21	12.5	16	21	12.5	16	21
- No-load transformers	A		6.3			6.3			6.3
- No-load lines	A		10			10			10
- No-load cables	A		16			16			16
- Capacitive currents	A		400			400			400
Making capacity	kAp	32.5	41.5	54.5	32.5	41.5	54.5	32.5	41.5	54.5
Operating sequence				O - 0.3s - CO - 15s - CO
Opening time	ms			40 … 55
Arcing time	ms			10 …15
Total break-time	ms			50 … 70
Closing time	ms			40 … 55
Electrical life	class			E2
Mechanical life	class			M2 - 10,000 mechanical operations
Capacitive current breaking class	class			C2
Line disconnector performance (IEC 62271-102)
Electrical life	class			E0
Mechanical life	class			M0 - 1,000 mechanical operations
Earthing switch performance (IEC 62271-102)
Electrical life	class			E2
Mechanical life	class			M0 - 1,000 mechanical operations
Earthing switch making capacity	kAp	32.5	41.5	54.5 32.5 41.5 54.5 32.5					41.5	54.5

Other characteristics
Center-distance between phases	mm	230
Operating temperature	°C	(*) -15 …+40
Maximum installation altitude	masl	3000
SF6 absolute pressure	kPa	142
Mass of SF6	g	213
Internal volume of SF6	l	25

(*) For service temperature -25 °C and storage temperature -40 °C please contact Rockwill.
